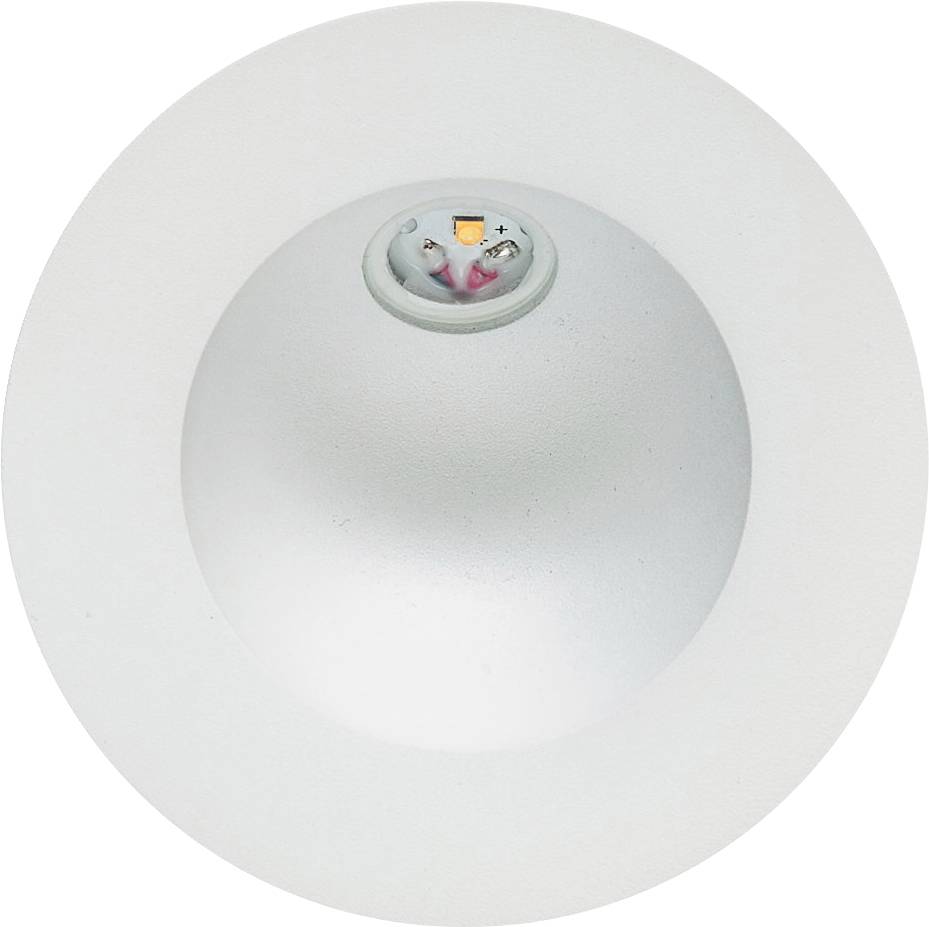

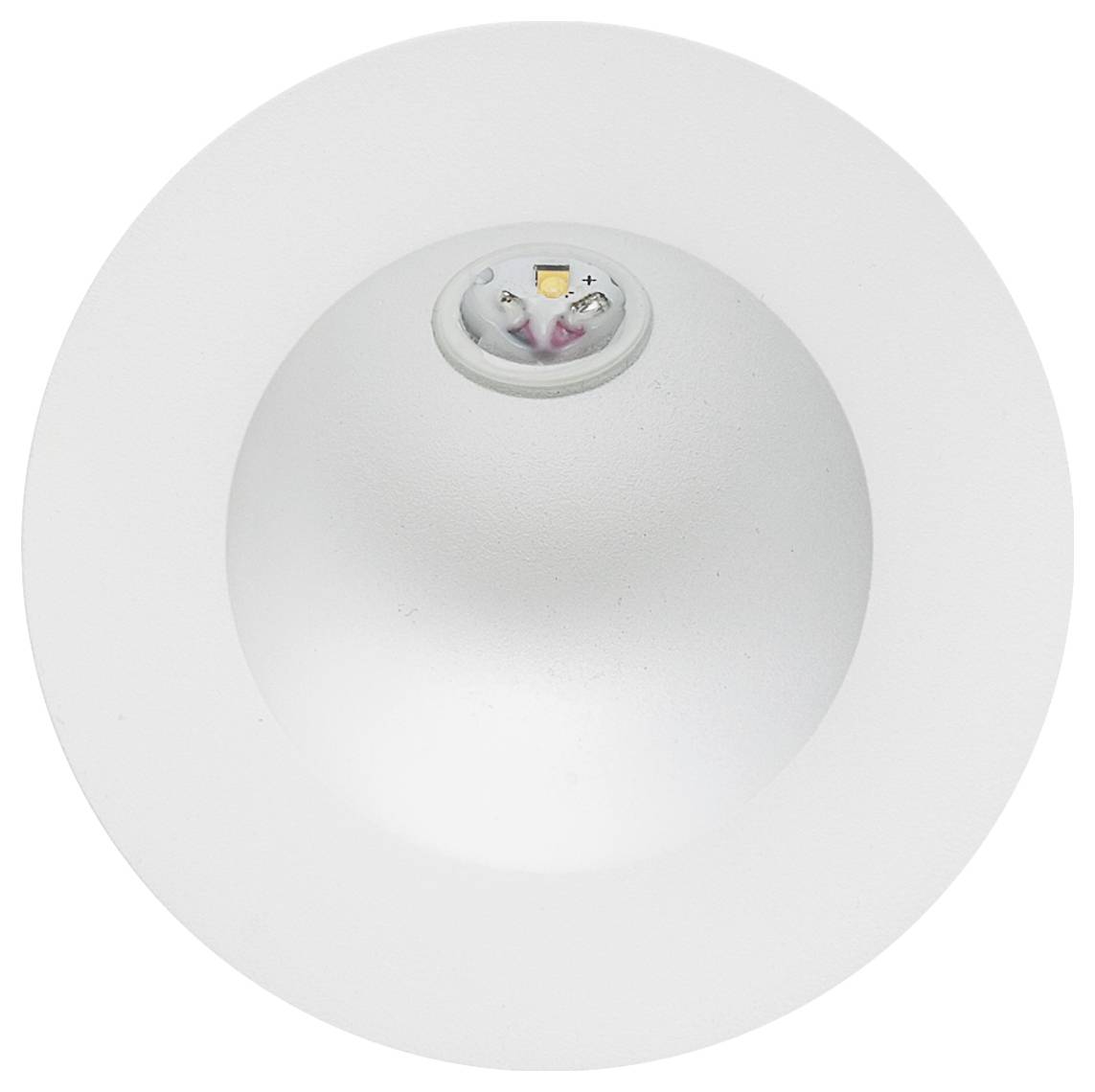

EVN P20302 P20302 LED recessed wall light LED (monochrome) Built-in LED 2 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Power-LED WALL BUILD-IN LAMP, IP54
- Power= 2 W Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed wall light
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
2 W
2 W
3000 K
- Colour
Warm white
- Protection screen
Clear
- Radiation angle
80°
- Light features
Recess mount option

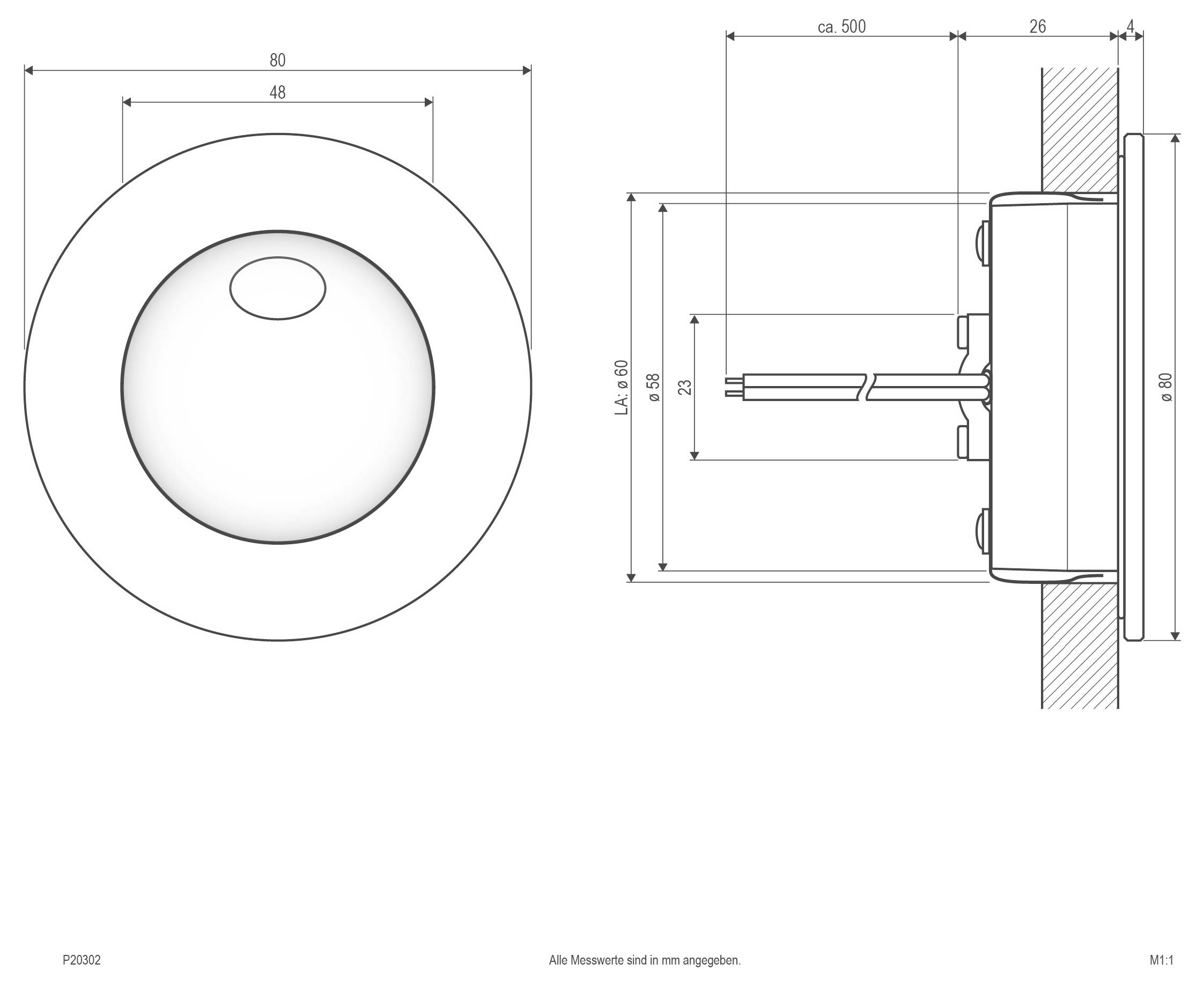

- Recess diameter
60 mm
- Recess depth
30 mm
- Outside Ø
80 mm
IP54
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
30 mm
- Rated luminous flux
112 lm
- Number of pins
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483981 EVN P20302 P20302 LED recessed wall light LED (monochrome) Built-in LED 2 W White
User & Safety Instructions
User & Safety Instructions 2483981 EVN P20302 P20302 LED recessed wall light LED (monochrome) Built-in LED 2 W White
Description
The recessed LED light is designed in such a way that it can be mounted either in the wall or alternatively in switch boxes. The color of the lamp is RAL9003. Due to its design and power, the lamp is perfectly suitable as an orientation lamp. Since the lamp is operated via 700mA, the lights must be switched in series. The lamp has a 0.5m long connection cable.
This text is machine translated.
This text is machine translated.
