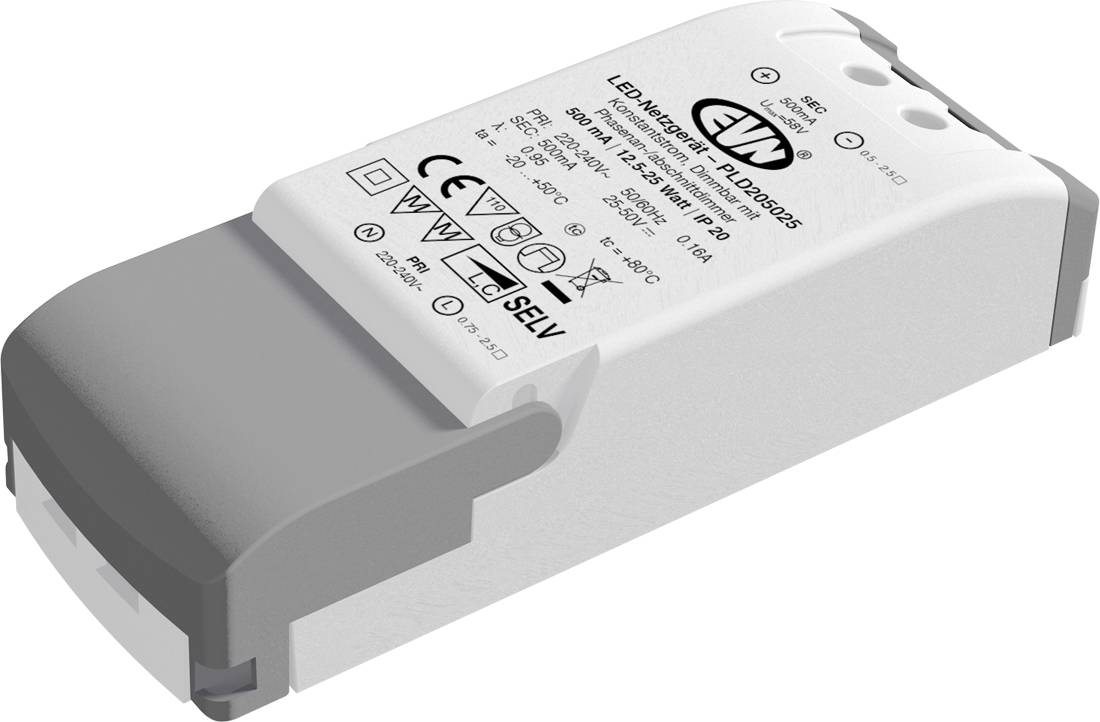

EVN PLD205025 LED driver Constant current 25 W 500 mA 0 V Approved for use on furniture 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
500mA LED power supply
- Constant current
- 0 V
- 500 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim

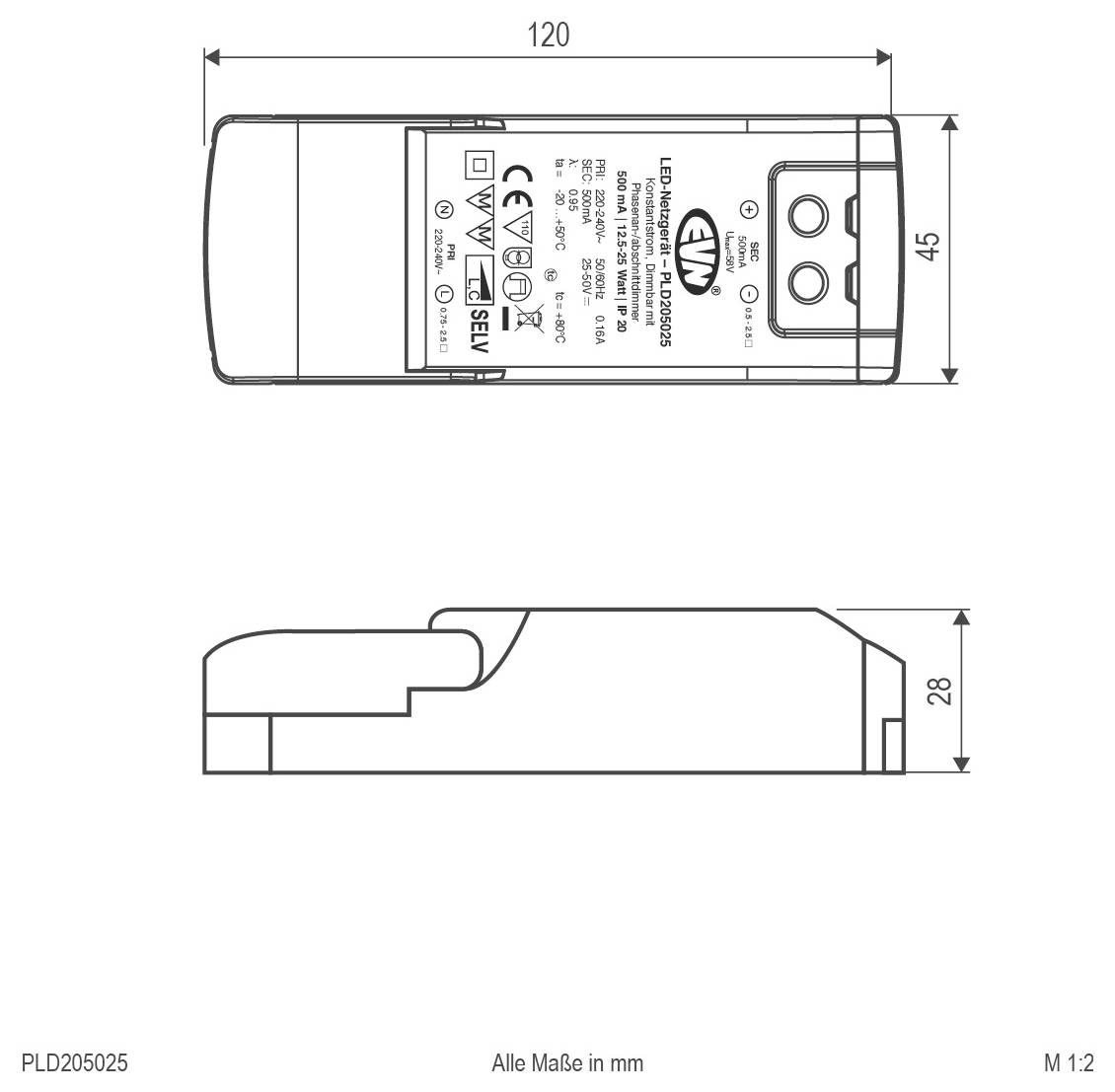

(L x W x H) 120 x 45 x 28 mm
- Output voltage (max.)
0 V
- Output voltage (min.)
0 V
- Test mark
MM-Kennzeichnung
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Protection class
II
- LED driver features
Approved for use on furniture
IP20
- Connection
Open end cable
- Max. power
25 W
- Output current (min.)
500 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
0.11 kg
- Power (min.)
12.5 W
- Power range
12.5 up to 25 W
- Width
45 mm
- Height
28 mm
- Length
120 mm
- Max. temperature
80 °C
- Min. temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484152 EVN PLD205025 LED driver Constant current 25 W 500 mA 0 V Approved for use on furniture 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484152 EVN PLD205025 LED driver Constant current 25 W 500 mA 0 V Approved for use on furniture 1 pc(s)
Description
The short-circuit proof safety transformer can be used in furniture construction without any problem, as THE MM marking is given. The connection on the primary and secondary sides is made by screw terminals, which are suitable for cables from 0,75mm² - 2,5mm². Technical data: Supply voltage 220-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor 0.95.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
