EVN PLK6514 LED driver Constant current 4 W 350 mA not dimmable 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
350mA LED power supply
- Constant current
- 350 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Operating current
350 mA
- Dim

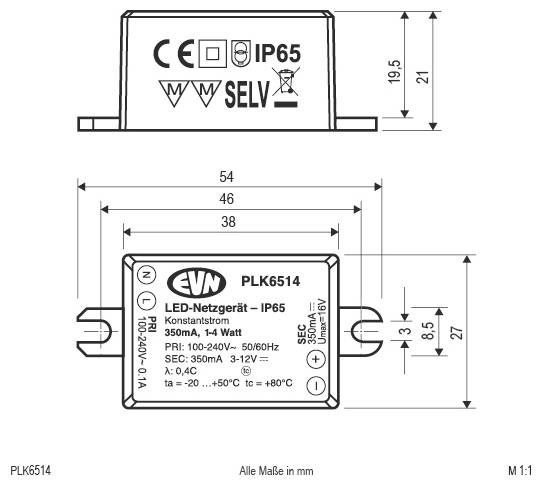

(L x W x H) 54 x 27 x 21 mm
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
II
- LED driver features
not dimmable
IP65
- Connection
Open end cable
- Max. power
4 W
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
0.05
- Power (min.)
1 W
- Power range
1 up to 4 W
- Width
27 mm
- Height
21 mm
- Length
54 mm
- Max. temperature
80 °C
- Min. temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484168 EVN PLK6514 LED driver Constant current 4 W 350 mA not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484168 EVN PLK6514 LED driver Constant current 4 W 350 mA not dimmable 1 pc(s)
Description

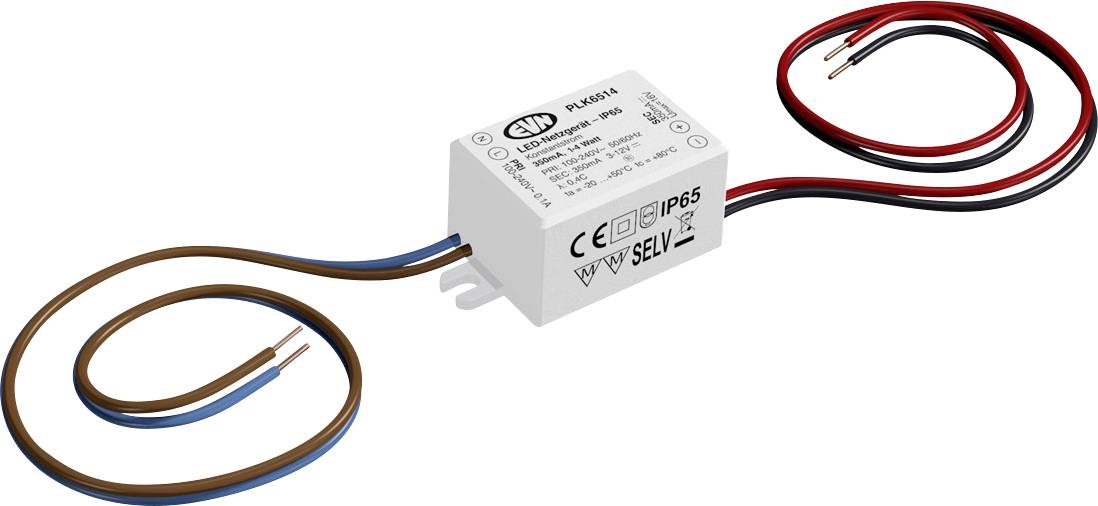

The LED power supply unit can be installed perfectly in switch boxes due to its small design. The connecting cables have a length of 17cm on the primary side and 17cm on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor 0.40.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
