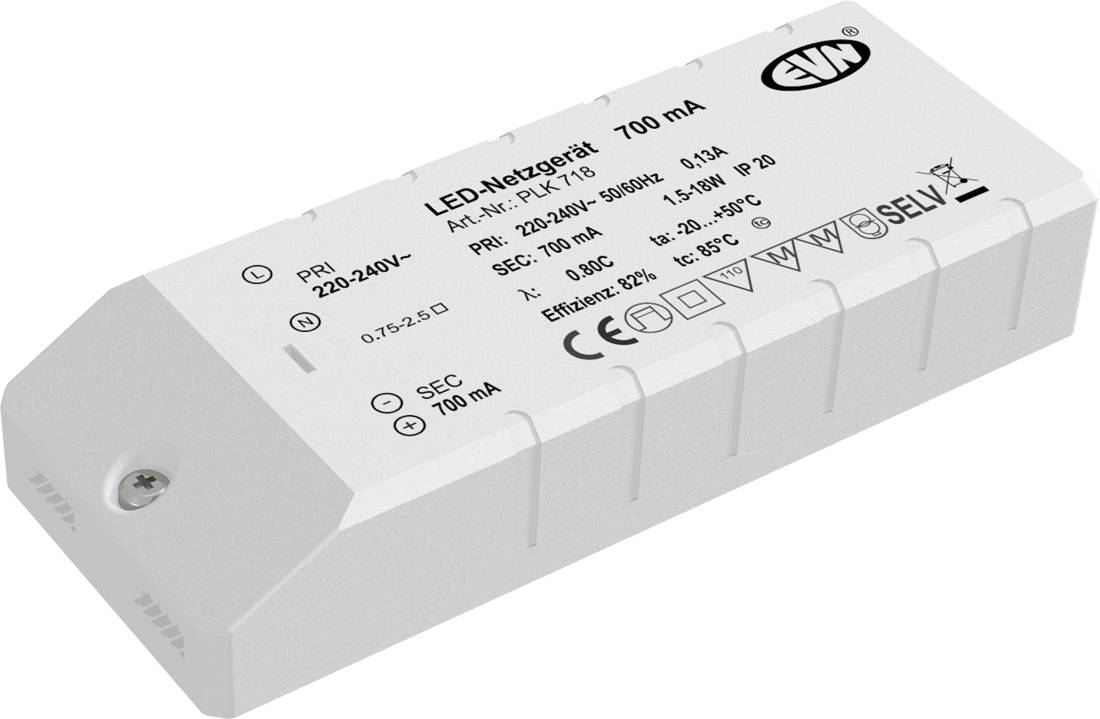

EVN PLK718 LED driver Constant current 18 W 700 mA not dimmable, Approved for use on furniture 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PLK718
- Constant current
- 700 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Operating current
700 mA
- Dim

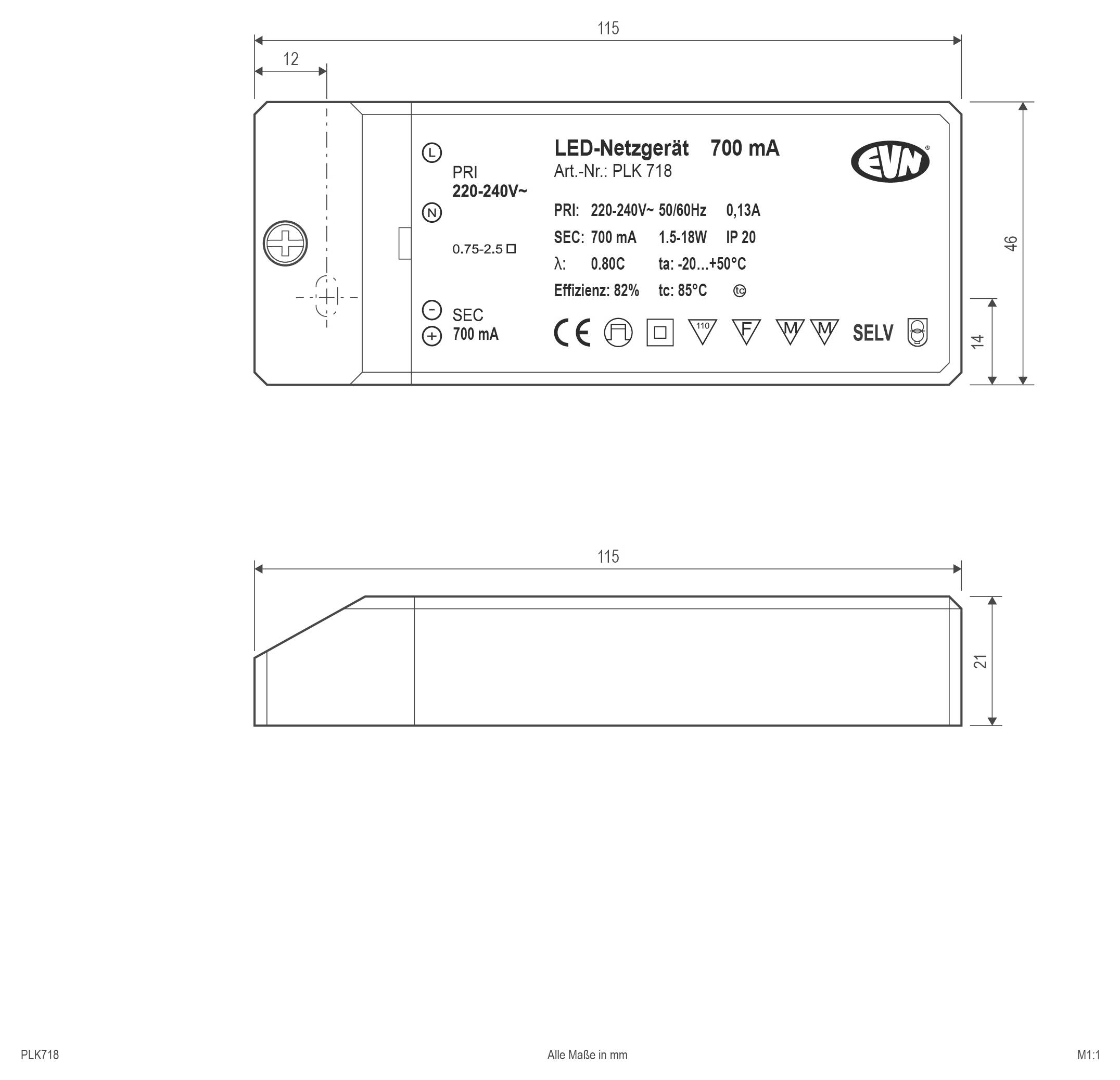

(L x W x H) 115 x 45 x 21 mm
- Test mark
MM-Kennzeichnung
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
not dimmable
Approved for use on furniture
IP20
- Connection
Open end cable
- Max. power
18 W
- Output current (min.)
700 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
0.09 kg
- Power (min.)
1.5 W
- Power range
1.5 up to 18 W
- Width
45 mm
- Height
21 mm
- Length
115 mm
- Max. temperature
85 °C
- Min. temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484171 EVN PLK718 LED driver Constant current 18 W 700 mA not dimmable, Approved for use on furniture 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484171 EVN PLK718 LED driver Constant current 18 W 700 mA not dimmable, Approved for use on furniture 1 pc(s)
Description
The LED power supply unit can be used in furniture construction without any problem, since THE MM marking is given. The connection on the primary and secondary sides is made by screw terminals, which are suitable for cables from 0,75mm² - 2,5mm². Technical data: Supply voltage 220-240V/AC, ta: -20°C - 50°C, tc: 85°C, power factor 0.80.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
