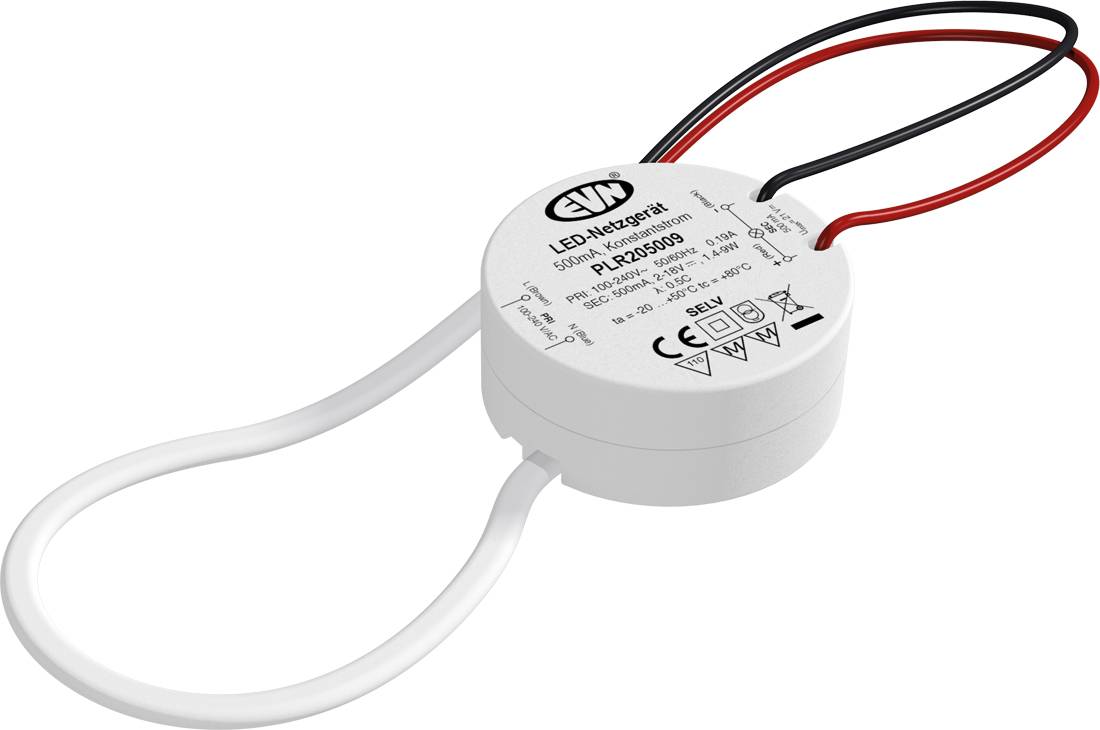

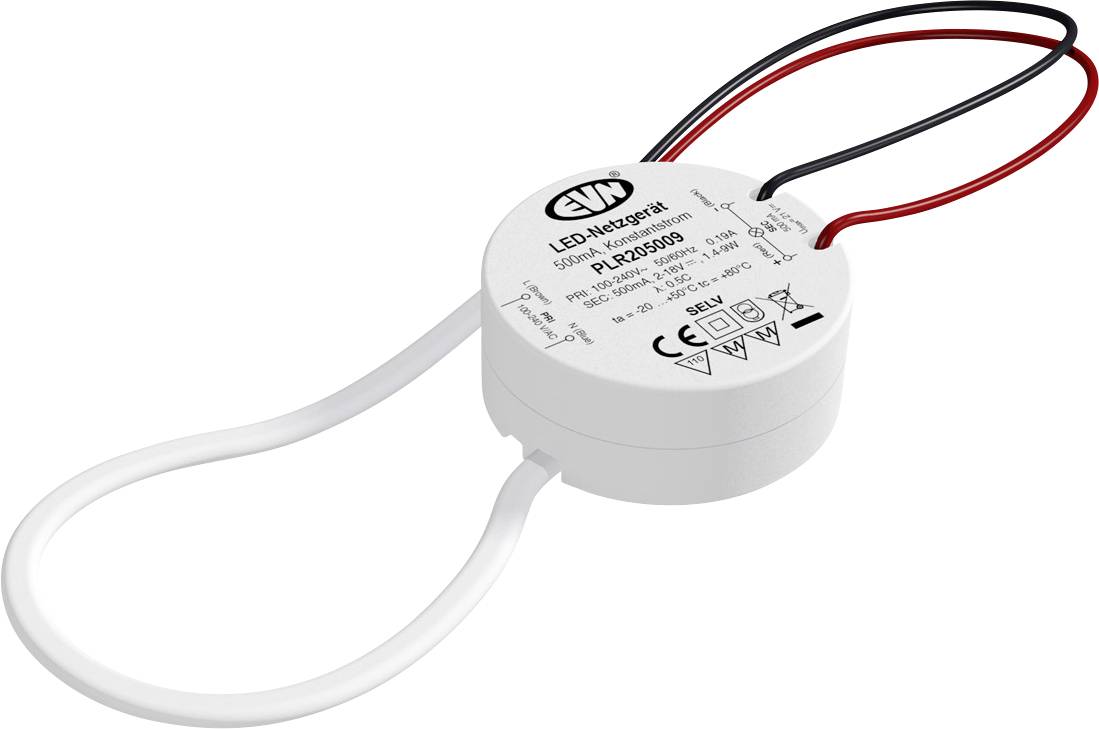

EVN PLR205009 LED driver Constant current 500 mA Approved for use on furniture 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
500mA LED power supply
- Constant current
- 500 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Test mark
MM-Kennzeichnung
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Protection class
II
- LED driver features
Approved for use on furniture
IP20
- Connection
Open end cable
- Output current (min.)
500 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2484174 EVN PLR205009 LED driver Constant current 500 mA Approved for use on furniture 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484174 EVN PLR205009 LED driver Constant current 500 mA Approved for use on furniture 1 pc(s)
Description

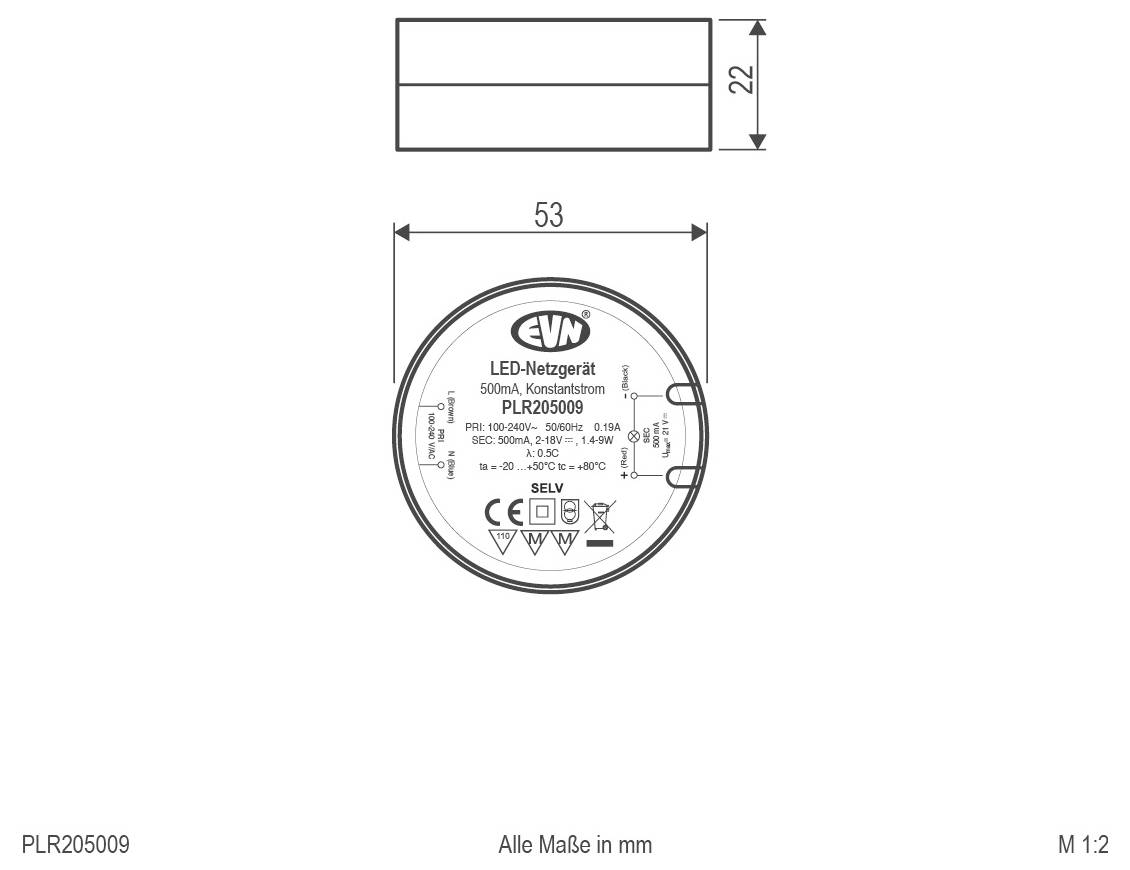

The short-circuit-proof safety transformer can be mounted perfectly in switch boxes due to its small design, but can also be used in furniture construction, as THE MM marking is given. The connecting cables have a length of 15cm on the primary side and 16cm on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor 0.50.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
