Name: EVN R40250125 R40250125 LED ceiling light LED (monochrome) 25 W White
Brand: EVN
SKU: 2484182

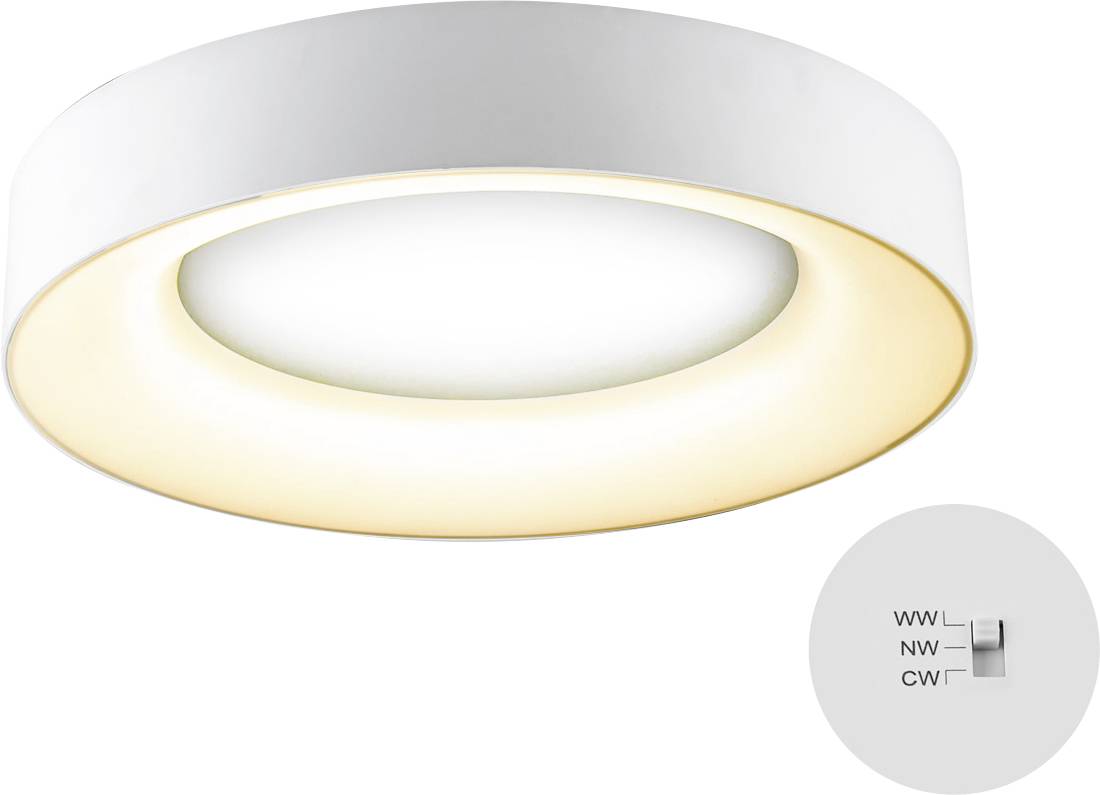

Round flush-mount ceiling light with a warm white glow and a switch labeled WW, WL, and CW for light mode selection.

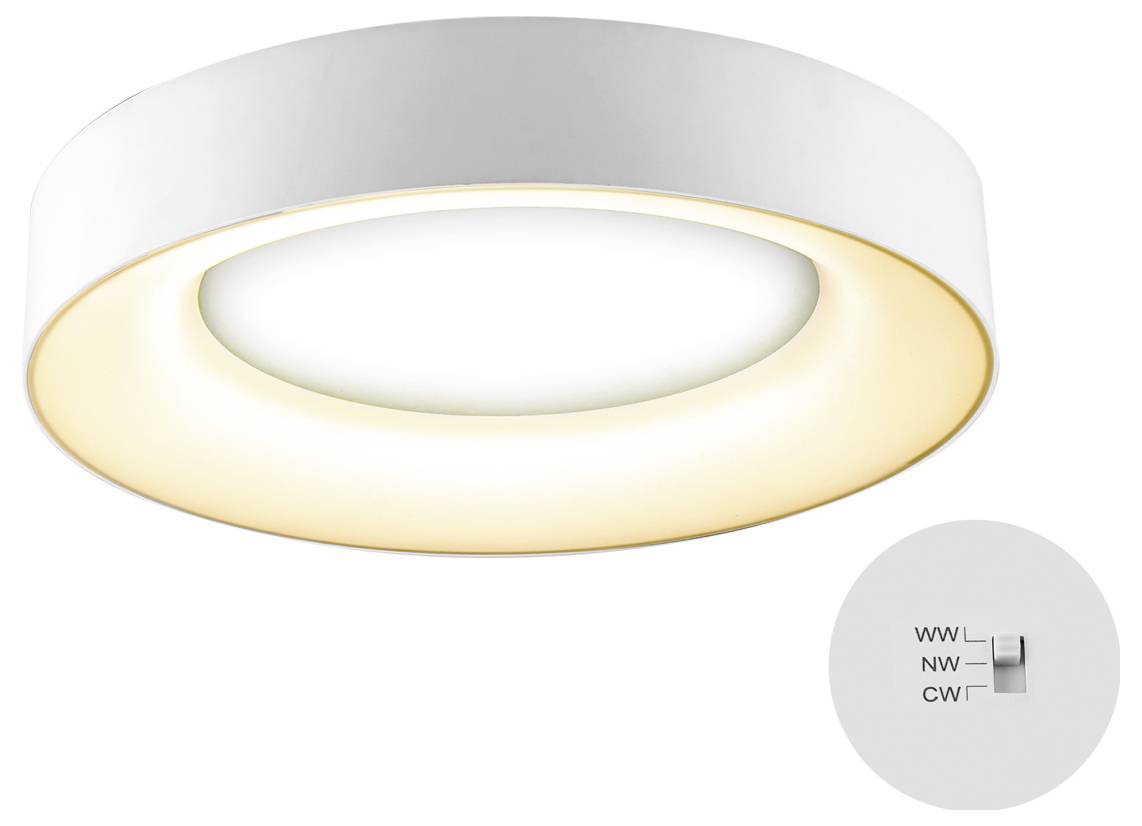

Modern round ceiling light fixture with glowing warm-white ring and a small inset showing switch settings labeled WW, NW, and CW.

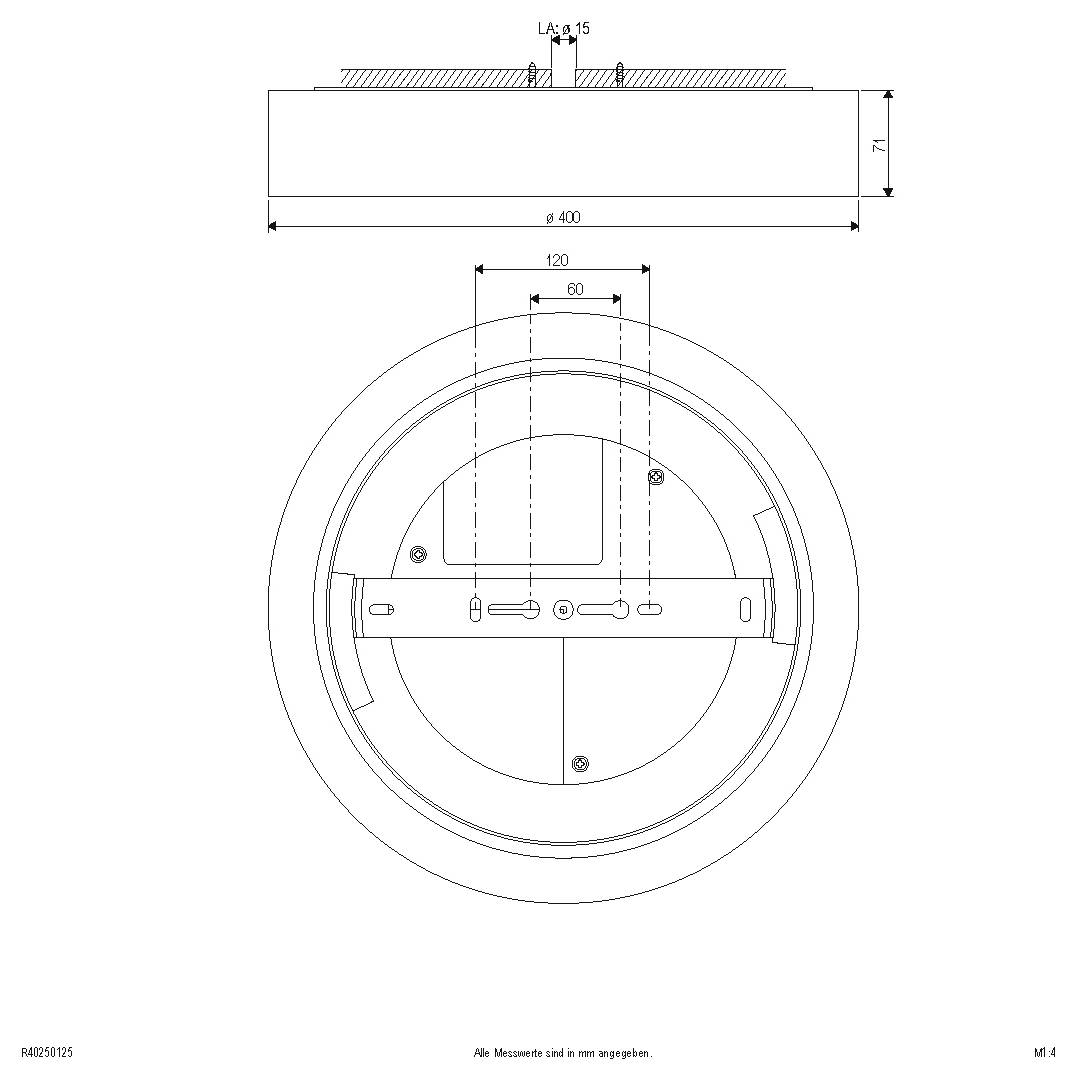

Technical engineering drawing of a circular metal fixture, showing top and front views with dimensions and mounting details.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED mounted light with adjustable color temperature

Power= 25 W Total luminous flux= 2350 lm Colour temperature= 5700 K Warm white to daylight white

Technical specifications

Dim: (Ø x H) 400 mm x 71 mm

Operating voltage: 200 V
240 V

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 71 mm

Rating per bulb: 25 W

: 25 W

(Ø): 400 mm

Light features: Suitable for wall mounting

Protection class: II

: IP54
IK06

Factory colour: White

Material: Plastic

: n.rel.

Colour: Warm white to daylight white

Light bulb included: Yes

: 5700 K

Colour temperature (max.): 5700 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 5700 K

Total luminous flux: 2350 lm

: 2350 lm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Power

Factory colour

Dim

Bulb type

Light features

Product type

EVN AL20100102 AL20100102 LED ceiling light LED (monochrome) 10 W White

Item no:2483542

Unavailable

Conrad Electronic

10 W

White

(Ø x L) 80 mm x 130 mm

LED (monochrome)

Dimmable

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20100902 AL20100902 LED ceiling light LED (monochrome) 10 W Black

Item no:2483543

Unavailable

Conrad Electronic

10 W

Black

(Ø x L) 80 mm x 130 mm

LED (monochrome)

Dimmable

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20180902 AL20180902 LED ceiling light LED (monochrome) 18 W Black

Item no:2483545

Unavailable

Conrad Electronic

18 W

Black

(Ø x L) 80 mm x 160 mm

LED (monochrome)

Dimmable

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54100102 AL54100102 LED ceiling light LED (monochrome) Built-in LED 10 W White

Item no:2483546

Unavailable

Conrad Electronic

10 W

White

(Ø x H) 70 mm x 100 mm

LED (monochrome)

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54101502 AL54101502 LED ceiling light LED (monochrome) Built-in LED 10 W Anthracite

Item no:2483547

Unavailable

Conrad Electronic

10 W

Anthracite

(Ø x H) 70 mm x 100 mm

LED (monochrome)

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54130125 ALG54130125 LED ceiling light LED (monochrome) 13 W White

Item no:2483548

Unavailable

Conrad Electronic

13 W

White

(Ø x H) 213 mm x 129 mm

LED (monochrome)

Incl. switch

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54131525 ALG54131525 LED ceiling light LED (monochrome) 13 W Anthracite

Item no:2483549

Unavailable

Conrad Electronic

13 W

Anthracite

(Ø x H) 213 mm x 129 mm

LED (monochrome)

Colour-changing

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54250125 ALG54250125 LED ceiling light LED (monochrome) 25 W White

Item no:2483550

Unavailable

Conrad Electronic

25 W

White

(Ø x L) 213 mm x 129 mm

LED (monochrome)

Incl. switch

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54251525 ALG54251525 LED ceiling light LED (monochrome) 25 W Anthracite

Item no:2483551

Unavailable

Conrad Electronic

25 W

Anthracite

(Ø x L) 213 mm x 129 mm

LED (monochrome)

Colour-changing

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALQ250102 ALQ250102 LED ceiling light LED (monochrome) 12 W White

Item no:2483552

Unavailable

Conrad Electronic

12 W

White

(L x W x H) 250 x 250 x 33 mm

LED (monochrome)

Suitable for wall mounting

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2484182 EVN R40250125 R40250125 LED ceiling light LED (monochrome) 25 W White

User & Safety Instructions

User & Safety Instructions 2484182 EVN R40250125 R40250125 LED ceiling light LED (monochrome) 25 W White

Description

LED mounted light for different application areas, such as covering area, but also effective lighting in hall, living room, office and much more. Due to the given protection class and the UV resistance, the lamp can also be used in outdoor areas without any problem. The switch on the rear side can be used to set one of three possible color temperatures. The possible color temperatures and resulting lumen are: 3000K (1950lm), 4000K (2350lm) and 5700K (2150lm). Through the large area of light emission, a very homogeneous illumination always arises.
