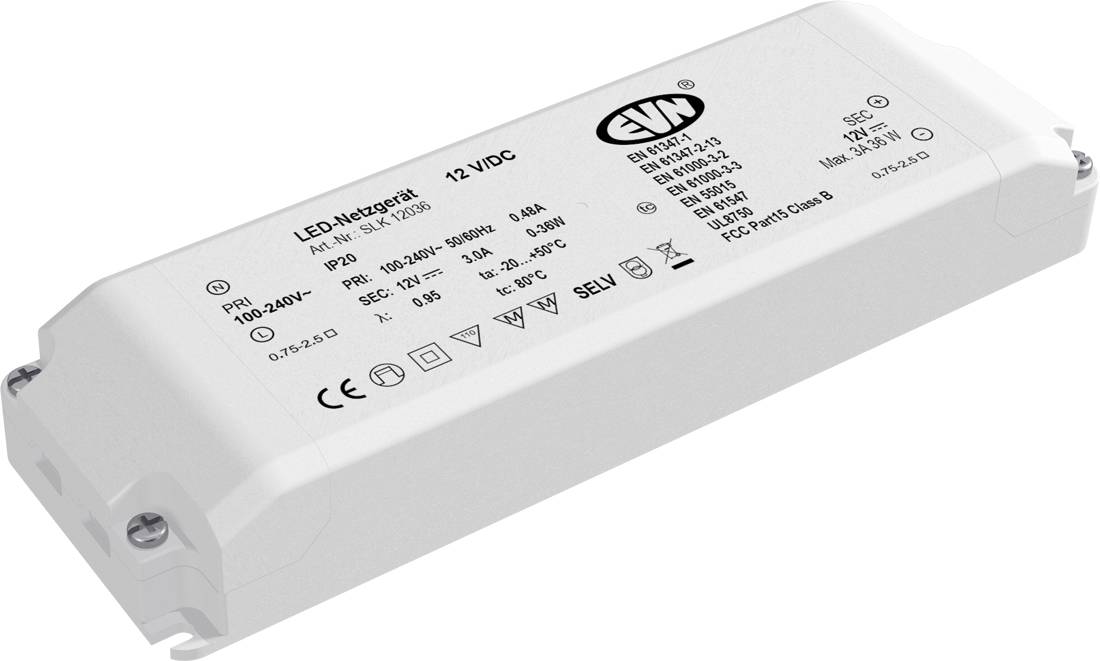

EVN SLK12036 LED transformer Constant voltage 36 W 12 V Approved for use on furniture 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLK12036
- Constant voltage
- 12 V
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 166 x 52 x 24 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V
- Test mark
MM-Kennzeichnung
- Protection class
II
- LED driver features
Approved for use on furniture
IP20
- Connection
Open end cable
- Max. power
36 W
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
0.21 kg
- Power (min.)
0.1 W
- Power range
0.1 up to 36 W
- Width
52 mm
- Height
24 mm
- Length
166 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2484264 EVN SLK12036 LED transformer Constant voltage 36 W 12 V Approved for use on furniture 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484264 EVN SLK12036 LED transformer Constant voltage 36 W 12 V Approved for use on furniture 1 pc(s)
Description
The short-circuit proof safety transformer can be used in furniture construction without any problem, as THE MM marking is given. The connection on the primary and secondary sides is made by screw terminals, which are suitable for cables from 0,75mm² - 2,5mm². Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor: 0.95.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
