Exsys EX-1095 19 inch Multicolour
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EXSYS PCI-Express expansion card interface card / adapter
- PCI Express slot adapter
- Complies with PCI Express Base
- PCI Express advanced error reporting
- For all expansion casings
- LowProfile bracket included
Technical specifications
- Data transfer rate 250 Mbit/s.
- Suitable for server rack cabinet (inch)
19 inch
- Dim
(W x D) 45 mm x 120 mm
- Content
1 pc(s)
- Factory colour
Multicolour
- Width
45 mm
- Height
0 mm
- Depth
120 mm
- Type A
PCI Express
- Transfer type
Wireless
- Weight
500 g
- UKCA
not relevant
- Operating temperature (T-T)
0 - 55 °C
- Operating temperature (T-T)
32 - 131 °F
- Operating relative humidity (H-H)
5 - 90 %
Documents & Downloads
Datasheet
Datasheet 3796828 Exsys EX-1095 19 inch Multicolour
User & Safety Instructions
User & Safety Instructions 3796828 Exsys EX-1095 19 inch Multicolour
Description
The EX-1095 is a PCI-Express adapter for the expansion products EX-1030 (housing with 4xPCI-slot board), EX-1035 (4xPCI-slot
Board without housing), EX-1040 (housing each with 2 x PCI and PCI-Express-Slot board) and EX-1045 (each 2 x PCI and PCI-Express-Slot board without housing). With the EX-1095 a LowProfile bracket is also included, so that the card can be installed in small housings, which have a maximum height of 8cm. Caution! The EX-1095 is only available as an option for the above EXSYS products and must be ordered separately.
- PCI Express slot adapter
- PCI Express Base compliant, Specification: Revision 1.0a
- PCI Express Advanced Error Reporting, Supports Capability Including ECRC
- Supports extended virtual channel (VC), supports active state link Power management
- Supports Wake Event and Beacon
This text is machine translated.
Board without housing), EX-1040 (housing each with 2 x PCI and PCI-Express-Slot board) and EX-1045 (each 2 x PCI and PCI-Express-Slot board without housing). With the EX-1095 a LowProfile bracket is also included, so that the card can be installed in small housings, which have a maximum height of 8cm. Caution! The EX-1095 is only available as an option for the above EXSYS products and must be ordered separately.
- PCI Express slot adapter
- PCI Express Base compliant, Specification: Revision 1.0a
- PCI Express Advanced Error Reporting, Supports Capability Including ECRC
- Supports extended virtual channel (VC), supports active state link Power management
- Supports Wake Event and Beacon
This text is machine translated.
Scope of delivery

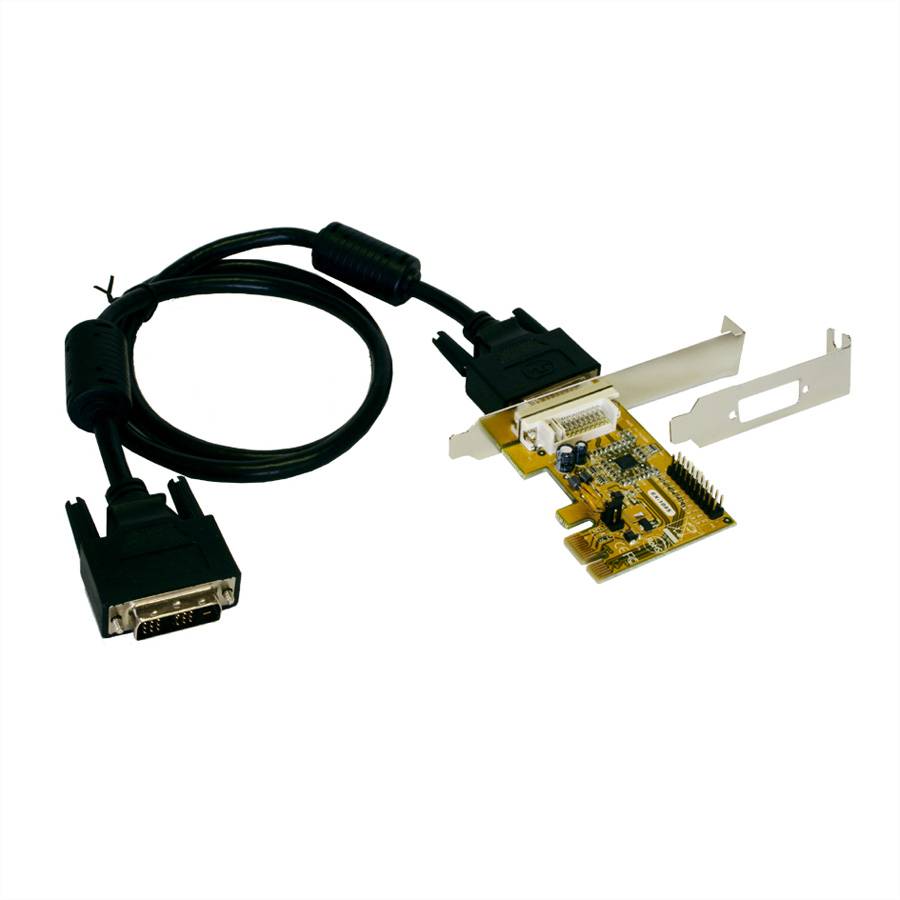

- EX-1095, DVI-cable, LowProfile clip, manual
