Highlights & Details

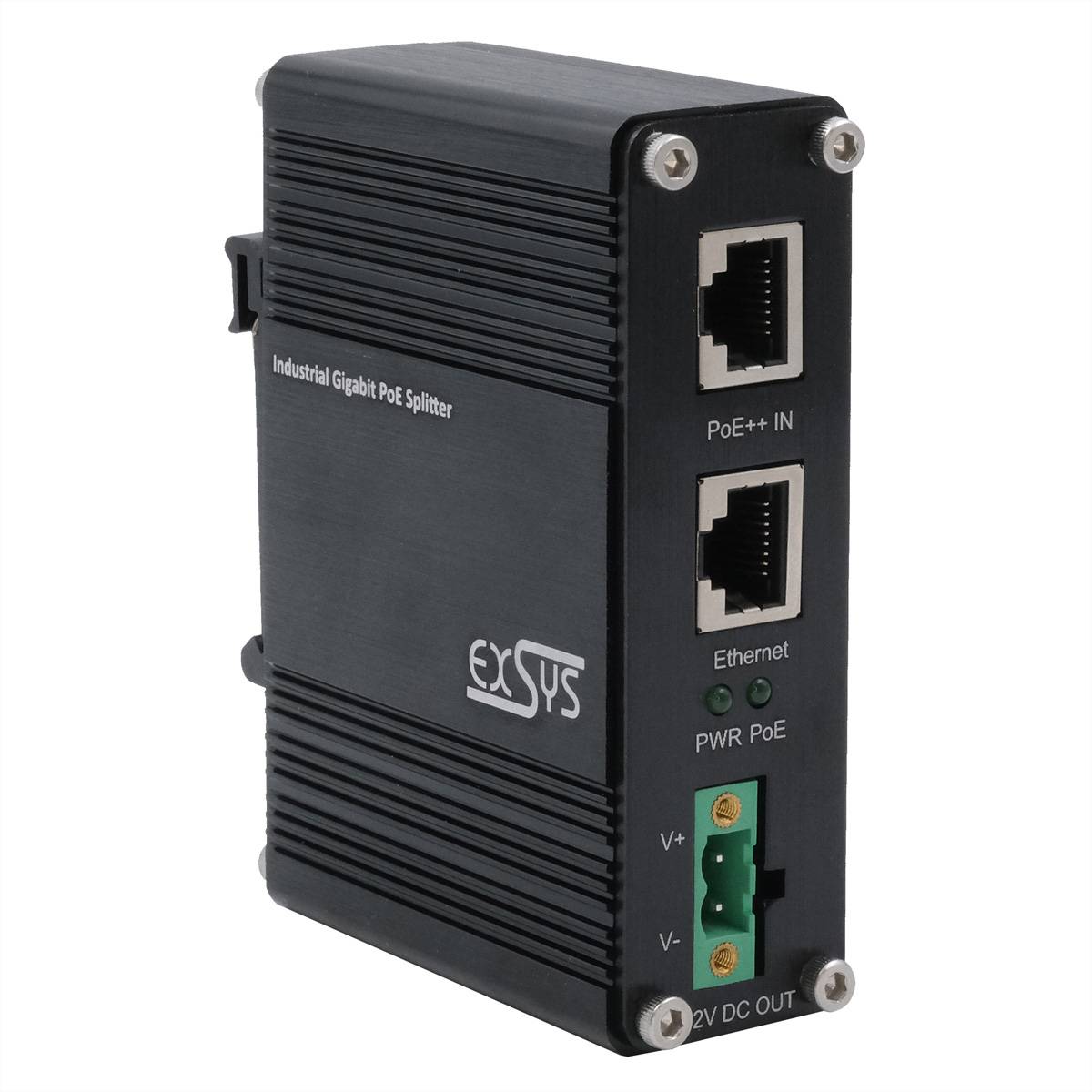

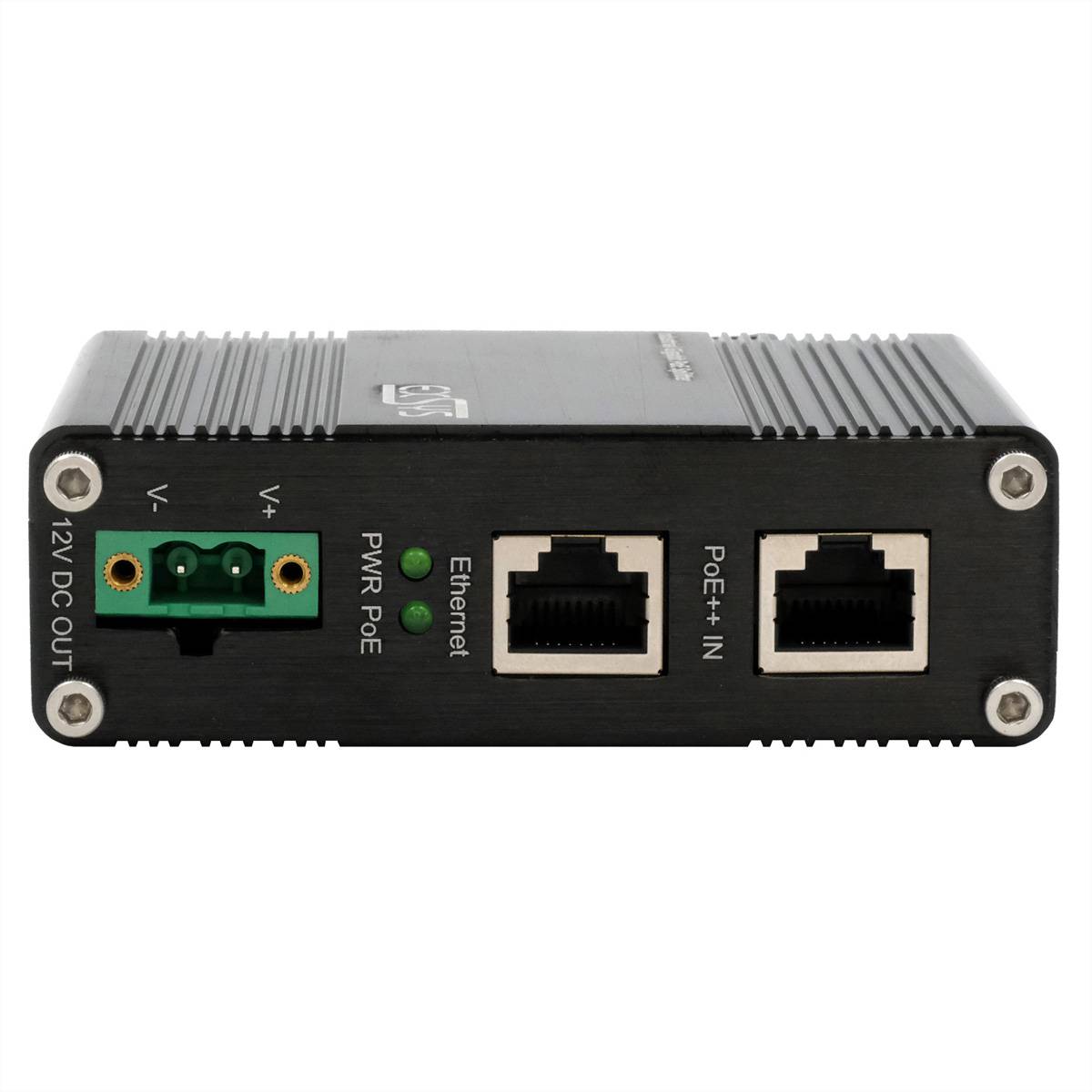

PoE+ gigabit splitter 12Vdc/36W, -40°C to +80°C..

Separates data and power supply of a PoE-signal
Reduces system cabling
Plug and Play, no configuration
With 6 bits. DIN-rail kit and wall mounting bracket
Operating temperature range -40°C to +80°C.

Technical specifications

Product group: Industrial Networking
Product type: PoE splitter
Colour, black
Gigabit Ethernet network standard
LAN (Mbps) 10/100/1000
Gigabit Ethernet ports RJ-45: 1
Power over Ethernet (PoE): Yes
Number of PoE ports 1

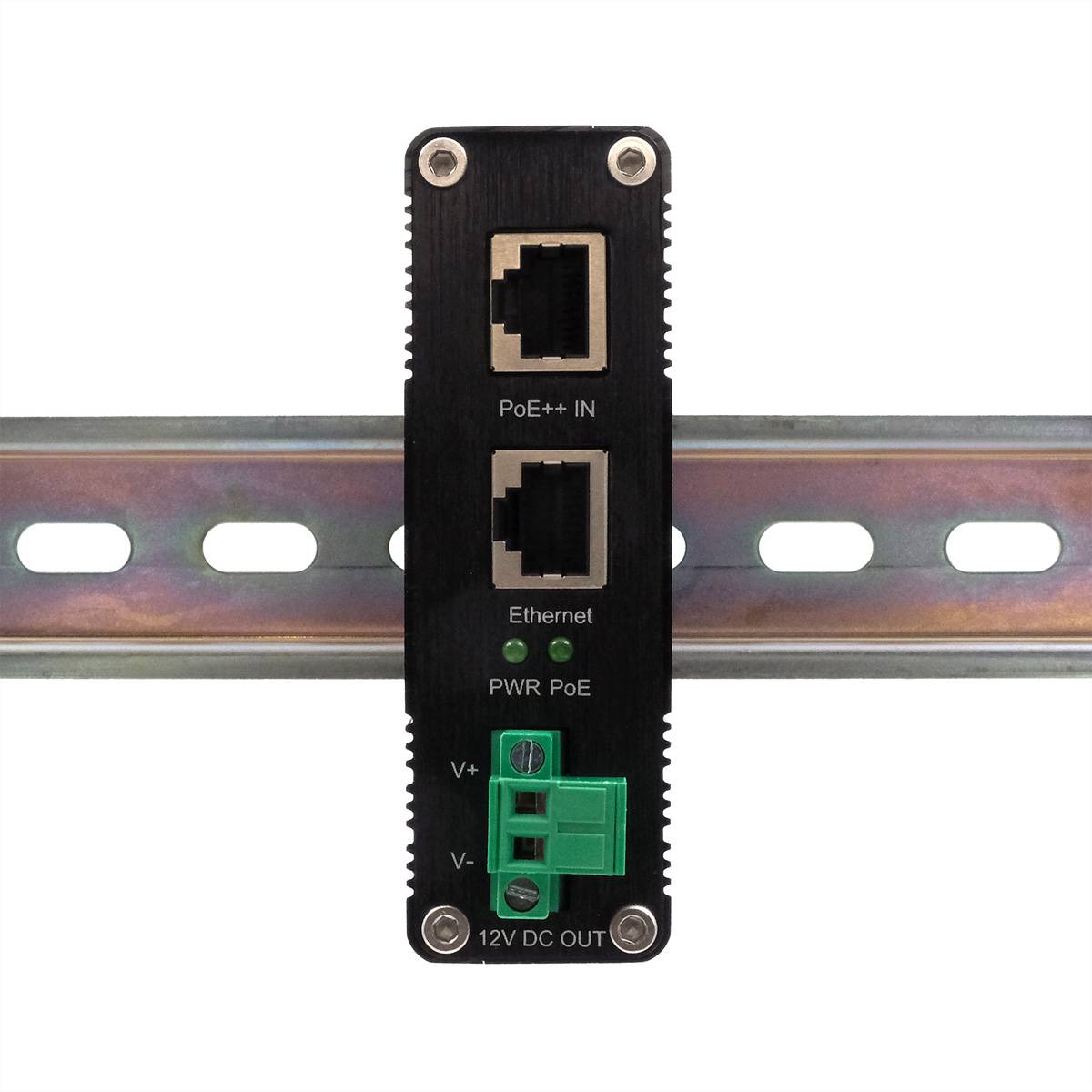

Design: Top hat rail
Mounting bracket: Included
Dimensions (HxWxD) 104 x 82 x 32 mm
Min. Operating temperature -40 °C
Max. operating temperature: 80 °C
Height: 95 mm
Width 67 mm
Depth: 28 mm
Weighs 3.7 kg.
Packaging height 70 mm
Package width 140 mm
Packaging depth 190 mm
Package weight: 0,396 kg
Gross weight: 0.396

Product type: PoE splitter

Weight: 0.396

Type: EXSYS EX-60326 PoE++ Splitter

Factory colour: Black

Cable length: 0 mm

Version: Connection cable

Cable use: Networks

Connection type: Series

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796963 EXSYS EX-60326 PoE + + splitter

User & Safety Instructions

User & Safety Instructions 3796963 EXSYS EX-60326 PoE + + splitter

Description

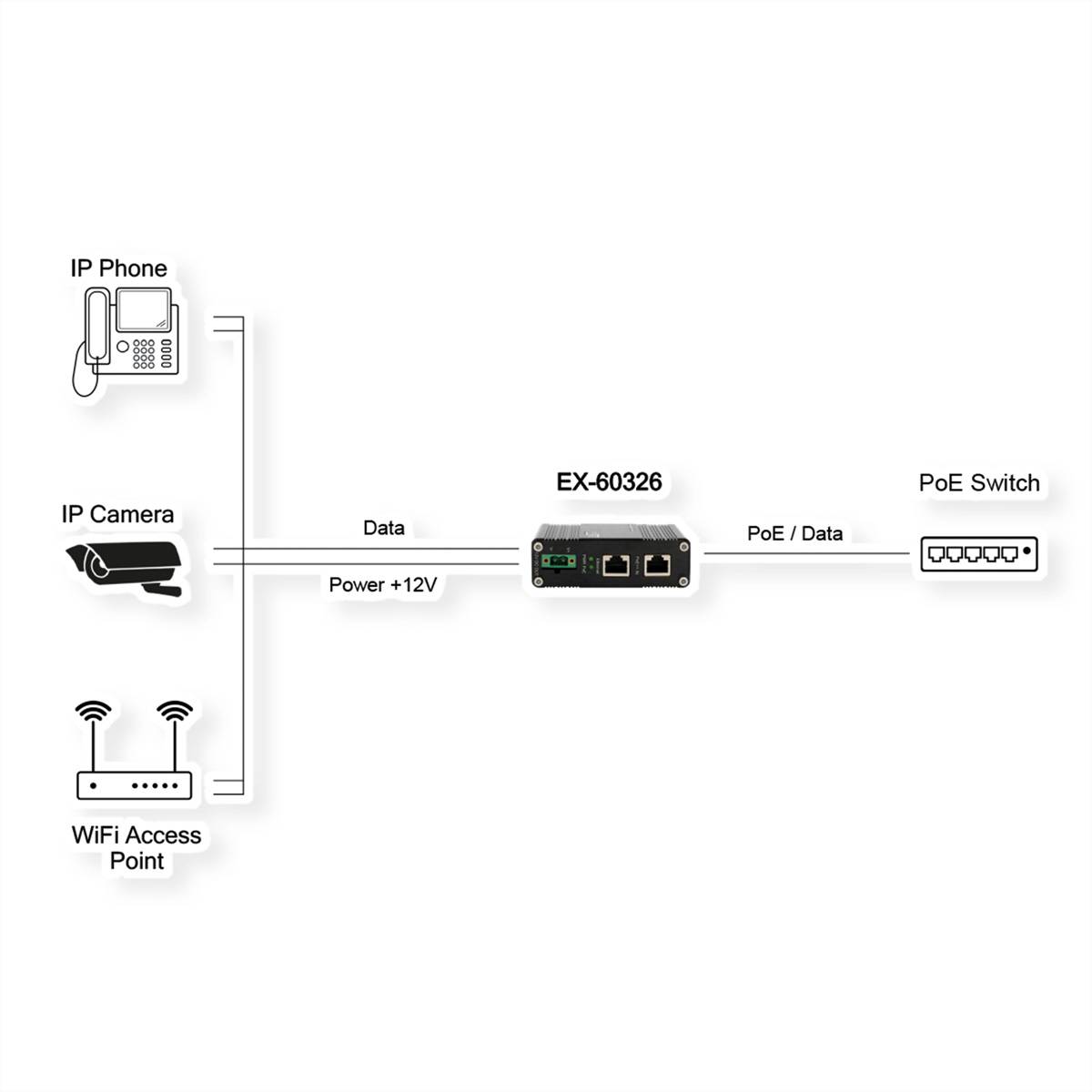

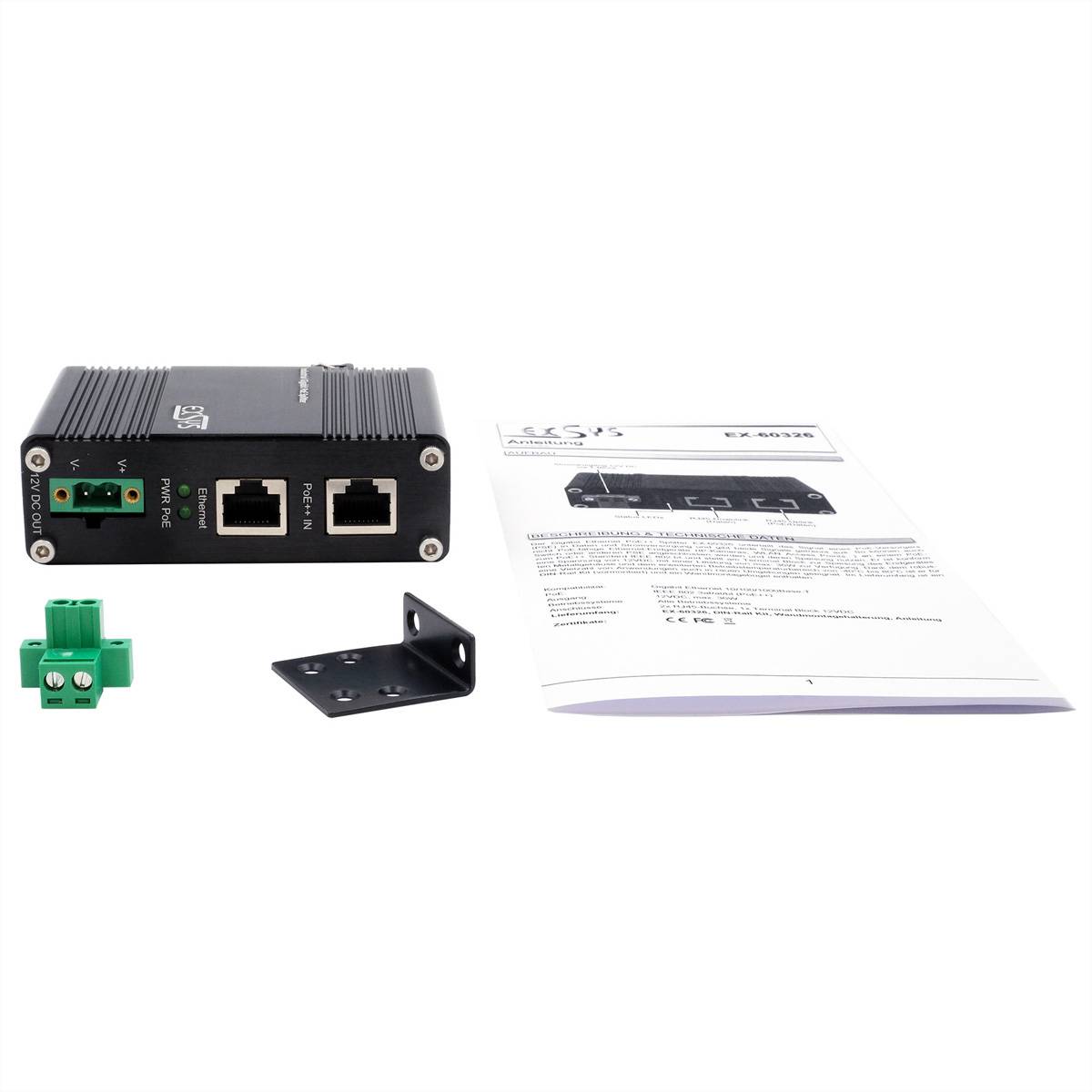

PoE+ Gigabit Splitter 12Vdc/36W, -40°C to +80°C The Gigabit Ethernet PoE+ Splitter EX-60326 splits the signal of a PoE provider (PSE) into data and power supply and outputs both signals separately. . O Non-PoE enabled Ethernet terminals (IP cameras, WLAN access points...) To a PoE switch or other PSE and use its power. . It is compliant with the PoE+ standard IEEE 802.3bt and provides a voltage of 12VDC with a max 36W at the terminal Block to supply the terminal. Thanks to its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications even in rough environments. . The delivery package includes a DIN rack kit (pre-assembled) and a wall mounting bracket.
