Name: EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485
Brand: Exsys
SKU: 3796998

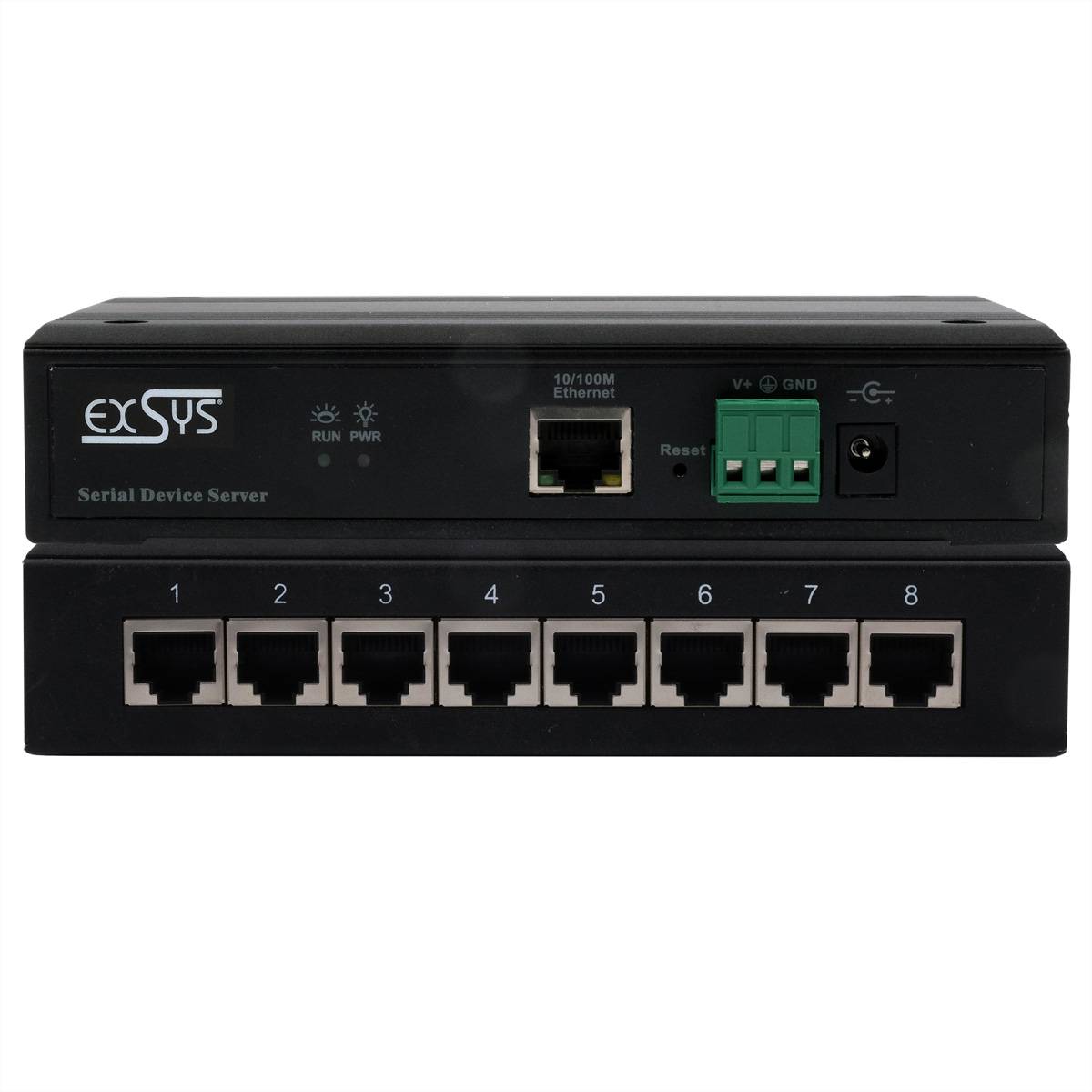

EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485-0

EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485-1

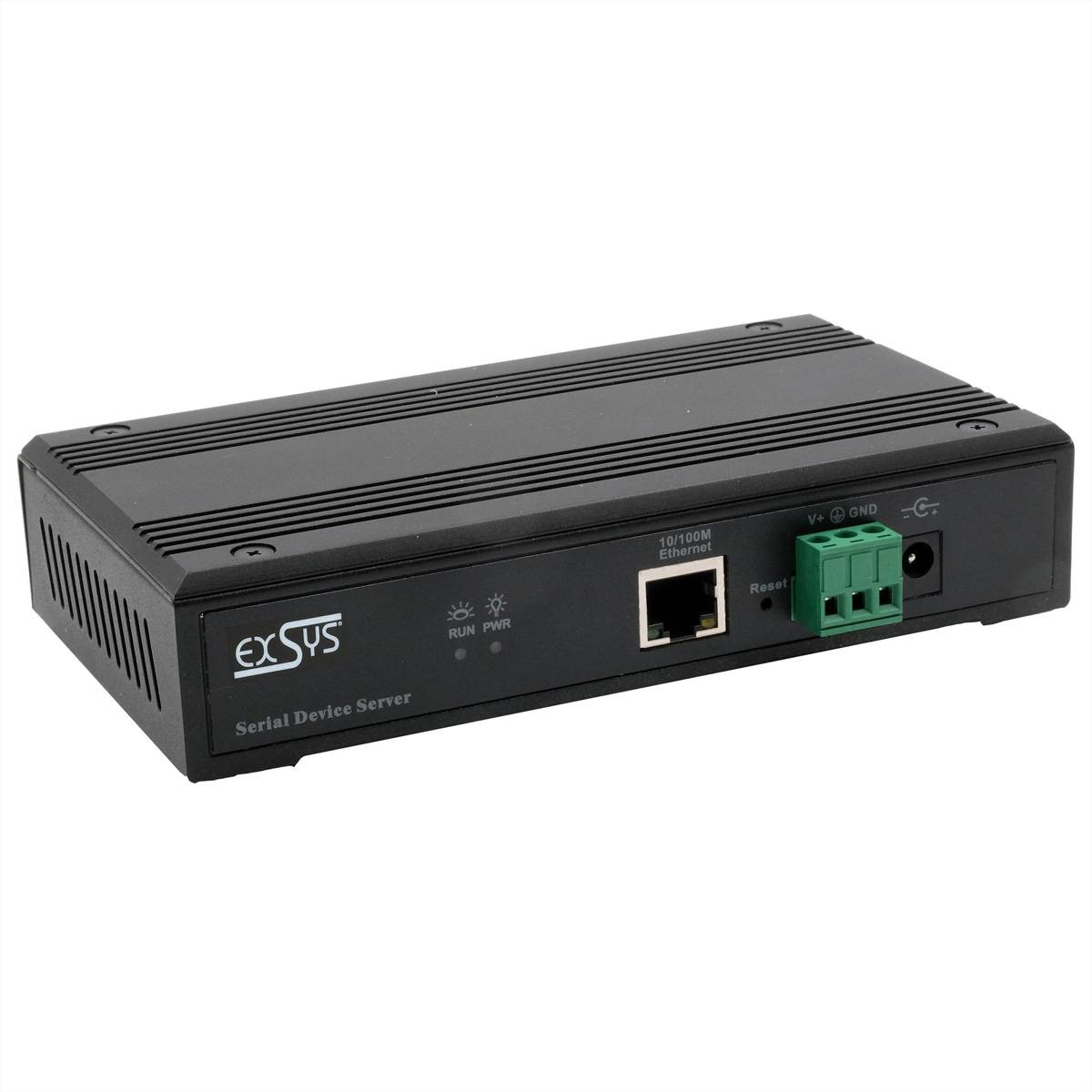

EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485-2

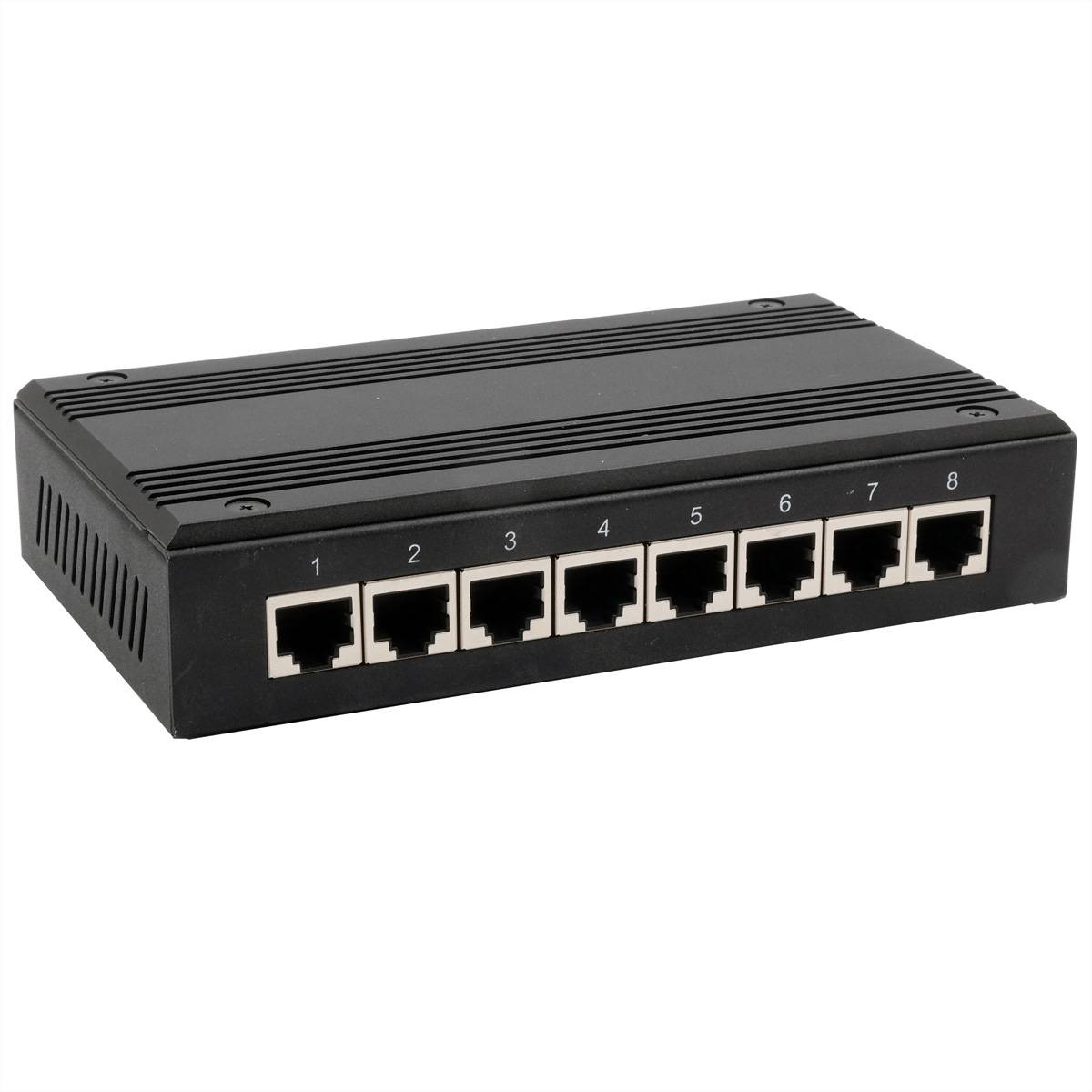

EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485-3

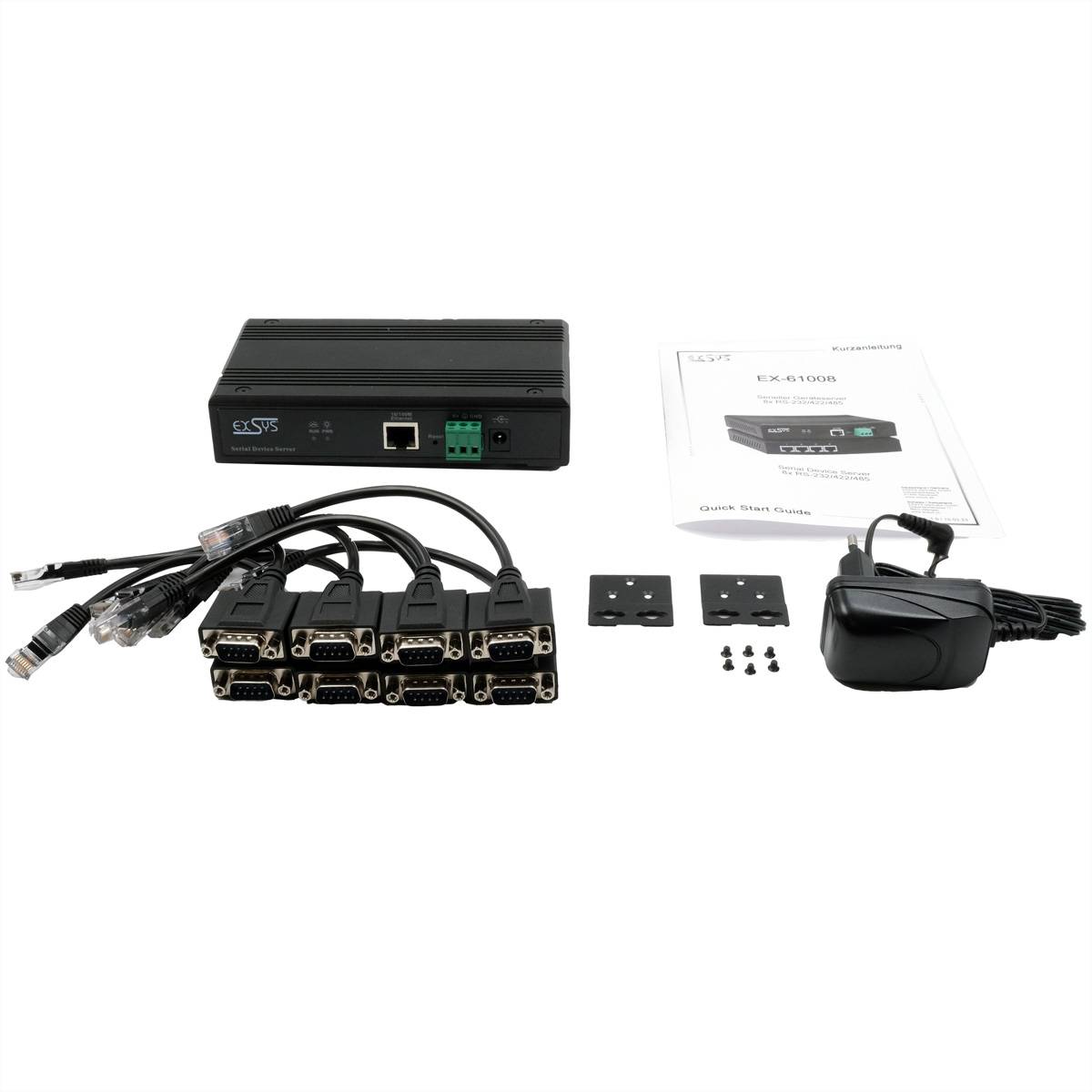

EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

8x serial RS-232/422/485 to Ethernet metal housing...

Interface RS-23V.24/422/485 with 8 ports
Parity: None, Even, Odd
Robust metal housing incl. wall-mounting
Point-to-point connection, requires no software
Including virtual COM software download

Technical specifications

Product group: Adapters, terminators, converters
Product Type: RS-232 to Ethernet Data Gateway
Colour, black
Connections on side 1 (PC): RJ45 socket
Connections side 2 (peripherals): 8x RS-232/422/485 9-pin plug or RJ45 jack
Range of application: External
Material: Metallic
Min. Operating temperature -40 °C
Max. operating temperature: 85 °C
Height: 161 mm
Width 91 mm
Depth: 37 mm
Weight: 1100 g
Packaging height 80 mm
Package width 260 mm
Packaging depth 340 mm
Package weight: 1,096 kg
Gross weight: 1.096

Product type: Serial console access server

Weight: 1.096

Type: EXSYS - EX-61008 Ethernet zu 8s x RS-232/422/485 - - RS-232 - Ethernet - RS-232

Factory colour: Black

Cable length: 0 mm

Version: Connection cable

Cable use: Networks

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796998 EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485

User & Safety Instructions

User & Safety Instructions 3796998 EXSYS EX-61008 Serial Device Server 8 x serial RS-232/422/485

Description

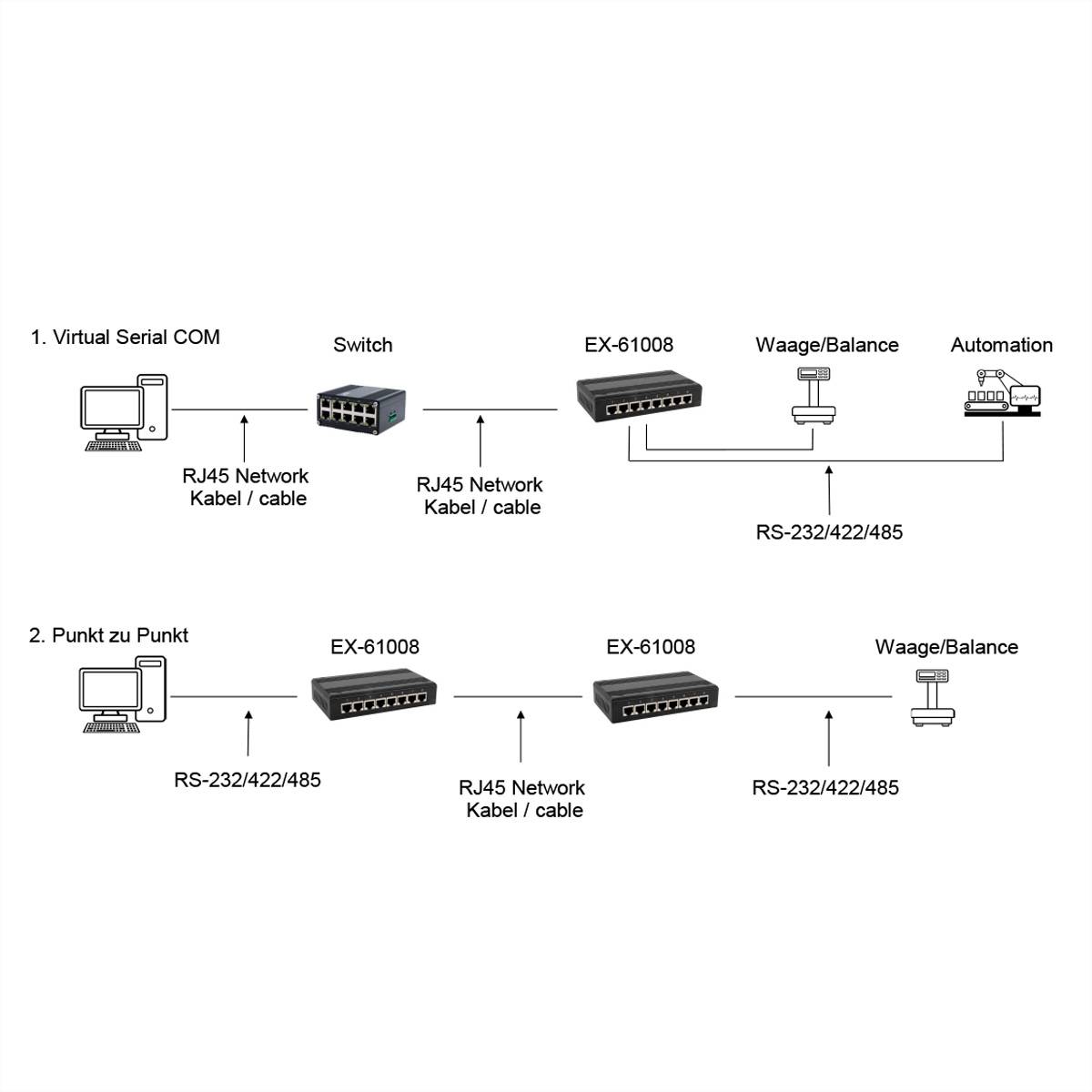

8x serial RS-232/422/485 to Ethernet metal casing The EX-61008 is a serial multi-protocol device server for integrating serial RS-232/422/485 devices (e.g. payment terminals, bar code reader, sensors, measuring devices, weighing systems, CNC controls, etc.) into an IP-based Ethernet network and allows direct access to serial devices from any point of the network. . The configuration is done comfortably via the Web browser and a variety of operating modes is available such as TCP server, TCP client, UPD, VCOM, remote-pair Master-slave, Modbus Server, Modbus Client supported.

This text is machine translated.
