Name: EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged
Brand: Exsys
SKU: 3796995

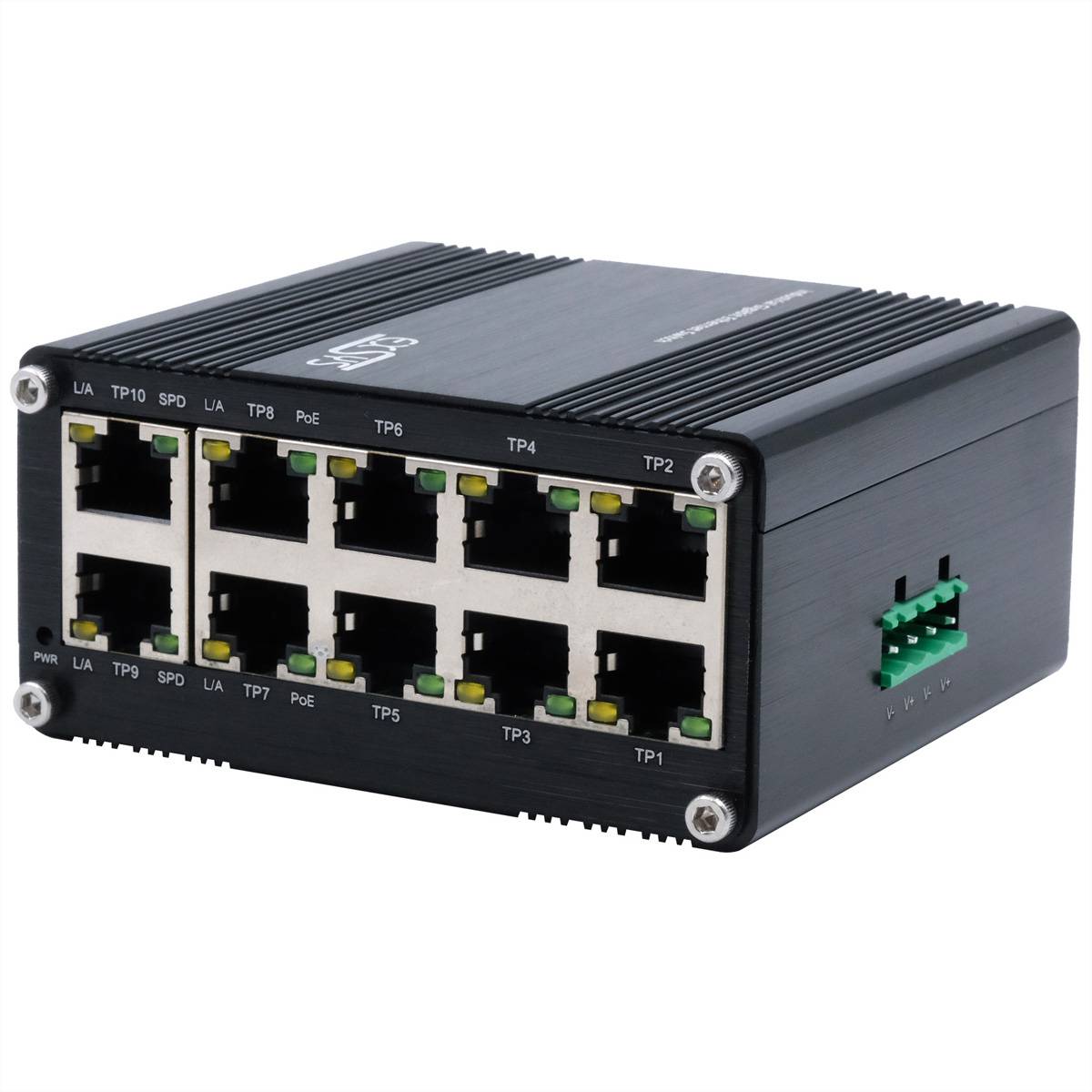

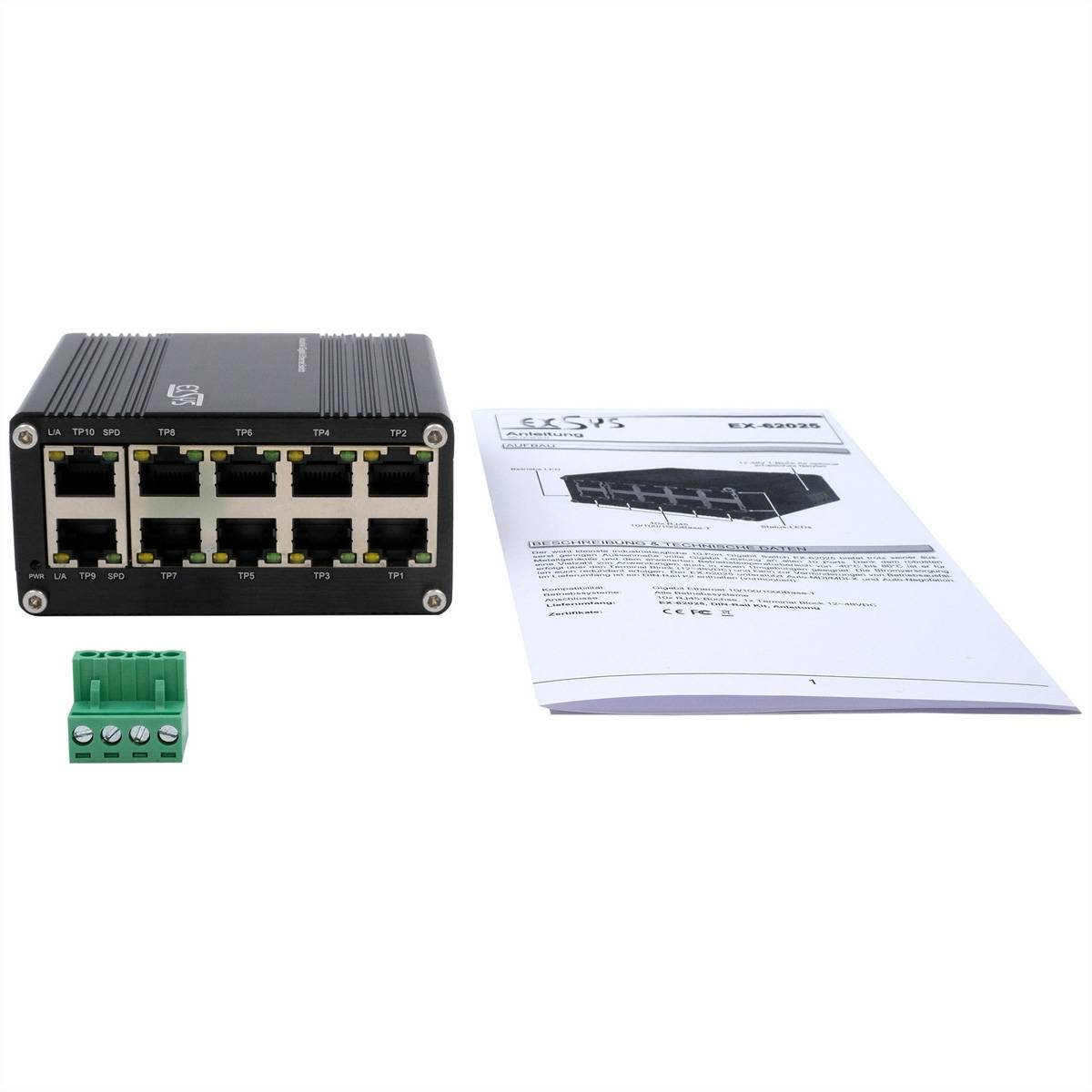

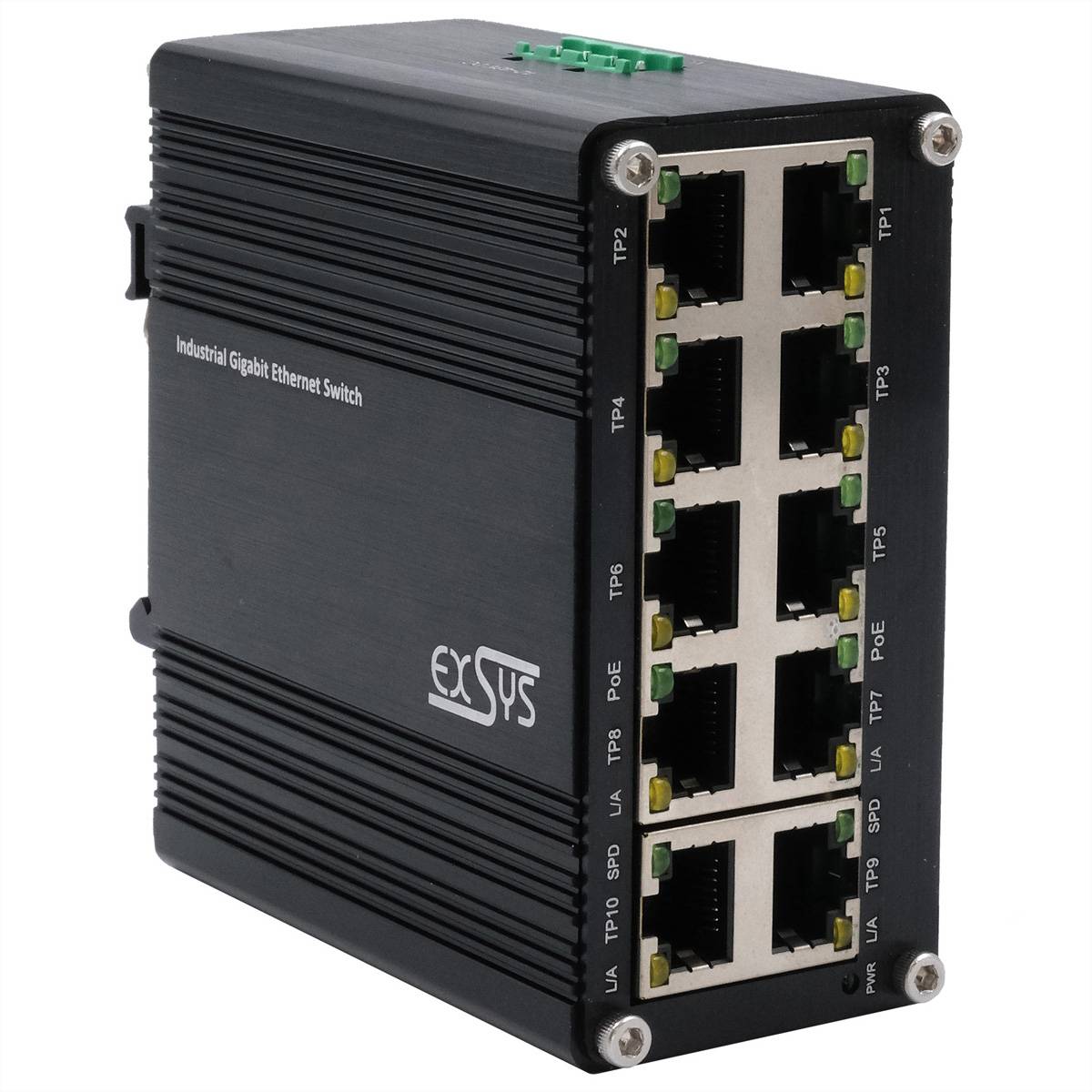

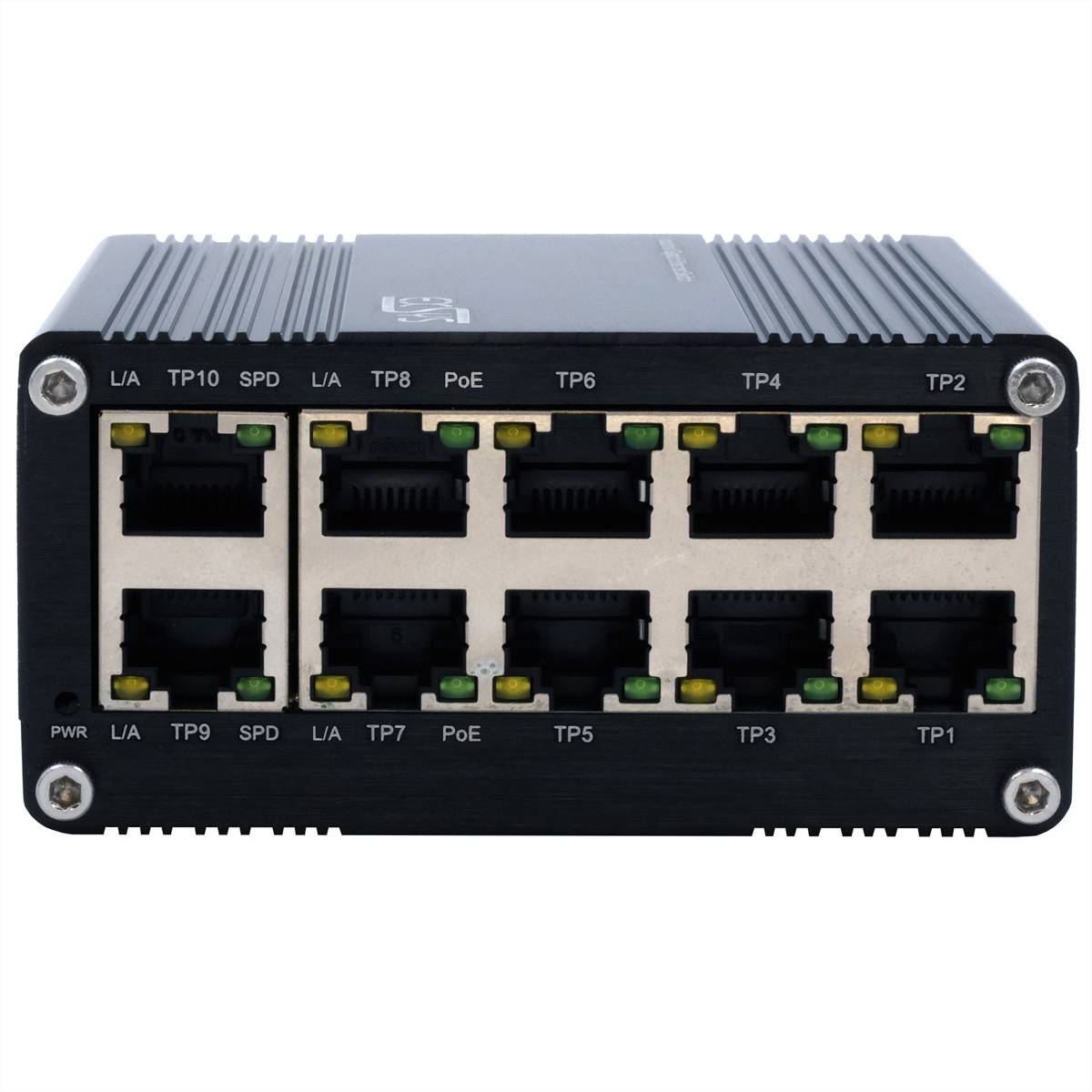

EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged-0

EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged-1

EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged-2

EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged-3

EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Smallest industrial-standard 10-port gigabit switch...

10/100/1000T gigabit Ethernet
Auto-MDI/MDIX makes crossover-cable superfluous
Supports Jumbo frames up to 9Kbytes
Plug and Play, no configuration or installation
Robust, very compact metal housing, IP40

Technical specifications

Product group: Industrial Networking
Product type: Network switch
Colour, black
Gigabit Ethernet network standard
LAN (Mbps) 10/100/1000
Total number of ports: 10
Gigabit Ethernet ports RJ-45: 10
Power over Ethernet (PoE): Yes
Number of PoE ports 8
Max. PoE output power per port 30 W
Design: Top hat rail
Management: No.
Protection type (IP code): IP40
Min. Operating temperature -40 °C
Max. operating temperature: 80 °C
Height: 46 mm
Width 100.9 mm
Depth: 95 mm
Weight 340 g
Packaging height 90 mm
Package width 130 mm
Packaging depth 190 mm
Package weight: 0,508 kg
Gross weight: 0.508

Product type: Network switch

Weight: 0.508

Type: EXSYS EX-62025PoE 10-Port Industrial PoE

Factory colour: Black

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796995 EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged

User & Safety Instructions

User & Safety Instructions 3796995 EXSYS EX-62025PoE 10-port industrial PoE switch mini, unmanaged

Description

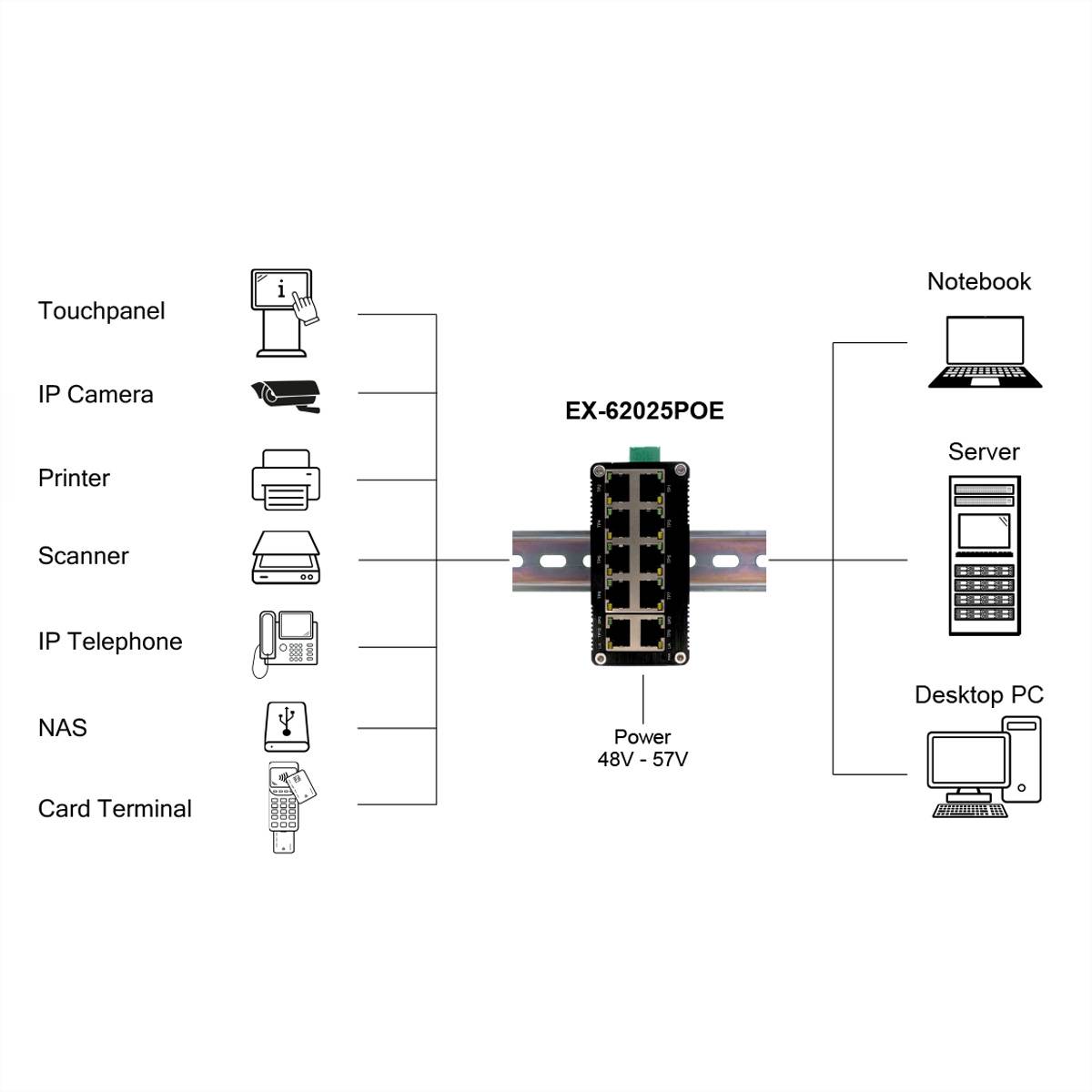

Smallest industrial-grade 10-port Gigabit switch Probably the smallest industrial-grade 10-port Gigabit PoE switch EX-62025PoE offers full gigabit performance at all 10 ports despite its extremely low outer dimensions. . At eight downlink ports, up to 30W are available for the connection of PoE Power devices (PD), such as IP cameras or IP telephones. Thanks to its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a wide range of applications even in harsh environments. . Power is supplied via terminal Block (48~57VDC) and can also be operated redundantly to reduce operational failures. The EX-62025PoE supports auto-MDI/MDI-X and auto-negotiation.

This text is machine translated.
