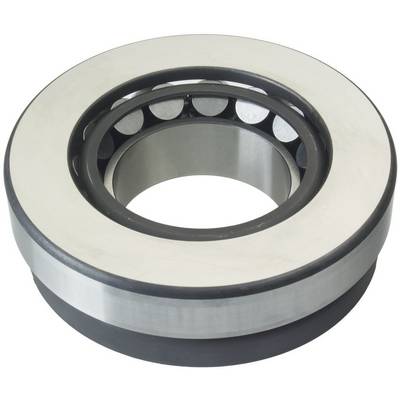

FAG 29326-E1 Spherical roller bearings (axial) Bore diameter 130 mm Outside diameter 225 mm Rotational speed (max.) 3000
EAN:
Part number:
Item no:
Bore Ø
130 mm
Outside Ø
225 mm
Product type
Spherical roller bearings (axial)
Type
29326-E1
Manufacturer part #
29326-E1
Number
Total (€ 1,004.20 / piece)
€
Technical specifications
- Type
29326-E1
- Manufacturer part #
29326-E1
- Dim
- Width
58 mm
- Inside diameter
130 mm
- Features
Reinforced (standard)
Open
- Bore Ø
130 mm
- Dynamic load rating (axial)
900000 N
- Outside Ø
225 mm
- Static load rating (axial)
2600000 N
- Rotational speed (max.)
3000 U/min
- Weight
8845 g
- Product type
Spherical roller bearings (axial)
Variants(All information is without VAT, plus shipping costs)
Type
Bore Ø
Outside Ø
FAG 29326-E1 Spherical roller bearings (axial) Bore diameter 130 mm Outside diameter 225 mm Rotational speed (max.) 3000 U/min
This article
29326-E1
130 mm
225 mm
Minimum order quantity: 1
Multiple: 1
€ 1,004.20*
FAG 29317-E1 Spherical roller bearings (axial) Bore diameter 85 mm Outside diameter 150 mm Rotational speed (max.) 4800 U/min
29317-E1
85 mm
150 mm
Minimum order quantity: 1
Multiple: 1
FAG 29318-E1 Spherical roller bearings (axial) Bore diameter 90 mm Outside diameter 155 mm Rotational speed (max.) 4800 U/min
29318-E1
90 mm
155 mm
Minimum order quantity: 1
Multiple: 1
FAG 29320-E1 Spherical roller bearings (axial) Bore diameter 100 mm Outside diameter 170 mm Rotational speed (max.) 4300 U/min
29320-E1
100 mm
170 mm
Minimum order quantity: 1
Multiple: 1
FAG 29322-E1 Spherical roller bearings (axial) Bore diameter 110 mm Outside diameter 190 mm Rotational speed (max.) 3600 U/min
29322-E1
110 mm
190 mm
Minimum order quantity: 1
Multiple: 1
FAG 29324-E1 Spherical roller bearings (axial) Bore diameter 120 mm Outside diameter 210 mm Rotational speed (max.) 3400 U/min
29324-E1
120 mm
210 mm
Minimum order quantity: 1
Multiple: 1
FAG 29328-E1 Spherical roller bearings (axial) Bore diameter 140 mm Outside diameter 240 mm Rotational speed (max.) 2800 U/min
29328-E1
140 mm
240 mm
Minimum order quantity: 1
Multiple: 1
FAG 29330-E1 Spherical roller bearings (axial) Bore diameter 150 mm Outside diameter 250 mm Rotational speed (max.) 2600 U/min
29330-E1
150 mm
250 mm
Minimum order quantity: 1
Multiple: 1
FAG 29332-E1 Spherical roller bearings (axial) Bore diameter 160 mm Outside diameter 270 mm Rotational speed (max.) 2600 U/min
29332-E1
160 mm
270 mm
Minimum order quantity: 1
Multiple: 1
FAG 29334-E1 Spherical roller bearings (axial) Bore diameter 170 mm Outside diameter 280 mm Rotational speed (max.) 2400 U/min
29334-E1
170 mm
280 mm
Minimum order quantity: 1
Multiple: 1
Description
Axial spherical roller bearings are single row bearings that allow angular fitting. They consist of robust wave spring washers, covers, asymetrical rollers and cages. The cage keeps rolls and wave spring washer in place. The bearings can be taken apart. Means the bearing parts can be fitted bit by bit. Axial spherical roller bearings are able to withstand high axial loads and support high rotary speed. The races are not aligned with the main bearing axis. Being positioned at an angle means that axial spherical roller bearings are also able to withstand radial load.
Postposed characters are used to identify different bearing types.
· E = reinforced
· E1 = reinforced
· MB = robust brass cage
Postposed characters are used to identify different bearing types.
· E = reinforced
· E1 = reinforced
· MB = robust brass cage
