Name: Fein CCG 18-125-12PD-SEC AS Set ProCORE 71222062000 Cordless angle grinder 125 mm 18 V
Brand: Fein
SKU: 3323882

'Compatible with AMPShare/Bosch Professional 18 V batteries.' Multilingual text indicates compatibility with 18 V batteries from AMPShare/Bosch.

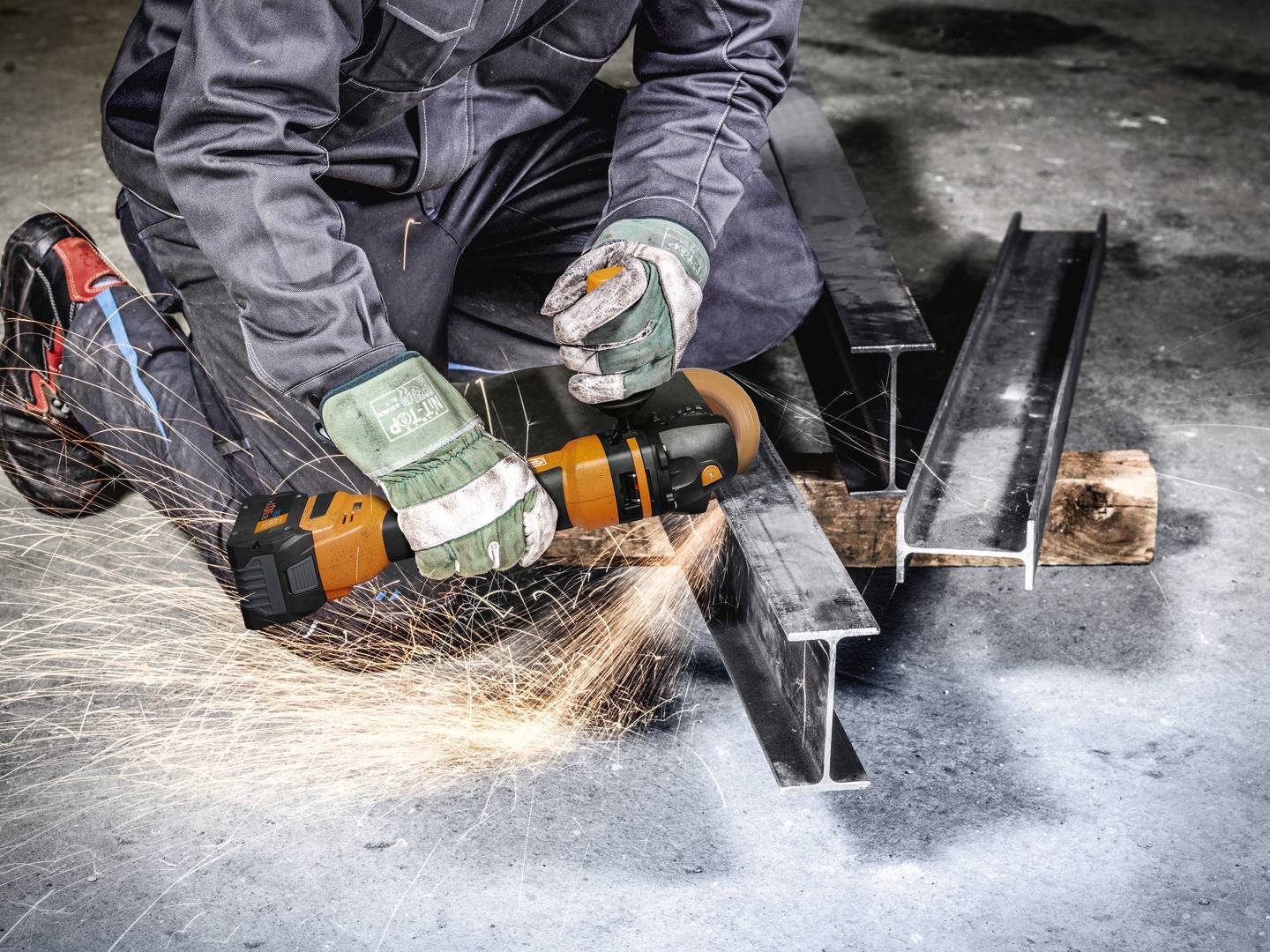

A person is cutting a metal beam with an electric saw in a workshop. Sparks are flying, with work clothing and protective gloves being worn.

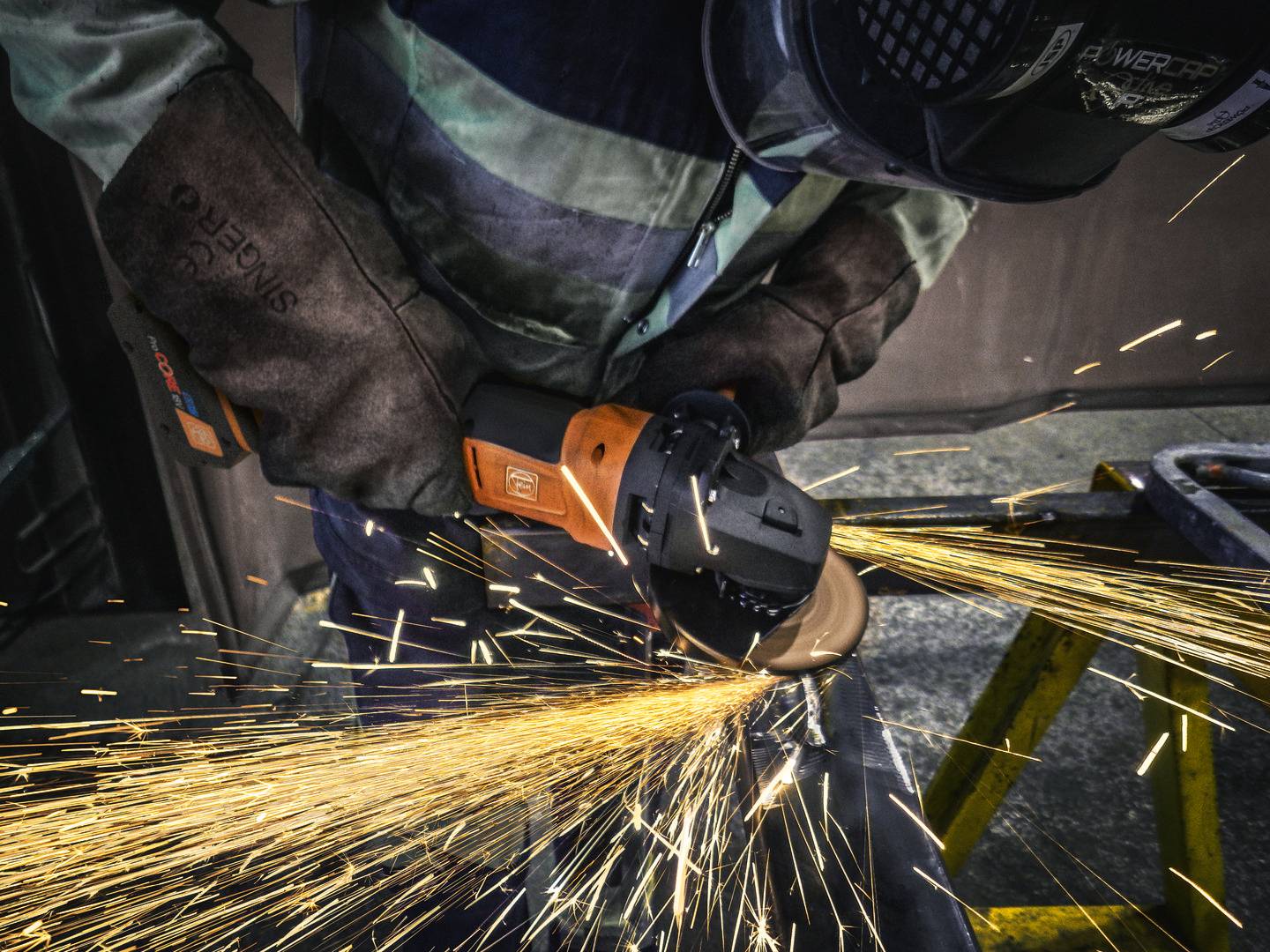

A worker grinds metal with an angle grinder. Sparks fly in a bright arc. Protective clothing is being worn.

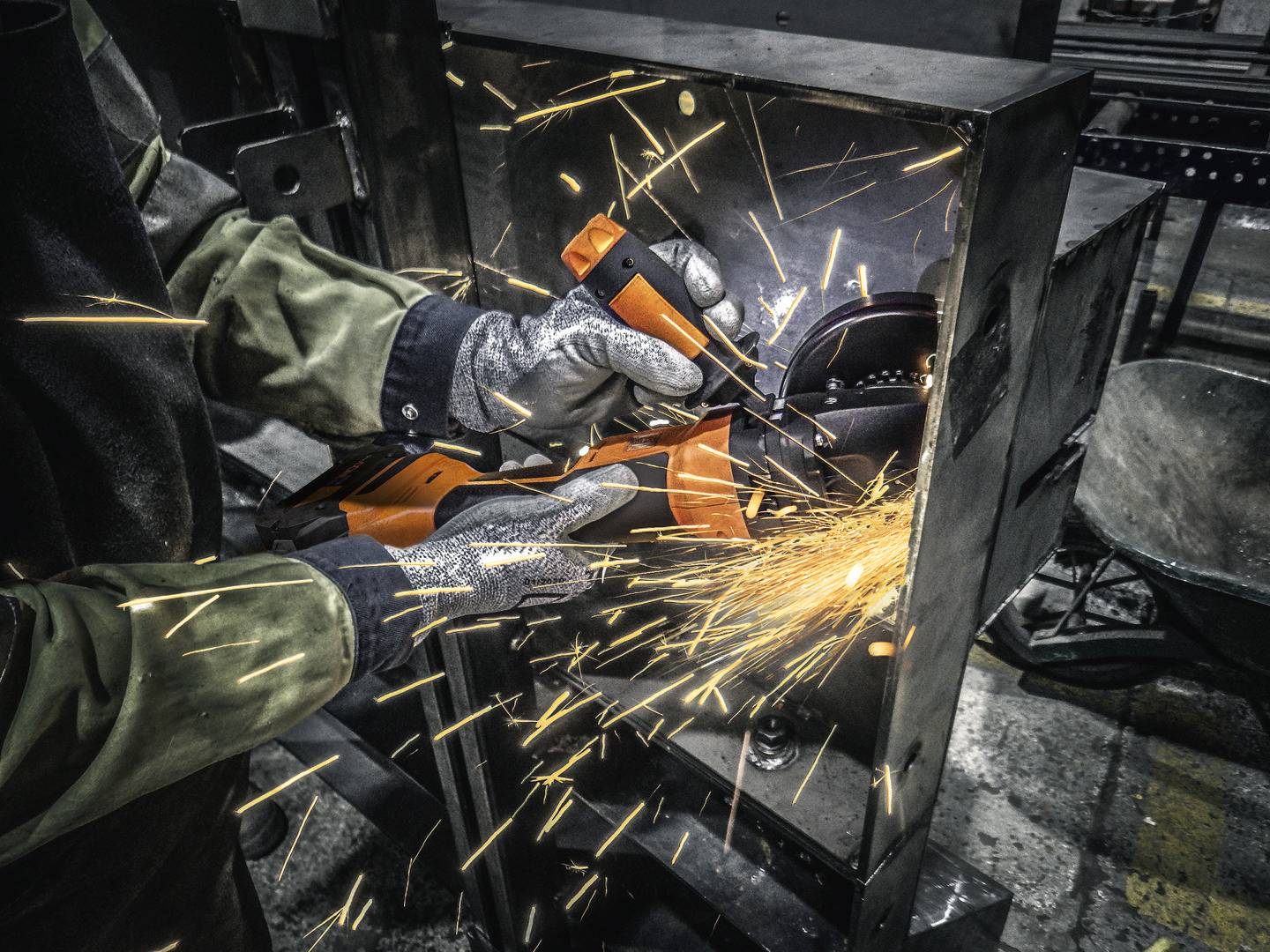

A worker in a factory grinds metal with an angle grinder. Sparks are flying around the area being worked on.

1/5

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

CCG 18-125-12 PD-SEC set 8AH PROCORE as

18 V

Technical specifications

Battery voltage: 18 V
Battery compatibility: Li-Ion / ProCORE Li-Ion
Battery interface 18 V AMPShare
Motor: Brushless
Idling speed 2500 - 8500
Weight without rechargeable battery: 2.40 kg
Grinding wheel Ø 125 mm
Load. Grinding disc Ø 125 mm
Flanges M 14
Weight with rechargeable battery: 3.30 kg

Product type: Cordless angle grinder

Voltage: 18 V

Disc diameter: 125 mm

Weight: 2.40 kg

Idle speed: 2500 - 8500 U/min

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3323882 Fein CCG 18-125-12PD-SEC AS Set ProCORE 71222062000 Cordless angle grinder 125 mm 18 V

Information

Test Summary Report 3323882 Fein CCG 18-125-12PD-SEC AS Set ProCORE 71222062000 Cordless angle grinder 125 mm 18 V

Description

Protago cordless angle grinder Ø 125 mm|CCG 18-125-12 PD-SEC Set 8AH ProCORE AS|Powerful battery-operated angle grinder with unique control concept for especially safe working.

This text is machine translated.

Features

Maximum protection of the user through the combination of numerous security features.
Reduces accidents often caused by misuse or negligence.
Extensive user protection through two-hand operation with AutoStop (dead-man switch) and permanently mounted additional handle, not removable protective cover as well as check-back monitoring (kick-back), soft start, restart protection, electronic overload protection and brake function.
1 200 watt cordless angle grinder with maintenance-free FEIN Power drive motor and AMPShare battery system for highest power and robustness. Optimal speeds, tuned to many different materials by continuously variable, electronic speed selection.
Durable and robust thanks to completely closed motor housing. This protects the engine from aggressive ceramic and mineral dusts. Innovative cooling fins ensure optimum cooling including temperature monitoring.
Twice the productivity - up to 50% more separation cuts than with the previous system (CCG 18 SEC + FEIN high-Power batteries) thanks to the perfect combination of powerful machine and powerful ProCORE battery system. Up to 30% faster separation than with comparable competitors.
Ideal ergonomics for cutting work thanks to slim grip, compact design and low weight with good balance.
Optimal performance, safe handling, perfect ergonomics and easy operation in any working situation.
Secure guidance in every working situation through additional handle adjustable in 6 positions.
New anti-vibration handle increases grip strength by up to 16% in comparison with conventional hand grips. In addition, the occurring vibrations are minimized.
Low setup times through tool-free mounting and setting options like for example adjustment of the protective cover, mounting the cover hood for cutting work or changing the consumables by means of quick clamping nut.
Fatigue-free working through a slim covering dimension, compact design and low weight with a good balance.
The proven, extremely reliable FEIN PowerDrive motors guarantee the highest life span.
Completely closed motor casing protects the motor against aggressive ceramic and mineral dusts. Dust-protected, separate motor electronics within the grip area.
Maintenance-free motor with innovative cooling fins for optimum cooling including temperature monitoring.
High quietness and low vibration operation through the independently stored, motor decoupled from the housing and four additional vibration dampers.
Delivers the same output as a corresponding cable angle grinder with 1 080 watt.
Compatible with all 18 V AMPShare ProCORE-batteries and chargers for still more Power and flexibility. Suitable also for 18 V Bosch Professional battery-operated devices
COOLPACK 2.0 technology provides for a 135% longer battery life and thus enables longer operating times.
The latest cell technology and intelligent battery management ensure 87% more power than conventional batteries.
ProCORE Li-ion battery with high-power cells, charge state indicator and "Electronic Cell Protection" (ECP). ECP protects the battery against overloading, overheating and deep discharge.
Best equipped for every use. Mobile working with the L-BOXX system.

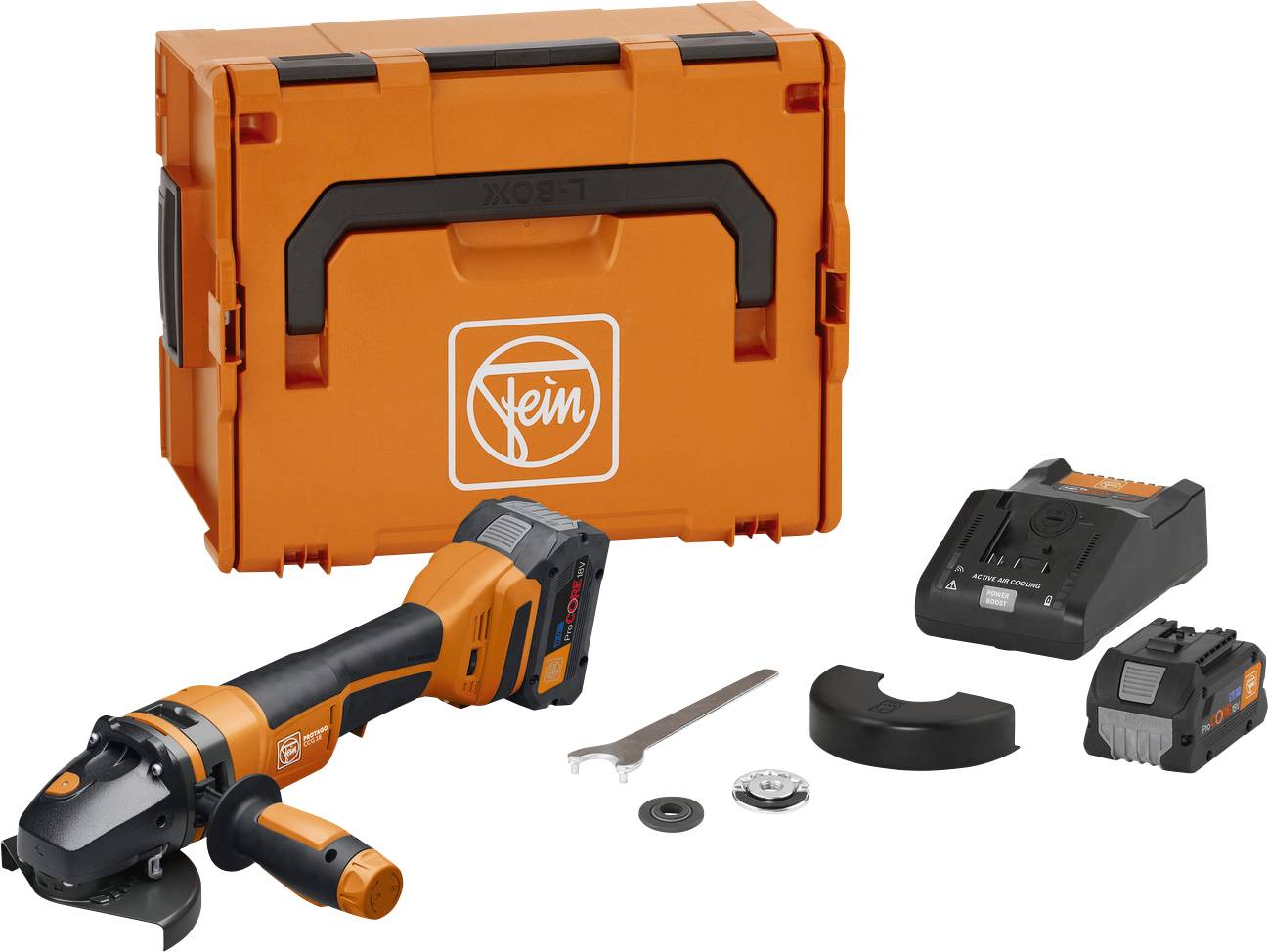

Scope of delivery

1 quick clamping nuts without tools
1 key
1 Protective cover for cutting work
2 PROCORE 18 V 8.0 Ah battery pack
1 QUICK CHARGER GAL18 V-160 AS
1 plastic tool case (L-BOXX 238)
