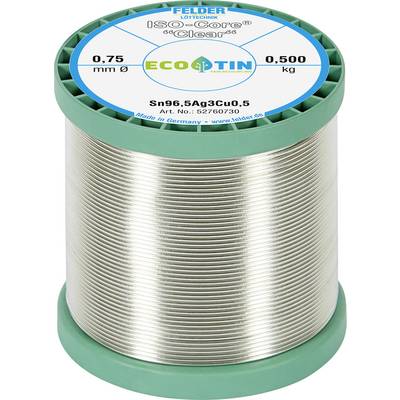

Felder ISO-Core "Clear" SAC305 Solder Reel Sn96,5Ag3Cu0,5 0.500 kg 0.75 mm
EAN:
Part number:
Item no:
Number
Total (1 kg = € 309.98)
€ 154.99
incl. VAT
14-day return policy included
Highlights & Details
Felder Löttechnik "Clear" SAC305, 0.500 kg, 0.75 mm
- Rosin-freeHigh wetting speedNo flux spatterCrystal-clear halogen-free flux residues
Technical specifications
- Lot: Sn96.5Ag3Cu0.5 (ISO 9453:2014)
- Flux: REL1 (EN 61190-1-1/J-STD-004), 1222 (ISO 9454-1:2016), flux content: 3.5%
- SIR (IPC-TM-650, 2.6.3.3) :> 100 MΩ
- Product type
Solder
- Type
Reel
- Wire diameter
0.75 mm
- Alloy
Sn96,5Ag3Cu0,5
- Weight
0.500 kg
Documents & Downloads
Information
Information 2226464 Felder ISO-Core "Clear" SAC305 Solder Reel Sn96,5Ag3Cu0,5 0.500 kg 0.75 mm
Security datasheet
Security datasheet 2226464 Felder ISO-Core "Clear" SAC305 Solder Reel Sn96,5Ag3Cu0,5 0.500 kg 0.75 mm
Signal word
GHS / EUH statements
- EUH 210: Safety data sheet available on request
Description
High-quality lead-free solder wire for hand and automatic soldering in electrical engineering, electro-mechanics and electronics. The flux is characterized by high temperature resistance and does not spray during melting. An optimal wetting as well as the standard spreading values make this lead-free soldering wire a top product among the tube solders. The new flux formulation "Clear" is based on synthetic resins (free of colophony) and has been perfectly adapted to the new requirements of lead-free soldering technology:· High wetting speed and spread on all surfaces common in electronics· No (painful) flux spatter on the assembly, system parts or the hands of the user(s)· Clear flux residues to optimize the optical impression· The lowest output and neutral odor reduces the stress on the workplace· Easily removable residues on soldering tips, these can be removed with conventional means (FIELDS, solder sponge, metal wool)· 100MΩ-Test passed- can also be used in assembly production· The service life of the soldering iron tips is significantly extended
This text is machine translated.
This text is machine translated.
