Felder ISO-Core "Clear" Sn100Ni+ Solder Reel Sn99,25Cu0,7Ni0,05 0.5 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 5.87
€ 5.87
5
1 M = € 5.52
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 5.87)
€ 5.87
plus VAT.
Highlights & Details

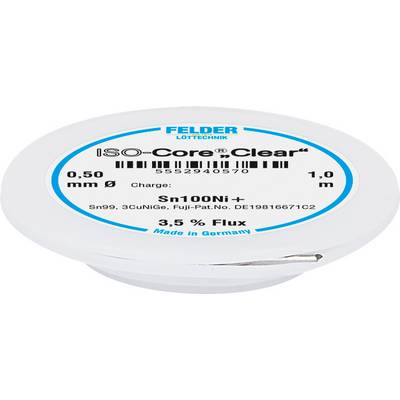

Felder Löttechnik ISO-Core "Clear" Sn100Ni+, 1 m folding coil, 0.50 mm
- Rosin-freeHigh wetting speedNo flux spatterCrystal-clear halogen-free flux residues
Technical specifications
- Lot: Sn99.25Cu0.7Ni0.05 (ISO 9453: 2014)
- According to Fuji patent DE 19816671C2
- Flux: REL1 (EN 61190-1-1/J-STD-004), 1222 (ISO 9454-1:2016), flux content: 3.5%
- SIR (IPC-TM-650, 2.6.3.3) :> 100 MΩ
- Type
Folding coil
- Product type
Solder
- Type
Reel
- Wire diameter
0.5 mm
- Alloy
Sn99,25Cu0,7Ni0,05
- Length
1000 mm
Documents & Downloads
Information
Information 2226472 Felder ISO-Core "Clear" Sn100Ni+ Solder Reel Sn99,25Cu0,7Ni0,05 0.5 mm
Security datasheet
Security datasheet 2226472 Felder ISO-Core "Clear" Sn100Ni+ Solder Reel Sn99,25Cu0,7Ni0,05 0.5 mm
Signal word
GHS / EUH statements
- EUH 210: Safety data sheet available on request
Description
High-quality lead-free solder wire for hand and automatic soldering in electrical engineering, electro-mechanics and electronics. The flux is characterized by high temperature resistance and does not spray during melting. An optimal wetting as well as the standard spreading values make this lead-free soldering wire a top product among the tube solders. The new flux formulation "Clear" is based on synthetic resins (free of colophony) and has been perfectly adapted to the new requirements of lead-free soldering technology:· High wetting speed and spread on all surfaces common in electronics· No (painful) flux spatter on the assembly, system parts or the hands of the user(s)· Clear flux residues to optimize the optical impression· The lowest output and neutral odor reduces the stress on the workplace· Easily removable residues on soldering tips, these can be removed with conventional means (FIELDS, solder sponge, metal wool)· 100MΩ-Test passed- can also be used in assembly production· The service life of the soldering iron tips is significantly extended
