Name: Feller Complete Socket EDIZIOdue White 177607 1 pc(s)
Brand: Feller
SKU: 3735100

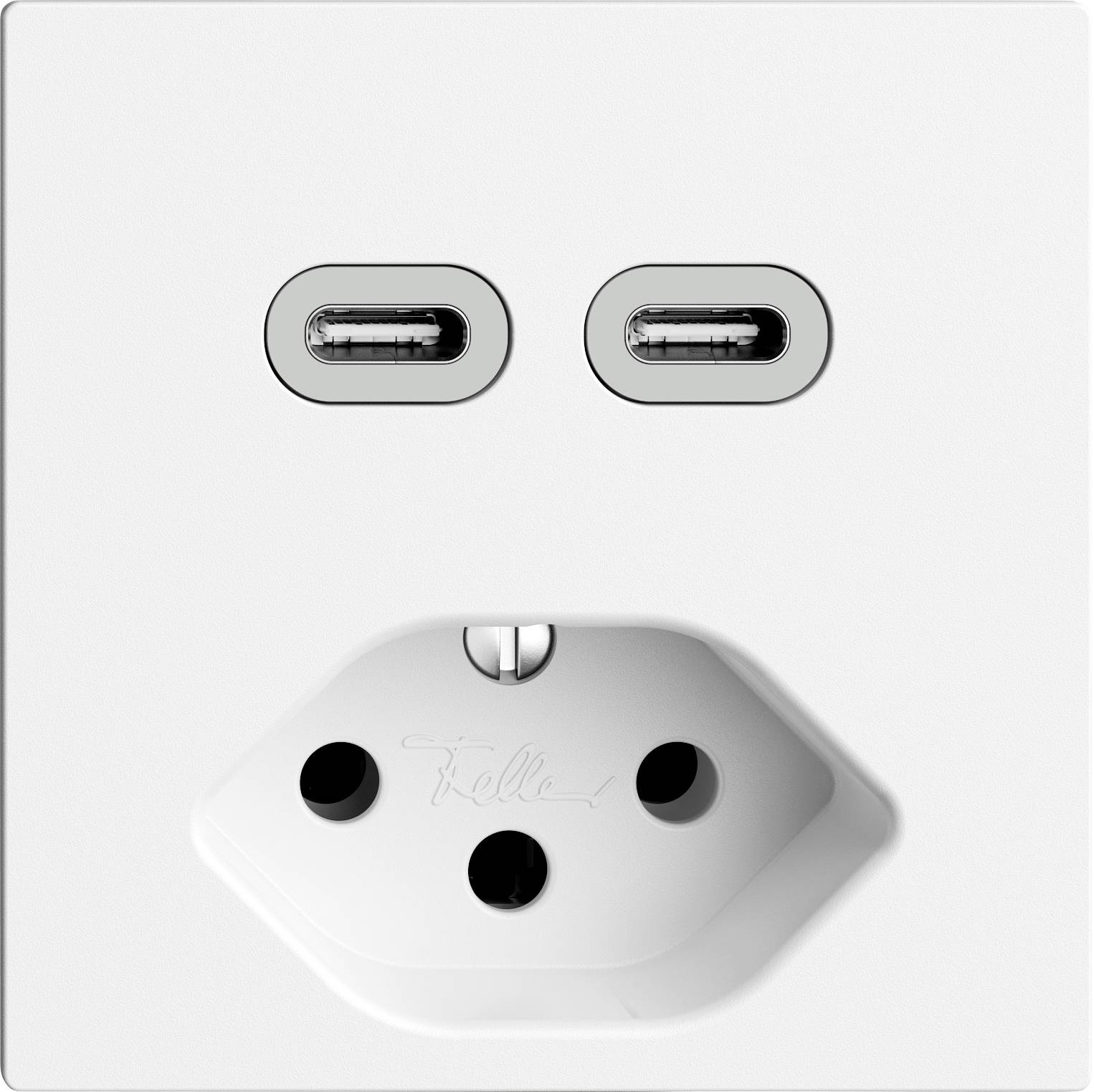

A white electrical outlet featuring two USB-C ports above a standard power socket, suitable for charging electronic devices.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Small combination 2x USB-C / type 13 insert + front PL. EdizioDue white

Variably combinable color inserts
Easy color conversion

Technical specifications

Small unit type, USB charger socket
Design: Insert with front plate
Type 13 and 2x USB type C.
Function: With plug-in terminals
Surface finish: Matt
Number of slots: 1
USB Output Single A-Port: Max. 5.0 V / 12.0 W
USB Output Single C-Port: Max. 5.0 V / 15.0 W
USB output total: Type A+C: 5.0 V / 15.0 W
Installation depth: 41 m
Mounting height 8 mm
Dimensions (LxWxH): 60x60x47 mm
Weight 170 g

Type: Small combination 2x USB-C / type 13 insert + front PL. EdizioDue white

Switch type function: Socket

Product type: Socket

Switch type component: Complete

Type series: EDIZIOdue

Factory colour: White

Nominal voltage: 230 V

Nominal current: 10 A
3 A
1.5 A

: IP20

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3735100 Feller Complete Socket EDIZIOdue White 177607 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3735100 Feller Complete Socket EDIZIOdue White 177607 1 pc(s)

Description

Small combination charging socket 2x USB-C / Socket type: Type 13 / Design: Use with front plate / 10A / 230V / Function: With plug-in terminal, Output current max. 1x 3000 mA or 2x 1500 mA, max. 100mW, overload proof and short circuit proof / Mounting height: 8mm / mounting depth: 41mm / white / IP20 / EdizioDue

EDIZIODUE is far more than an attractive range of light switches and sockets. For the majority of system solutions it is also a superior design philosophy for all functions. EDIZIOdue uses the proven Feller apparatus technology. The basis is the color-neutral functional application, which allows the modular types flush-mounting, surface-mounting and installation. Subsequent color changes are quickly fulfilled, since EDIZIOdue covers can be easily replaced when the device is connected.
