Name: Feller Insert Rotary dimmer EDIZIOdue Black, Silver 177564 1 pc(s)
Brand: Feller
SKU: 3735073

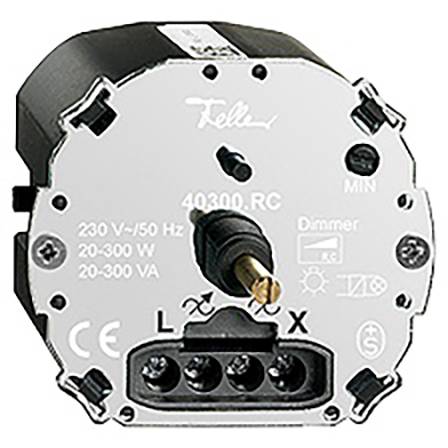

'Dimmer switch model 40300.RC, 230V/50Hz, 20-300W, with L, X, and neutral wire connections, designed for adjusting lighting intensity.'

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Diver phase section use EdizioDue

Variably combinable color inserts
Easy color conversion

Technical specifications

Design: Insert
Apparatus function: Phase section
Mounting depth: 29 mm
Dimensions (LxWxH): 58x52x47.5 mm
Weight: 60 g

Type: Diver phase section use EdizioDue

Switch type function: Rotary dimmer

Product type: Rotary dimmer switch

Switch type component: Insert

Type series: EDIZIOdue

Factory colour: Black
Silver

Nominal voltage: 230 V

: IP20

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3735073 Feller Insert Rotary dimmer EDIZIOdue Black, Silver 177564 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3735073 Feller Insert Rotary dimmer EDIZIOdue Black, Silver 177564 1 pc(s)

Description

Rotary dimmer/phase section RC/model: Application / power: 20-300W ohmic, 20-300VA capacitive / voltage: 230V / 50Hz / additional function: Minimum brightness adjustable, with switch contact for alternating connection / installation depth: 29mm / IP-protection type: IP20 / EdizioDue

EDIZIODUE is far more than an attractive range of light switches and sockets. For the majority of system solutions it is also a superior design philosophy for all functions. EDIZIOdue uses the proven Feller apparatus technology. The basis is the color-neutral functional application, which allows the modular types flush-mounting, surface-mounting and installation. Subsequent color changes are quickly fulfilled, since EDIZIOdue covers can be easily replaced when the device is connected.
