Name: Feller Insert Socket EDIZIOdue White 177580 1 pc(s)
Brand: Feller
SKU: 3735127

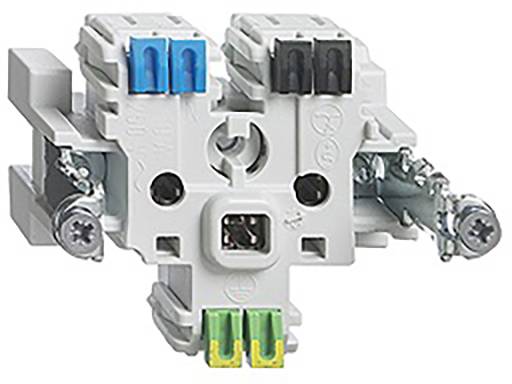

A white electrical connector block with multiple slots and colorful terminal points, featuring two screw mounts on either side.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Socket 1x type 13 insert EdizioDue

Variably combinable color inserts
Easy color conversion

Technical specifications

Socket for Equipment
Design: Insert
Device function: Type 13
Function: With plug-in terminals
Number of slots: 1
Installation depth: 41 mm
Dimensions (LxWxH): 45x58x41 mm
Weight 40 g

Type: Socket 1x type 13 insert EdizioDue

Switch type function: Socket

Product type: Socket

Switch type component: Insert

Type series: EDIZIOdue

Factory colour: White

Nominal voltage: 230 V

Nominal current: 10 A

: IP20

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3735127 Feller Insert Socket EDIZIOdue White 177580 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3735127 Feller Insert Socket EDIZIOdue White 177580 1 pc(s)

Description

Socket 1x type 13 / Design: Application / Current: 10A / Voltage: 250V / Additional function: With plug-in terminals / installation depth: 41mm / IP protection class: IP20 / EdizioDue

EDIZIODUE is far more than an attractive range of light switches and sockets. For the majority of system solutions it is also a superior design philosophy for all functions. EDIZIOdue uses the proven Feller apparatus technology. The basis is the color-neutral functional application, which allows the modular types flush-mounting, surface-mounting and installation. Subsequent color changes are quickly fulfilled, since EDIZIOdue covers can be easily replaced when the device is connected.

This text is machine translated.
