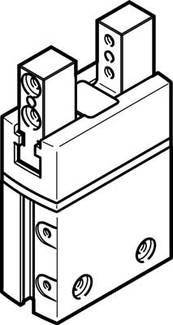

FESTO 1254043 DHPS-16-A 2-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 615.00 / piece)
€ 615.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- No. of jaws: 2
- Size: 16
- Fastening method: Optional:
- Internal thread and centering sleeve
- With through hole and centering sleeve
- Operating pressure: 2 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- All mounting positions permitted
- Guide: Slide guide
- Operation: Double-acting
- Open total gripping force at 6 bar: 210 N.
- Close total grip at 6 bar: 190 N.
- Gripper function: Parallel
- Open gripping force per gripping jaw at 6 bar: 105 N.
- Close gripping force per gripping jaw at 6 bar: 96 N.
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Stroke per jaw: 5 mm
- Constructive structure: Lever
- Forced motion sequence
- Corrosion resistance class KBK: 1 - low corrosion stress
- Mass moment of inertia: 0.465 kgcm2
- Max. Working frequency gripper: 3 Hz
- Max. Replacement accuracy< = 0.2 mm
- Max. Gripping jaw play Sz:< 0.02 mm
- Max. Jaw angle play ax,ay:< 0.5 deg
- Max. Static force on gripping jaws Fz: 150 N.
- Max. Mass per external gripper 150 g
- Max. Moment on gripping jaws Mx static: 8 Nm
- Max. Moment on gripping jaws My static: 8 Nm
- Max. Moment on gripping jaws Mz static: 8 Nm
- Min Opening time at 6 bar: 33 ms
- Min Closing time at 6 bar: 41 ms
- Relubrication interval guide elements: 10 million SP
- Pneumatic connection: M3
- Position detection: For proximity switches
- Product weight 184 g
- Rotation symmetry<: = 0.2 mm
- Ambient temperature: 5 ... 60 °C
- Material covering cap: PA
- Material casing: Aluminum wrought alloy
- hard anodized
- Material gripping jaws: High-alloy steel stainless
- Material note: RoHS compliant
- Repeat accuracy of gripper 0.02< mm
- Operating medium
Compressed Air
- Product type
2-finger gripper
- Enclosure material
Aluminium wrought alloy
- Connection
M3
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
1254043
- Operating pressure (min.)
2 bar
- Weight
184 g
- Medium
Compressed air
- Control pressure (max.)
8 bar
- Control pressure (min.)
2 bar
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204604 FESTO 1254043 DHPS-16-A 2-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
