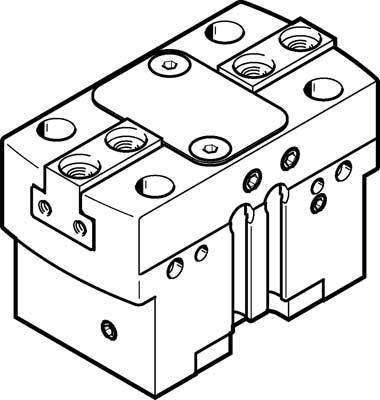

FESTO 560207 HGPT-25-A-B-F 2-finger gripper 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 859.00 / piece)
€ 859.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
2-finger gripper HGPT-25-A-B-F
Technical specifications
- Product weight: 266 g
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Type
560207
- Product type
2-finger gripper
- Max. operating pressure
8 bar
- Manufacturer part #
560207
- Operating pressure (min.)
3 bar
- Accuracy (+/-)
0.2 mm
- Weight
266 g
- Connection
M5
- Material (details)
Anodised aluminum
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2120809 FESTO 560207 HGPT-25-A-B-F 2-finger gripper 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2120809 FESTO 560207 HGPT-25-A-B-F 2-finger gripper 1 pc(s)
Description
Parallel gripper HGPT-25-A-B-F robust. High-power version. Size = 25, Hub per jaws = 3 mm, Max. = ≤ 0.2 mm, Max. Exchange accuracy Jaws angle game ax, ay = ≤ 0.1 deg, Max. Jaws Game Sz = ≤ 0.02 mm
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
