Name: FESTO Air gap sensor SOPA-M1-R1-HQ6-2P-M12 552146 QS-6 Enclosure material Polyamide (fibreglass-reinforced)
Brand: FESTO
SKU: 2204459
Availability: BackOrder

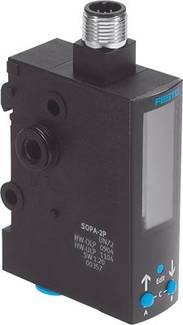

View of a Festo pressure sensor SOPA-2P with digital display and blue control elements, predominantly in black tones.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 359.00 / piece)

€ 359.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Display type: Light-LCD multi-color
Fastening method: Optional:
With through hole
With DIN rail
With wall/surface holder
Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
Operating voltage range DC: 15 ... 30 V
CE mark (see declaration of conformity): According to EU EMC directive
According to EU-RoHS-RL
Setting options: Teach-in
Via display and buttons
Electrical connection: Connector
Round design
According to EN 60947-5-2
M12x1
5-pin
Detection range: 20 ... 200 µm
Note on operating and control medium: Oiled operation possible (required in further operation)
KC-MARK: KC-EMC
Short-circuit resistance: Isochronous
Tamper protection: Electronic locking
Max. output current 100 mA
Measuring principle: Pneumatic
Pneumatic connection: QS-6
Product weight: 60 g
IP65 rating
According to IEC 60529
Feed pressure: 0.8 ... 1.6 bar
Ambient temperature: 0 ... 50 °C
Reverse polarity protection: For all electrical connections
Material housing: PA-reinforced
Material information: Free of copper and PTFE
Complies with RoHS
Repeat accuracy switching point: ±2.5 µm detection range 30 µm to 150 µm
±5 µm detection range 20 to 200µm
Approval: RCM Mark
C UL us - Recognized (OL)

Operating medium: Compressed Air

Product type: Air gap sensor

Enclosure material: Polyamide (fibreglass-reinforced)

Connection: QS-6

Max. operating pressure: 1.6 bar

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Manufacturer part #: 552146

Operating pressure (min.): 0.8 bar

Weight: 60 g

Medium: Compressed air

: IP65

Control pressure (max.): 1.6 bar

Control pressure (min.): 0.8 bar

Max. ambient temperature: +50 °C

Min. ambient temperature: 0 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2204459 FESTO Air gap sensor SOPA-M1-R1-HQ6-2P-M12 552146 QS-6 Enclosure material Polyamide (fibreglass-reinforced)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
