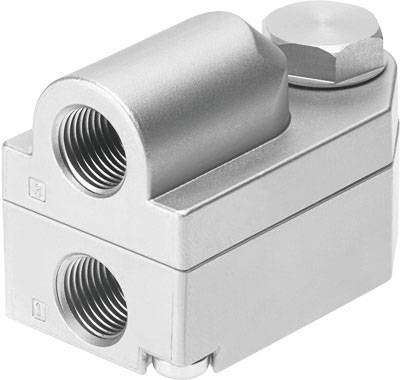

FESTO Quick bleed valve 547533 VBQF-D-G18-E 0.5 up to 10 bar 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 36.99 / piece)
€ 36.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
VBQF-D-G18-E
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Quick bleed valve
- Min. display range
0.5 bar
- Display range (max.)
10 bar
- Operating temperature
-20 up to +80 °C
- Min. operating temperature
-20 °C
- Max. operating temperature
+80 °C
- Manufacturer part #
547533
- Material (details)
Aluminum die-cast zinc die-cast
- Connection
G1/8
- Max. operating pressure
10 bar
- Operating pressure (min.)
0.5 bar
- Pressure range
0.5 up to 10 bar
- Operating medium
Compressed air
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2119573 FESTO Quick bleed valve 547533 VBQF-D-G18-E 0.5 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2119573 FESTO Quick bleed valve 547533 VBQF-D-G18-E 0.5 up to 10 bar 1 pc(s)
Description
Rapid venting valve VBQF-D-G18-E valve function = rapid venting, pneumatic connection 1 = G1/8, pneumatic connection 2 = G1/8, mounting type = can be screwed into, normal rated flow ventilation = 850 l/min
