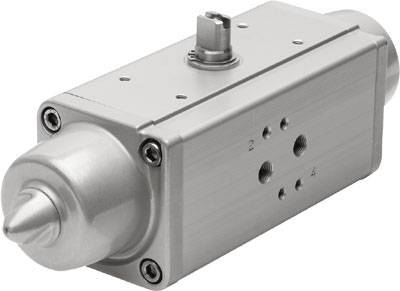

FESTO Rotary actuator 533436 DAPS-0053-090-RS2-F0507 Enclosure material: Aluminium wrought alloy 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 465.00 / piece)
€ 465.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Swivel angle: 90 deg
- Design: yoke kinematics
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8.4 bar
- Manufacturer part #
533436
- Weight
3000 g
- Connection
G1/8
- Min. operating pressure
3.5 bar
- Operating medium
Compressed air
- Sealant
FPM
NBR
PUR
- Enclosure material
Aluminium wrought alloy
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Single-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2118283 FESTO Rotary actuator 533436 DAPS-0053-090-RS2-F0507 Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2118283 FESTO Rotary actuator 533436 DAPS-0053-090-RS2-F0507 Enclosure material: Aluminium wrought alloy 1 pc(s)
Information
Information 2118283 FESTO Rotary actuator 533436 DAPS-0053-090-RS2-F0507 Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DAPS -0053-090-RS2-F0507 single-acting, air port, according to the VDI/VDE 3845-Namur valves directly anflanschbar. Size Actuator = 0053, flange drilling pattern = (* F05,* F07), tilt angle = 90 deg, adjustment range end position at 0°=-1 - 9 deg, adjustment range end position at 90° = 81 - 91 deg
This text is machine translated.
This text is machine translated.
