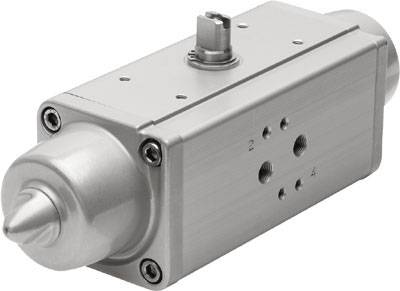

FESTO Rotary actuator 553218 DAPS-0240-090-RS3-F1012-T6 Enclosure material: Aluminium wrought alloy 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,485.00 / piece)
€ 1,485.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Swivel angle: 90 deg
- Design: yoke kinematics
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8.4 bar
- Manufacturer part #
553218
- Weight
11800 g
- Connection
G1/4"
- Min. operating pressure
4.2 bar
- Operating medium
Compressed air
- Sealant
FVMQ
PTFE
- Enclosure material
Aluminium wrought alloy
- Material
Aluminium wrought alloy
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2120493 FESTO Rotary actuator 553218 DAPS-0240-090-RS3-F1012-T6 Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2120493 FESTO Rotary actuator 553218 DAPS-0240-090-RS3-F1012-T6 Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DAPS -0240-090-RS3-F1012-T6 size actuator = 0240, flange drilling pattern = (* F10* F12), tilt angle = 90 deg, adjustment range end position at 0°=-1 - 9 deg, adjustment range end position at 90° = 81 - 91 deg
This text is machine translated.
This text is machine translated.
