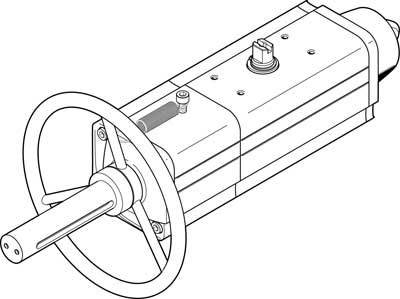

FESTO Rotary actuator 8005037 DAPS-0120-090-RS4-F0710-MW Enclosure material: Aluminium wrought alloy 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,419.00 / piece)
€ 1,419.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Swivel angle: 92 deg
- Design: yoke kinematics
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8.4 bar
- Manufacturer part #
8005037
- Weight
9000 g
- Connection
G1/8
- Size
120
- Min. operating pressure
5.6 bar
- Operating medium
Compressed air
- Sealant
FPM
NBR
PUR
- Enclosure material
Aluminium wrought alloy
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2124554 FESTO Rotary actuator 8005037 DAPS-0120-090-RS4-F0710-MW Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2124554 FESTO Rotary actuator 8005037 DAPS-0120-090-RS4-F0710-MW Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DAPS -0120-090-RS4-F 0710-MW size actuator = 0120, flange drilling pattern = (* F07, * F10), tilt angle = 92 deg, shaft connection depth = 24.8 mm, note for the adjustment range of the end positions = either an end position adjustable
This text is machine translated.
This text is machine translated.
