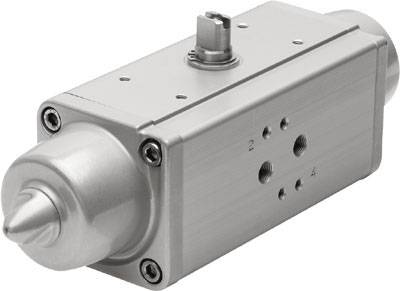

FESTO Rotary actuator 8030620 DAPS-0180-090-RS4-F0710-T4 Enclosure material: Aluminium wrought alloy 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,105.00 / piece)
€ 1,105.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Rotary actuator DAPS-0180-090-RS4-F0710-T4
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
4 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
8030620
- Type
Swivel drive DAPS -0180-090-RS4-F0710-T4 size actuator = 0180, flange drilling pattern = (* F07, * F10), tilt angle = 90 deg, adjustment range end position at 0°=-1 - 9 deg, adjustment range end position at 90° = 81 - 91 deg
- Weight
8900 g
- Operating medium
Compressed air
- Sealant
FPM
PTFE
- Pneumatics connector
G1/8"
- Enclosure material
Aluminium wrought alloy
- Material
Aluminium wrought alloy
- Max. ambient temperature
+150 °C
- Min. ambient temperature
-20 °C
- Operating principle
Single-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1945027 FESTO Rotary actuator 8030620 DAPS-0180-090-RS4-F0710-T4 Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1945027 FESTO Rotary actuator 8030620 DAPS-0180-090-RS4-F0710-T4 Enclosure material: Aluminium wrought alloy 1 pc(s)
