FESTO Rotary/linear actuator 556417 DSL-16-100-270-P-A-S20-B Enclosure material: Aluminium wrought alloy Stroke length:
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,299.00 / piece)
€ 1,299.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

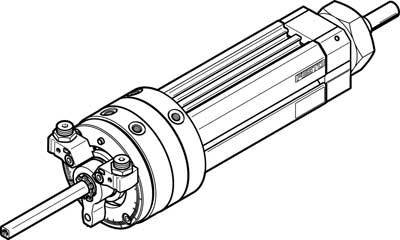

Rotary/linear actuator DSL-16-100-270-P-A-S20-B
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary/linear actuator
- Stroke length
100 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Min. device temperature
-10 °C
- Device temperature (max.)
60 °C
- Manufacturer part #
556417
- Type
Swivel linear unit DSL -16-100-270-P-A-S20-B for position detection. Rotary and linear motion control independently of each other. Rotation of 0° - 270° infinitely variable. Setting range swivel angle = 0 - 270 deg, Hub=100 mm, piston diameter = 16 mm, swivel angle = 0 - 272 deg, dampening = P: elastic damping rings/boards on both sides
- Weight
650 g
- Operating pressure (min.)
2.5 bar
- Min. operating pressure
2.5 bar
- Operating medium
Compressed air
- Sealant
TPE-U
- Pneumatics connector
M5
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Quenched steel
- Piston rod diameter
16 mm
- Force (max.)
102.5 N
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
not relevant
