FESTO Rotary/linear actuator 556657 DSL-25-25-270-P-A-S20-KF-B Stroke length: 25 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 2,229.00 / piece)
€ 2,229.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

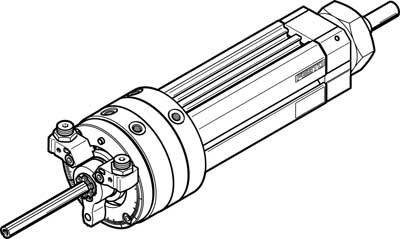

Rotary/linear actuator DSL-25-25-270-P-A-S20-KF-B
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary/linear actuator
- Stroke length
25 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
556657
- Type
Swivel linear unit DSL -25-25-270-P-A-S20-KF-B for position detection. Rotary and linear motion control independently of each other. Rotation of 0° - 270° infinitely variable. Setting range swivel angle = 0 - 270 deg, Hub = 25 mm, piston diameter = 25 mm, swivel angle = 0 - 272 deg, dampening = P: elastic damping rings/boards on both sides
- Weight
1650 g
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston rod material
Quenched steel
- Piston rod diameter
25 mm
- Force (max.)
248 N
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1944953 FESTO Rotary/linear actuator 556657 DSL-25-25-270-P-A-S20-KF-B Stroke length: 25 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1944953 FESTO Rotary/linear actuator 556657 DSL-25-25-270-P-A-S20-KF-B Stroke length: 25 mm 1 pc(s)
