FESTO Screw fastener 160512 QSL-V0-1/8-8 External thread: R1/8 Pipe diameter: 8 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 10.99 / piece)
€ 109.90
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

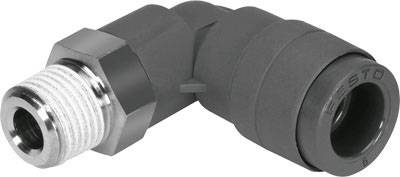

Screw fastener QSL-V0-1/8-8
Technical specifications
- Weight: 19 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Pipe Ø
8 mm
- External thread
R1/8
- Manufacturer part #
160512
- Type
L-plug-in gland QSL-V 0-1/8-8 360° can be aligned, external thread with hexagon. Size = Standard, nominal width = 4.6 mm, fire test material = UL 94 V-0 (casing), UL 94 V-0 (loose ring), seal type on the screw-in stud = coating, constructive design = Push-pull principle
- Max. operating pressure
10 bar
- Min. operating pressure
-0.95 bar
- Material
PBT
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 1940442 FESTO Screw fastener 160512 QSL-V0-1/8-8 External thread: R1/8 Pipe diameter: 8 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940442 FESTO Screw fastener 160512 QSL-V0-1/8-8 External thread: R1/8 Pipe diameter: 8 mm 1 pc(s)
Information
Information 1940442 FESTO Screw fastener 160512 QSL-V0-1/8-8 External thread: R1/8 Pipe diameter: 8 mm 1 pc(s)
