FESTO Screw fastener 186127 QSLL-G1/8-4 External thread: G1/8" Thread size: G1/8" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 6.49 / piece)
€ 64.90
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

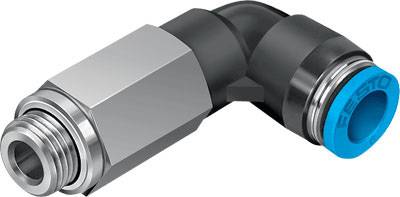

Screw fastener QSLL-G1/8-4
Technical specifications
- Weight: 14 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Thread size
G1/8"
- External thread
G1/8"
- Manufacturer part #
186127
- Type
L-long plug-in gland QSLL-G1/8-4 360° can be aligned, external thread with hexagon. Size = Standard, nominal width = 2.8 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
- Max. operating pressure
6 bar
- Min. operating pressure
-0.95 bar
- Material
PBT
- Features
P port connector (G1/8)
- Max. ambient temperature
80 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1940362 FESTO Screw fastener 186127 QSLL-G1/8-4 External thread: G1/8" Thread size: G1/8" 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940362 FESTO Screw fastener 186127 QSLL-G1/8-4 External thread: G1/8" Thread size: G1/8" 1 pc(s)
Information
Information 1940362 FESTO Screw fastener 186127 QSLL-G1/8-4 External thread: G1/8" Thread size: G1/8" 1 pc(s)
