FESTO Screw fastener 186293 QSRL-G1/2-12 External thread: G1/2" Pipe diameter: 12 mm Thread size: 1/2" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 61.99 / piece)
€ 61.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Screw fastener QSRL-G1/2-12
Technical specifications
- Weight: 81 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Pipe Ø
12 mm
- Thread size
1/2"
- External thread
G1/2"
- Manufacturer part #
186293
- Type

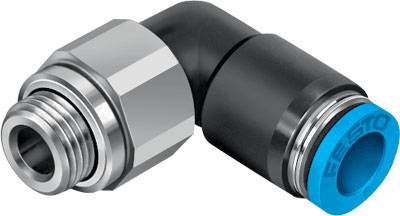

L-rotation plug-in gland QSRL-G1/2-12 360° rotating, with ball bearing, external thread with hexagon. Size = Standard, nominal width = 7.4 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 1
- No. of ports
2 x
- Max. operating pressure
6 bar
- Min. operating pressure
-0.95 bar
- Operating medium
Druckluft nach ISO 8573-1:2010 [7:-:-]
- Material
PBT
- Material properties
rust-proof
- Features
Pivoted
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1940400 FESTO Screw fastener 186293 QSRL-G1/2-12 External thread: G1/2" Pipe diameter: 12 mm Thread size: 1/2" 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940400 FESTO Screw fastener 186293 QSRL-G1/2-12 External thread: G1/2" Pipe diameter: 12 mm Thread size: 1/2" 1 pc(s)
Information
Information 1940400 FESTO Screw fastener 186293 QSRL-G1/2-12 External thread: G1/2" Pipe diameter: 12 mm Thread size: 1/2" 1 pc(s)
