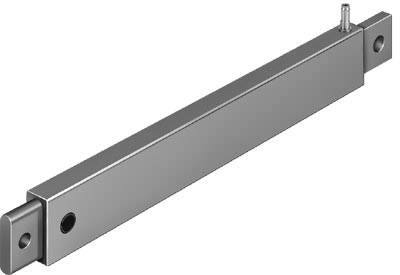

Name: FESTO Slimline cylinder 164991 EZH-2,5/9-10-B Enclosure material: Aluminium Stroke length: 10 mm 1 pc(s)
Brand: FESTO
SKU: 2116101
Availability: BackOrder

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Slimline cylinder

Stroke length: 10 mm

Max. operating pressure: 6 bar

(Ø): 6 mm

Manufacturer part #: 164991

Weight: 11 g

Min. operating pressure: 2.8 bar

Operating medium: Compressed air

Sealant: TPE-U

Enclosure material: Aluminium

Piston diameter: 6 mm

Material: Aluminium

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

Operating principle: Single-acting

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2116101 FESTO Slimline cylinder 164991 EZH-2,5/9-10-B Enclosure material: Aluminium Stroke length: 10 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2116101 FESTO Slimline cylinder 164991 EZH-2,5/9-10-B Enclosure material: Aluminium Stroke length: 10 mm 1 pc(s)

Information

Information 2116101 FESTO Slimline cylinder 164991 EZH-2,5/9-10-B Enclosure material: Aluminium Stroke length: 10 mm 1 pc(s)

Description

Flat Cylinder EZH -2,5/9-10-B verdrehgesichert. Hub = 10 mm, piston diameter = (* 6 mm, * Equivalent diameter), attenuation = no attenuation, mounting position=any, mode of operation = (* single-acting, * repelling)

This text is machine translated.
