Image similar

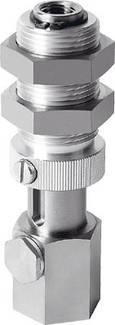

FESTO Suction cup holder ESH-HCL-6-G 189232 G 1/4 Enclosure material POM
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 355.00 / piece)
€ 355.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Fastening method: With lock nut
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- Installation position vertical
- Height compensation suction cup holder 40 mm
- Design: Vacuum connection at the top
- With height compensation
- Corrosion resistance class KBK: 1 - low corrosion stress
- Product weight: 60 g
- Suction unit mounting: M20x2
- Ambient temperature: -10 ... 60 °C
- Vacuum connection: g1/4
- Volume: 16,325 cm3
- Material holder: POM
- Quenched steel
- High alloyed steel
- Material note: RoHS compliant
- Allocation of suction cup holder: Size 6
- Operating medium
Atmospheric air
- Type
189232
- Product type
Suction cup holder
- Enclosure material
POM
- Connection
G 1/4
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
189232
- Weight
560 g
- Medium
Natural air
- Height
40 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203812 FESTO Suction cup holder ESH-HCL-6-G 189232 G 1/4 Enclosure material POM
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
