Name: FESTO Suction cup holder ESH-HDL-1-QS 189243 QS-4 Enclosure material POM Sealant NBR
Brand: FESTO
SKU: 2203823
Availability: BackOrder

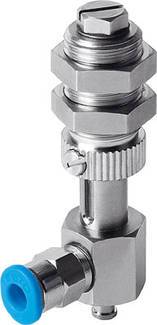

A metallic valve with a blue cap, used for flow control in a pneumatic system.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Fastening method: With lock nut
Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
Installation position vertical
Height compensation suction cup holder: 10 mm
Design: Vacuum connection on the side
With height compensation
Corrosion resistance class KBK: 1 - low corrosion stress
Product weight: 20 g
Suction unit mounting: Diameter 3 mm
Ambient temperature: 0 ... 60 °C
Vacuum connection: QS-4
Volume: 0.272 cm3
Material seals: NBR
Steel
Material holder: POM
Quenched steel
High alloyed steel
Material note: RoHS compliant
Allocation of suction cup holder: Size 1

Operating medium: Atmospheric air

Type: 189243

Product type: Suction cup holder

Enclosure material: POM

Connection: QS-4

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Manufacturer part #: 189243

Sealant: NBR

Weight: 29 g

Medium: Natural air

Height: 10 mm

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Enclosure material

FESTO Suction cup holder ESH-HA-1-PK 189194 PK-3 Enclosure material Quenched steel Sealant NBR

Item no:2203774

Dispatches on Tue 27 Oct

Conrad Electronic

PK-3

Quenched steel

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

FESTO Suction cup holder ESH-HA-1-QS 189193 QS-4 Sealant NBR

Item no:2203773

Dispatches on Tue 27 Oct

Conrad Electronic

QS-4

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

FESTO Suction cup holder ESH-HA-2-PK 189196 PK-4 Enclosure material POM Sealant NBR

Item no:2203776

Dispatches on Tue 27 Oct

Conrad Electronic

PK-4

POM

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

FESTO Suction cup holder ESH-HA-2-QS 189195 QS-6 Enclosure material POM Sealant NBR

Item no:2203775

Dispatches on Tue 27 Oct

Conrad Electronic

QS-6

POM

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

FESTO Suction cup holder ESH-HA-3-PK 189198 PK-4 Enclosure material POM Sealant NBR

Item no:2203778

Dispatches on Tue 27 Oct

Conrad Electronic

PK-4

POM

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

FESTO Suction cup holder ESH-HA-3-QS 189197 QS-6 Enclosure material POM Sealant NBR

Item no:2203777

Dispatches on Tue 27 Oct

Conrad Electronic

QS-6

POM

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*

FESTO Suction cup holder ESH-HA-4-PK 189200 PK-4 Enclosure material POM Sealant NBR

Item no:2203780

Dispatches on Tue 27 Oct

Conrad Electronic

PK-4

POM

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

FESTO Suction cup holder ESH-HA-4-QS 189199 QS-6 Sealant NBR

Item no:2203779

Dispatches on Tue 27 Oct

Conrad Electronic

QS-6

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*

FESTO Suction cup holder ESH-HA-5-G 189201 G 1/8 Enclosure material POM

Item no:2203781

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

POM

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

FESTO Suction cup holder ESH-HA-6-G 189202 G 1/4 Enclosure material POM

Item no:2203782

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

POM

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 67.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2203823 FESTO Suction cup holder ESH-HDL-1-QS 189243 QS-4 Enclosure material POM Sealant NBR

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
