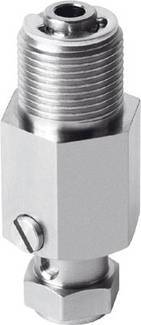

FESTO Suction cup holder ESH-HF-3-M14X1 189262 M14 Nominal width (details) 3.3 mm Enclosure material Quenched steel Seal
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 65.99 / piece)
€ 65.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Fastening method: With external thread
- Via vacuum connection
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- Installation position vertical
- Height compensation suction cup holder: 6 mm
- Design: Vacuum connection at the top
- With height compensation
- Corrosion resistance class KBK: 1 - low corrosion stress
- Nominal diameter 3.3 mm
- Product weight: 54 g
- Suction unit mounting: M4
- Ambient temperature: -10 ... 60 °C
- Vacuum connection: M14x1
- Volume: 0.4 cm3
- Material seals: NBR
- POM
- Material holder: Quenched steel
- Material note: RoHS compliant
- Allocation of suction cup holder: Size 3
- Operating medium
Atmospheric air
- Type
189262
- Product type
Suction cup holder
- Enclosure material
Quenched steel
- Connection
M14
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
189262
- Sealant
NBR
- Weight
54 g
- Medium
Natural air
- Nominal width
3.3 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203840 FESTO Suction cup holder ESH-HF-3-M14X1 189262 M14 Nominal width (details) 3.3 mm Enclosure material Quenched steel Seal
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
