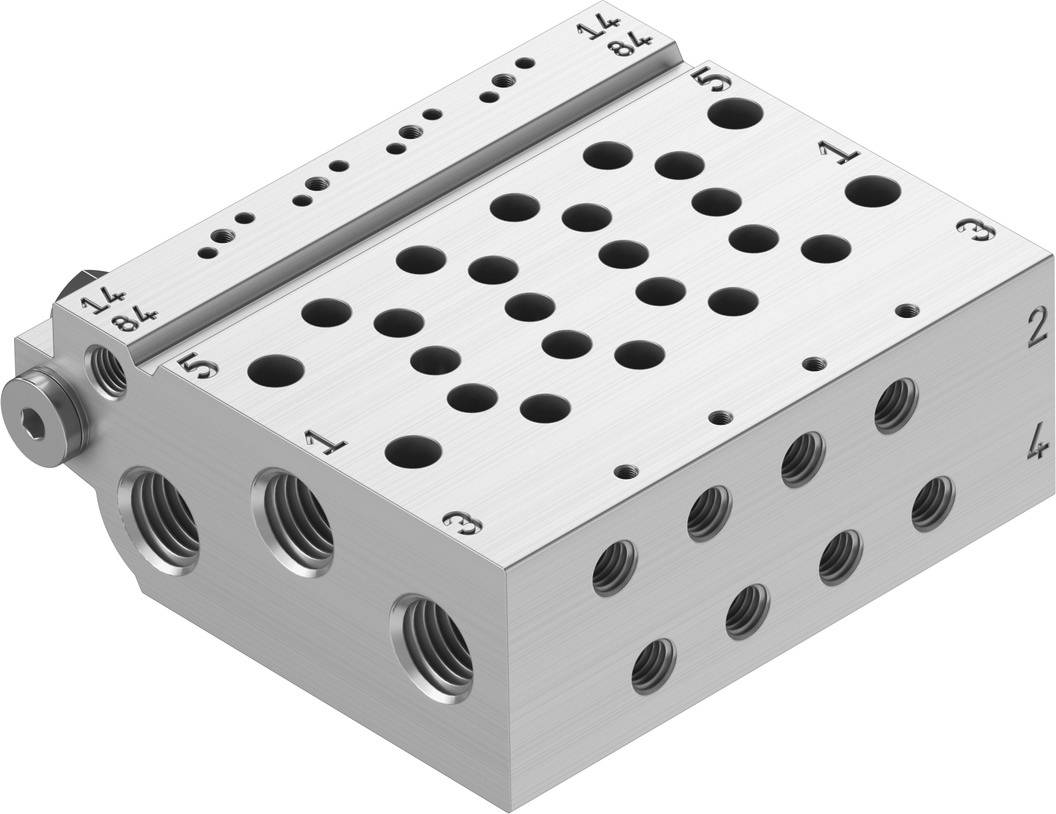

FESTO Terminal block 566584 VABM-L1-10W-G18-4 -0.9 up to 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 87.99 / piece)
€ 87.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
TERMINAL BLOCK VABM-L1-10W-G18-4
Technical specifications
- Product type
Terminal block
- Type
Terminal strip VABM-L 1-10 W G 18-4 grid dimension = 10.5 mm, Max. Number of valve seats = 16, operating pressure = 0.9 - 10 bar, corrosion resistance class KBK = 2 - moderate corrosion stress, approval = (* RCM mark, * c CSA us (oil), *C UL US recognized (oil))
- Manufacturer part #
566584
- Material (details)
Aluminum wrought alloy
- Connection
|||| G1/8 G1/8 G1/8
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.9 bar
- Pressure range
-0.9 up to 10 bar
- Packaging type
Carton
- UKCA
not relevant
