FESTO Terminal block 566652 VABM-L1-14W-G14-14 -0.9 up to 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 234.99 / piece)
€ 234.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

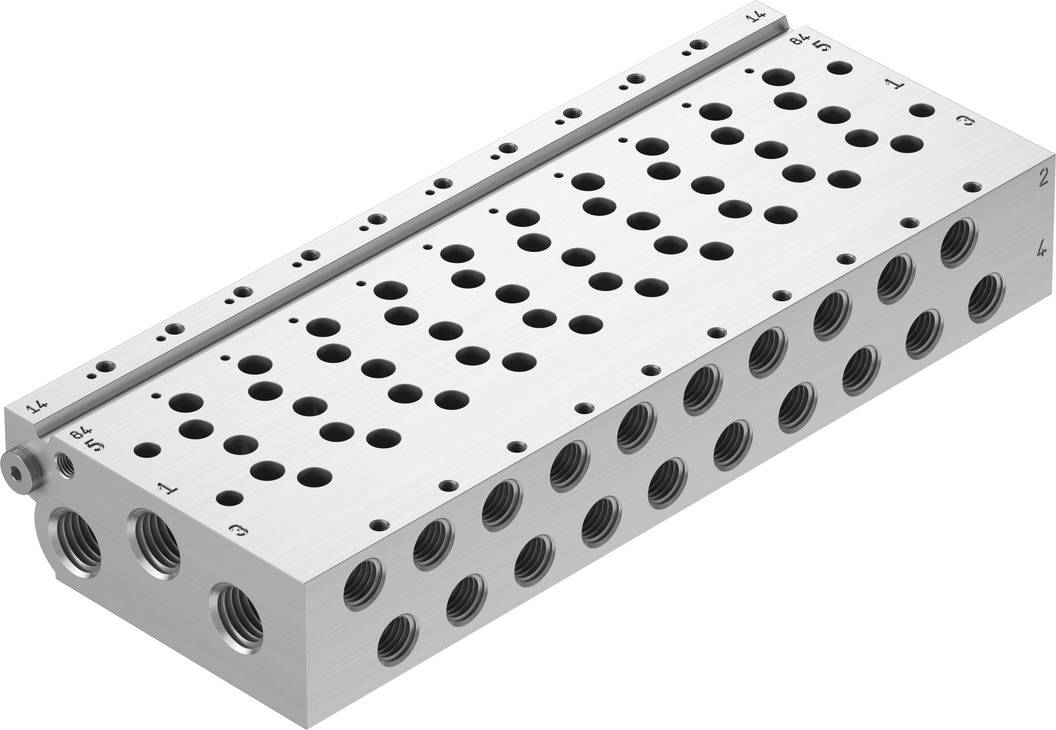

TERMINAL BLOCK VABM-L1-14W-G14-14
Technical specifications
- Product type
Terminal block
- Type
Terminal strip VABM-L 1-14 W G 14-14 Spacing = 16 mm, Max. Number of valve seats = 16, operating pressure = 0.9 - 10 bar, corrosion resistance class KBK = 2 - moderate corrosion stress, approval = (* RCM mark, * c CSA us (oil), *C UL US recognized (oil))
- Manufacturer part #
566652
- Material (details)
Aluminum wrought alloy
- Connection
|||| G1/4 G1/4 G1/4
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.9 bar
- Pressure range
-0.9 up to 10 bar
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1935778 FESTO Terminal block 566652 VABM-L1-14W-G14-14 -0.9 up to 10 bar
User & Safety Instructions
User & Safety Instructions 1935778 FESTO Terminal block 566652 VABM-L1-14W-G14-14 -0.9 up to 10 bar
