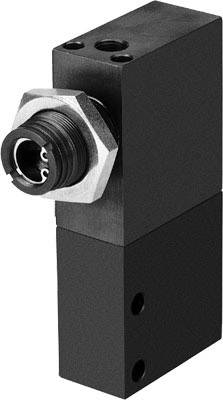

FESTO Time delay valve 3488 VZB-3-1/4 0 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 879.00 / piece)
€ 879.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Mounting type: With Through Hole
- Normal nominal flow rate: 600 l/min
- Adjustable delay time: 0 s-30s
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Time delay valve
- Manufacturer part #
3488
- Connection
G1/8, G1/4
- Max. operating pressure
10 bar
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 10 bar
- Operating medium
Compressed air
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2115134 FESTO Time delay valve 3488 VZB-3-1/4 0 up to 10 bar 1 pc(s)
Information
Information 2115134 FESTO Time delay valve 3488 VZB-3-1/4 0 up to 10 bar 1 pc(s)
Description
Time delay valve VZB-3-1/4 operating pressure = 0 - 10 bar, normal rated flow = 600 l/min, adjustable delay time = 0 - 30 s according to ISO 8573-1, operating medium = compressed air: 2010 [7:-:-], note for the operating and control medium = oiled operation possible (in the further operation is required)
This text is machine translated.
This text is machine translated.
