Name: FESTO Time delay valve 5755 VZ-3-PK-3 2.5 up to 8 bar 1 pc(s)
Brand: FESTO
SKU: 2115193
Availability: BackOrder

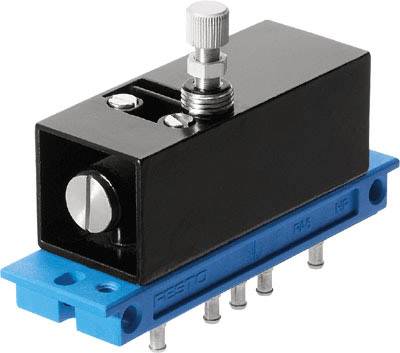

A black Festo pneumatic valve with a pressure regulator on top. It is positioned on a blue mounting base with multiple connections.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 315.00 / piece)

€ 315.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Design: seat valve with return spring
Operating method: pneumatic
Normal nominal flow rate: 90 l/min
Ambient temperature: -10 °C to +60 °C
Product weight: 150 g
Nominal width: 2mm
Adjustable delay time: 0.25 s-5s

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Time delay valve

Manufacturer part #: 5755

Material (details): Body: Zinc die-cast

Connection: PK-3

Max. operating pressure: 8 bar

Operating pressure (min.): 2.5 bar

Pressure range: 2.5 up to 8 bar

Operating medium: Compressed air

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2115193 FESTO Time delay valve 5755 VZ-3-PK-3 2.5 up to 8 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2115193 FESTO Time delay valve 5755 VZ-3-PK-3 2.5 up to 8 bar 1 pc(s)

Information

Information 2115193 FESTO Time delay valve 5755 VZ-3-PK-3 2.5 up to 8 bar 1 pc(s)

Description

Time delay valve VZ-3-PK-3 unbetaitgt no continuity, on 2 n-connection plate with plug nipple connection for hose NW 3. Nominal width = 2 mm, operating method = pneumatically, constructive design = seat valve with return spring, Operating pressure = 2.5 - 8 bar, normal rated flow = 90 l/min

This text is machine translated.
