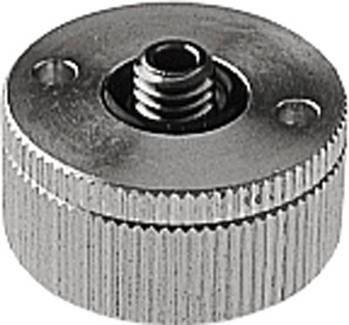

FESTO Vacuum filter ESF-4B 191204 M6 Enclosure material Aluminium Sealant NBR
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 134.99 / piece)
€ 134.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Fastening method: With external thread
- Via vacuum connection
- Operating pressure: -0.95 ... 4 bar
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- Flow at vacuum = -0.75 bar: 270 l/min.
- All mounting positions permitted
- Filter size: 10 µm
- Corrosion resistance class KBK: 1 - low corrosion stress
- Pneumatic connection: M6
- Product weight: 19 g
- Ambient temperature: 0 ... 60 °C
- Vacuum connection: M6
- Material seals: NBR
- Material filter PVF
- Material casing: Aluminum
- Brass, nickel plated
- Material information: Free of copper and PTFE
- Complies with RoHS
- Operating medium
Atmospheric air
- Product type
Vacuum filter
- Enclosure material
Aluminium
- Connection
M6
- Max. operating pressure
4 bar
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
191204
- Operating pressure (min.)
-0.95 bar
- Sealant
NBR
- Weight
19 g
- Medium
Natural air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204077 FESTO Vacuum filter ESF-4B 191204 M6 Enclosure material Aluminium Sealant NBR
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
