Name: Fischer 539446 Pipe clamp The FRS L UNIVERSAL 20-24 pipe clamp 25 pc(s)
Brand: Fischer
SKU: 1878723
Availability: InStock

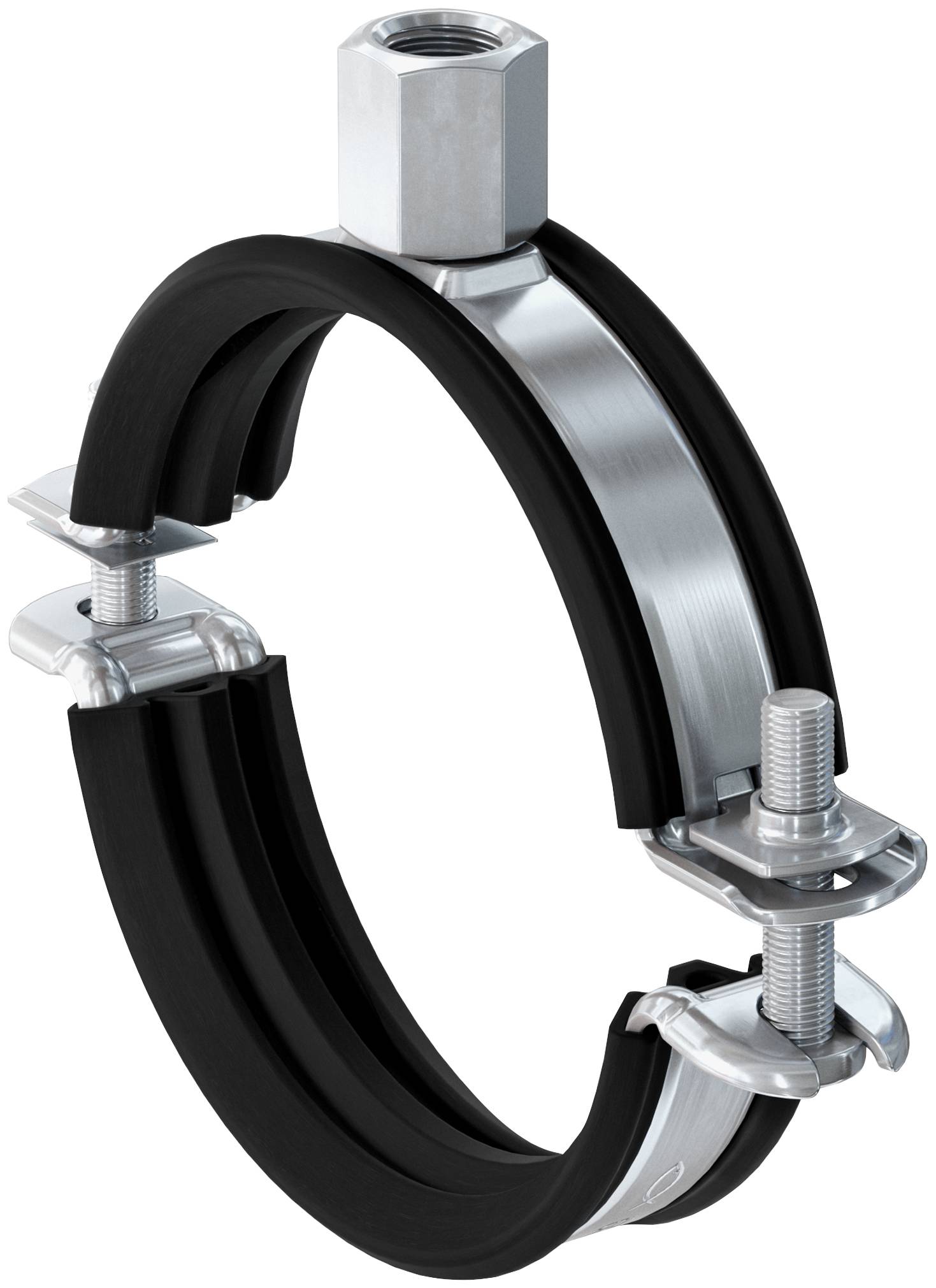

Stainless steel pipe clamp with black rubber lining, open circular design and threaded bolts for securing a pipe.

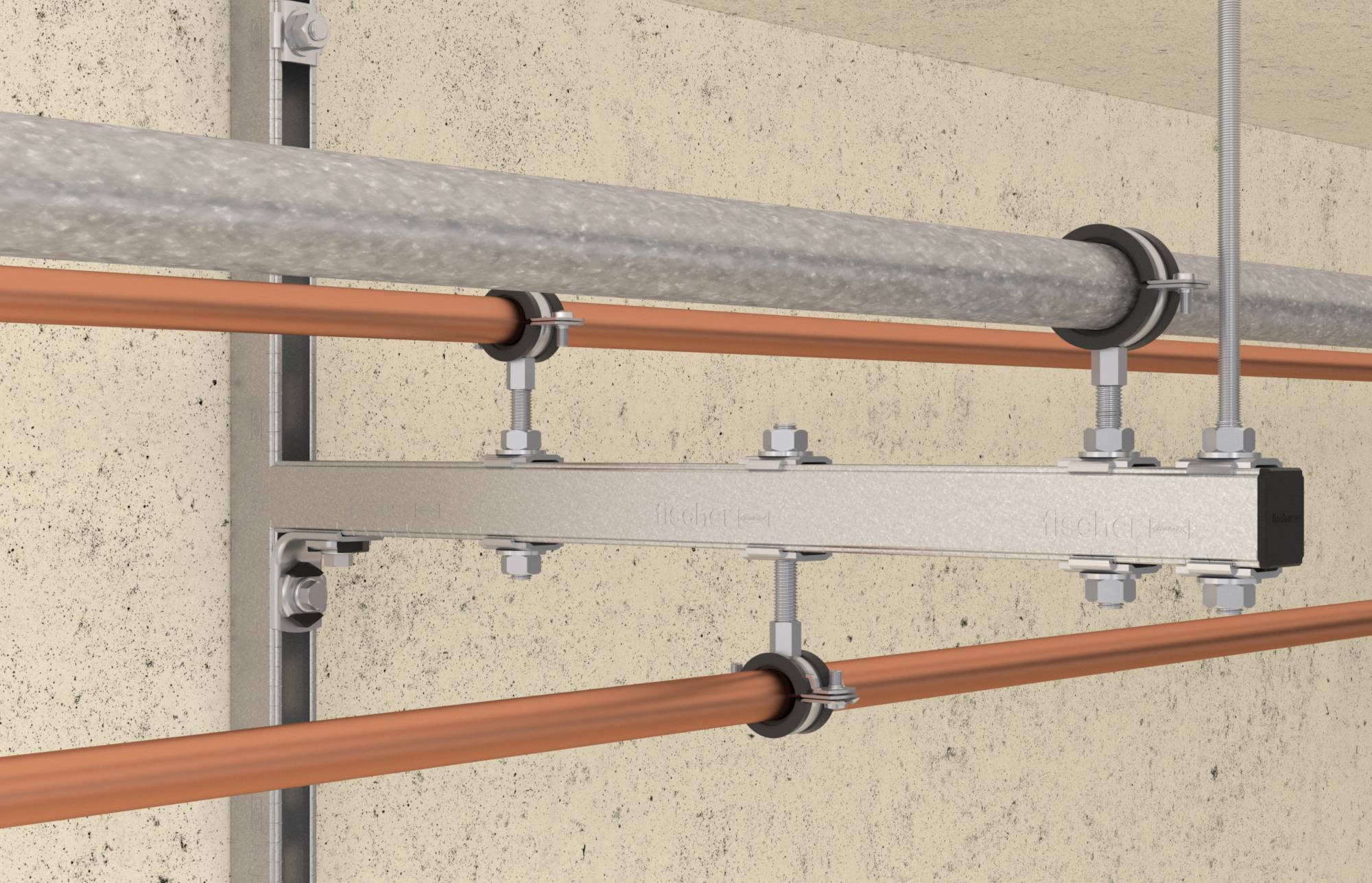

Cable trays and conduits mounted on a wall with metal brackets and clamps, showing an electrical or piping installation detail.

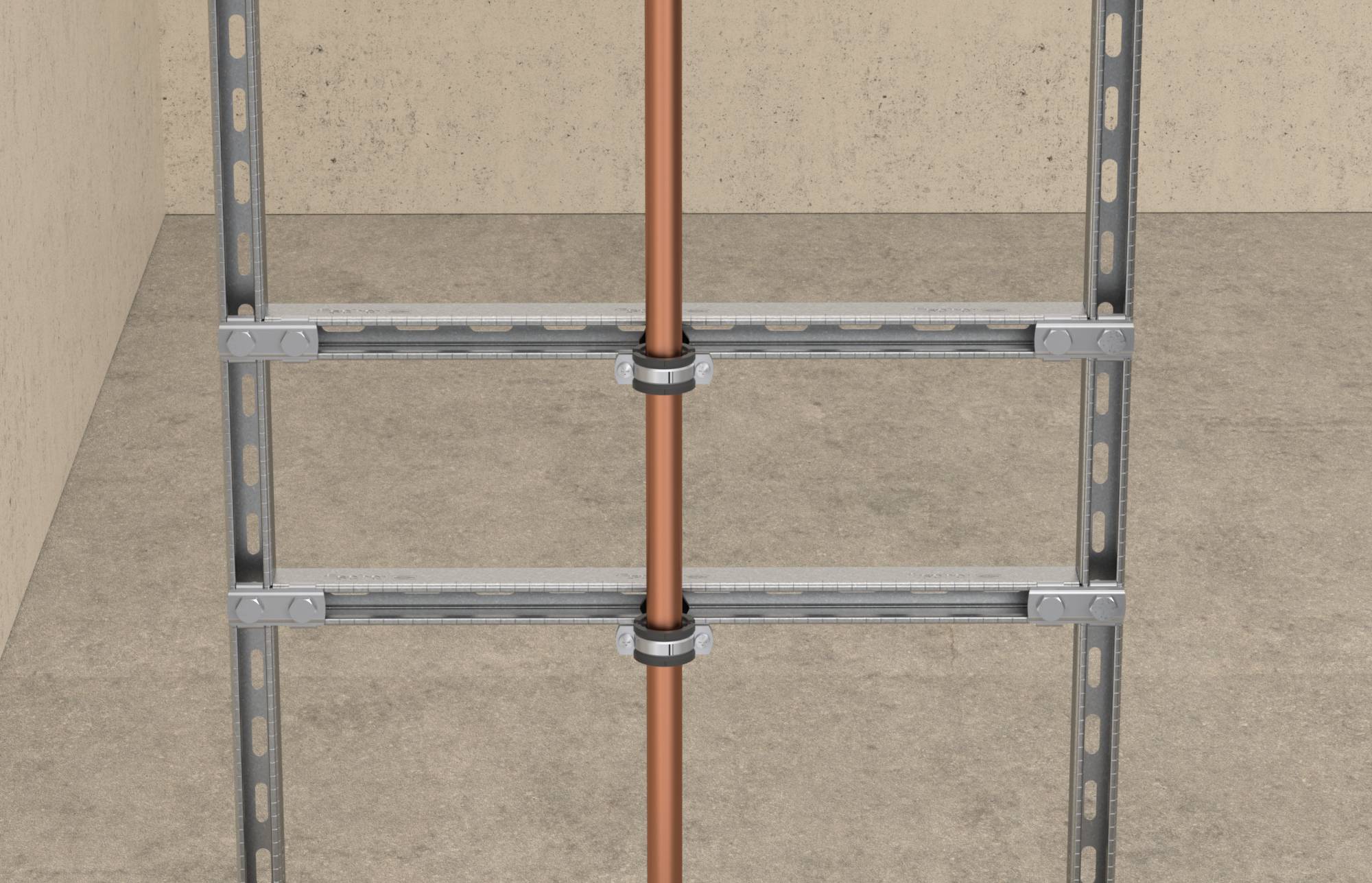

Copper pipe secured vertically to a metal wall frame with two clamps in front of a concrete wall.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

14 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 28.99 / piece)

€ 28.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by TOOLCRAFT

TOOLCRAFT 137790 Pipe clamp Toolcraft Mounted Pipe Clamp DIN 4109 Zn-PLated Steel 23 mm (100 pcs) 23 mm Electrogalvanise

Dispatches on Mon 2 Nov

€ 164.99

incl. VAT plus

Highlights & Details

The FRS L UNIVERSAL 20-24 pipe clamp

Profiled band for outstanding rigidity and stability
Optimised hold between sound insulation insert and clamp band
Combination thread for flexible connection options
Losses protected screws
Fire protection testing R120
Sample wiring directive test MLAR R30

Technical specifications

Nominal size: 1/2"
Width x thickness clamp band: 18 x 1.0 mm

Product type: Pipe clamp

Content: 25 pc(s)

Material: Steel

Clamping range: 20 up to 24 mm

Thread size: M8
M10

Material properties: zinc galvanized

Width: 61 mm

Height: 48 mm

Range (max.): 24 mm

Clamping range (min.): 20 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1878723 Fischer 539446 Pipe clamp The FRS L UNIVERSAL 20-24 pipe clamp 25 pc(s)

Description

The fire test report and the sound insulation test report guarantee an objectively tested functional safety.
The unique quick-release fastener with all-round edges enables a safe and time-saving mounting.
The clamping band with pronounced beads at edge give an insulated inlay a secure hold and prevents it from falling out during pipe adjustment.
The two-screw design of the FRS-L universal allows optimum adaptation to each pipe's external diameter.
The connection nut with combination thread M8 / M10 enables an optimized bearing retention.
The loss protection of the screw ensures an easy mounting.
The PH3/TX25 combined drive of the screw increases flexibility during assembly.

This text is machine translated.
