Name: Fischer 539449 Pipe clamp The FRS L UNIVERSAL 38-45 pipe clamp 25 pc(s)
Brand: Fischer
SKU: 1879322
Availability: InStock

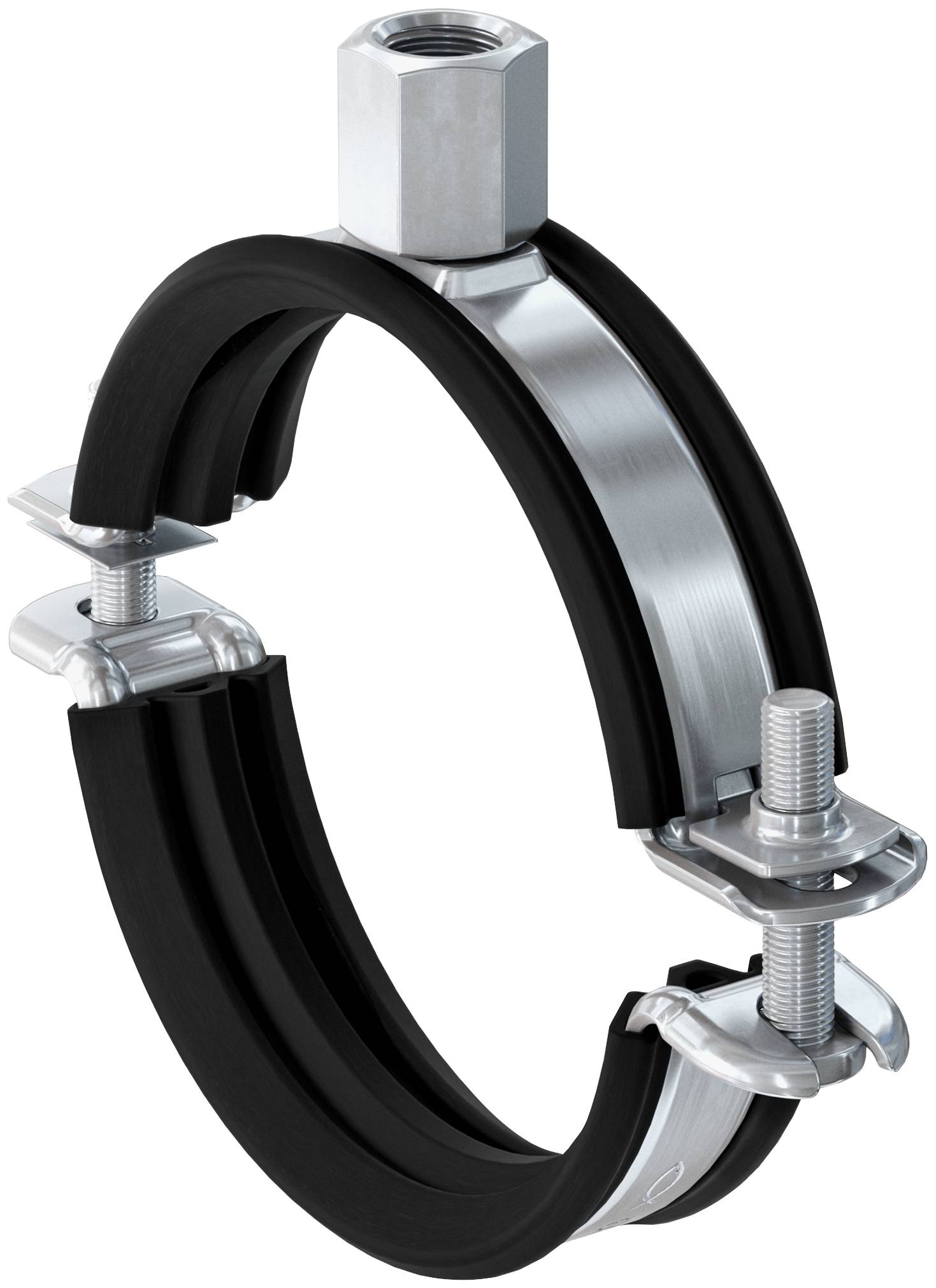

Metal pipe clamp with black rubber lining and threaded bolts, shown on a white background.<br>

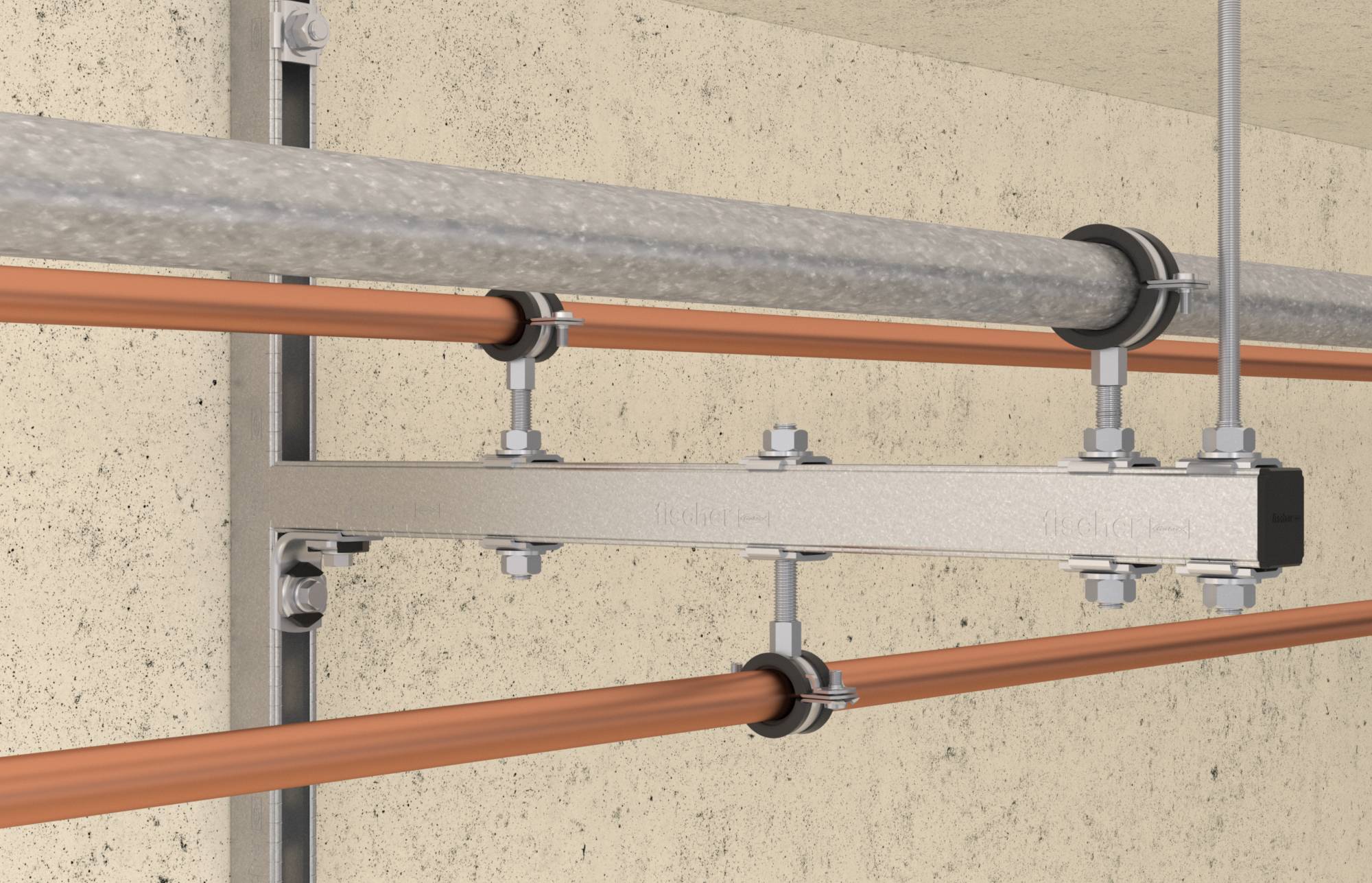

Mounted cable tray supports and clamps securing orange electrical conduits and a gray pipe to a concrete wall<br>

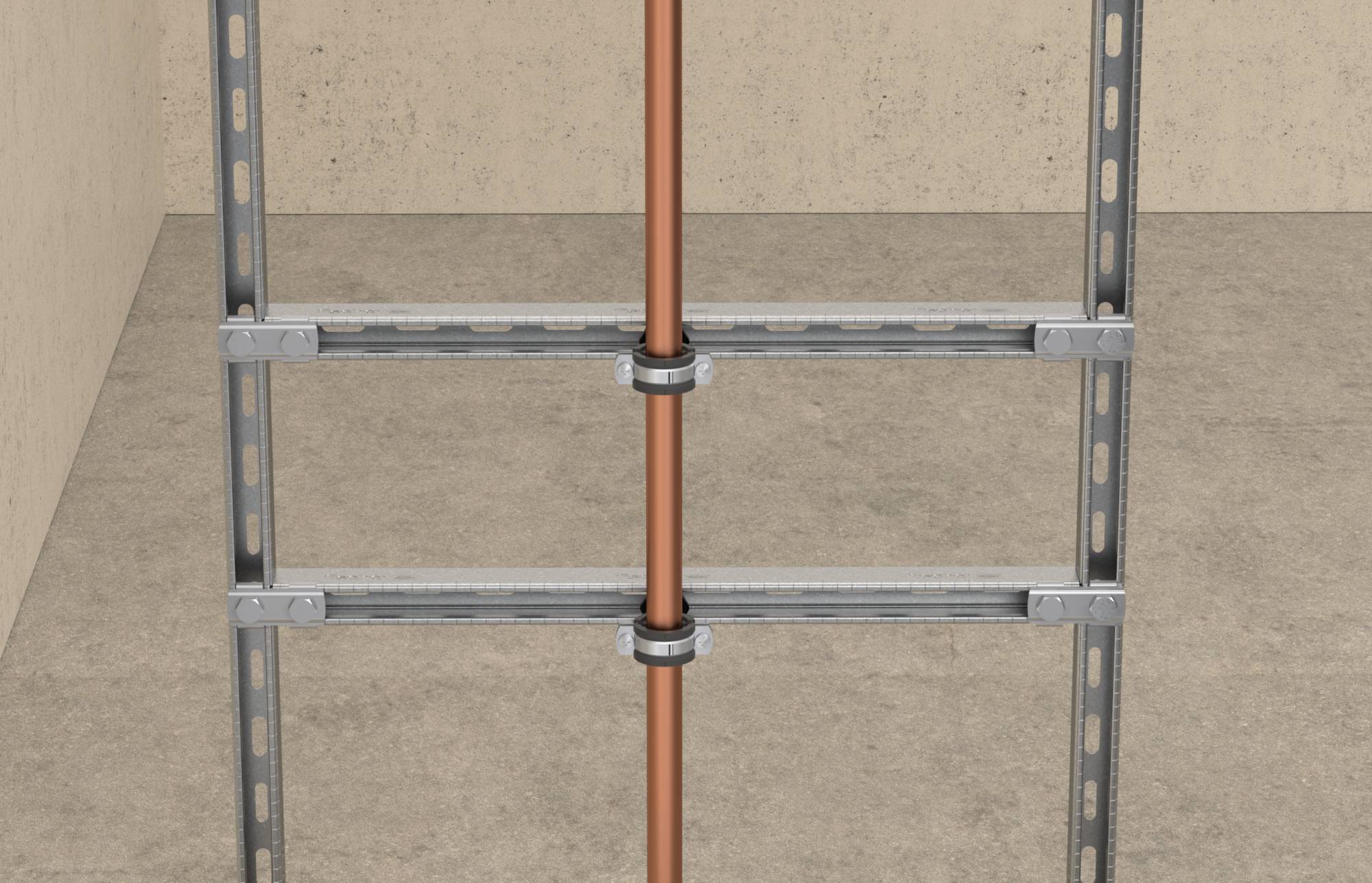

Metal wall-mounted support frame with a vertical copper pipe secured by two clamps.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 35.99 / piece)

€ 35.99

incl. VAT

Only 5 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

The FRS L UNIVERSAL 38-45 pipe clamp

Profiled band for outstanding rigidity and stability
Optimised hold between sound insulation insert and clamp band
Combination thread for flexible connection options
Losses protected screws
Fire protection testing R120
Sample wiring directive test MLAR R30

Technical specifications

Nominal size: 1 1/4"
Width x thickness clamp band: 18 x 1.2 mm

Product type: Pipe clamp

Content: 25 pc(s)

Material: Steel

Clamping range: 38 up to 45 mm

Thread size: M8
M10

Material properties: zinc galvanized

Width: 83 mm

Height: 69 mm

Range (max.): 45 mm

Clamping range (min.): 38 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1879322 Fischer 539449 Pipe clamp The FRS L UNIVERSAL 38-45 pipe clamp 25 pc(s)

Description

The Fischer FRS-L universal pipe clamp is a two-screw pipe clamp made of galvanized DD11 material quality with combination connection thread M 8/M 10 and a proof of sound protection. The quick-locking mechanism guarantees an easy and time-saving mounting. The two-bolt design allows optimum adaptation to the outside diameter of the pipe. This increases flexibility together with the combined connection thread. This allows pipes with an external diameter of 8 - 119 mm with threaded rod or stock screw to be fixed in accordance with the fire protection requirements of the fire resistance class R 120 and the MLAR in the interior. The pipe clamp conforms to the requirements of DIN 4109 with a chlorine and silicone-free soundproofing.

This text is machine translated.
