Name: Fischer FUS 41/1,5 - 3 m 545126 Rail mount Steel 3000 mm 1 pc(s)
Brand: Fischer
SKU: 2157955

Highlights & Details

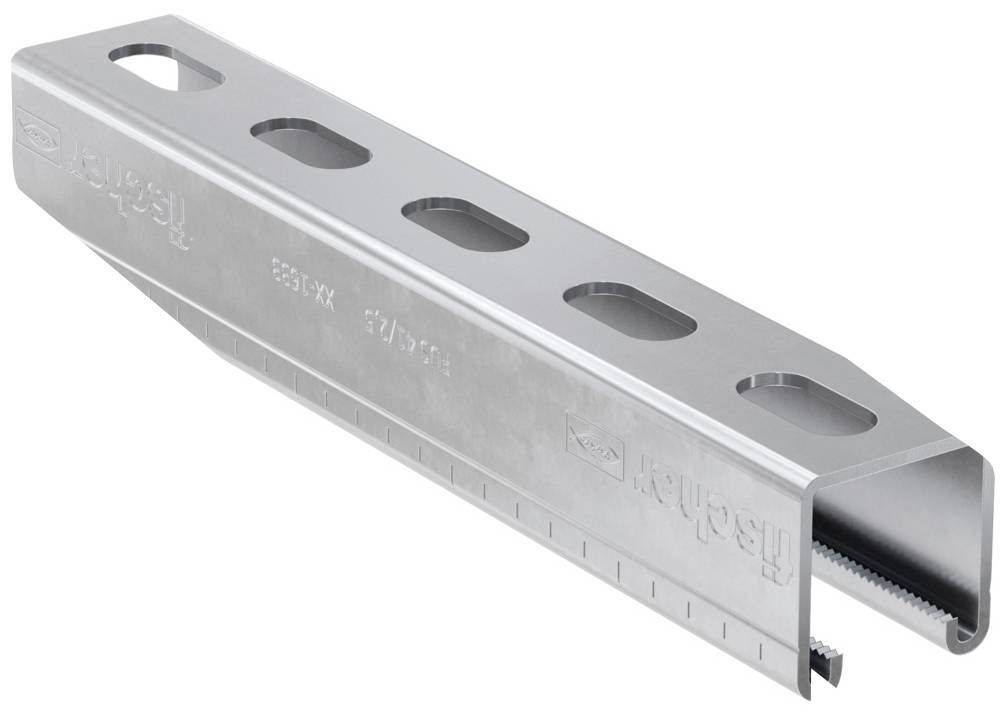

Mounting rail FUS 41/1.5 - 3 m

Fire protection test R120.
Sample wiring system guidelines test MLAR R30.
Transmitter zinc-plated min. 15 µm.
Scaling on the mounting rails.
Slotted holes for more mounting flexibility.

Technical specifications

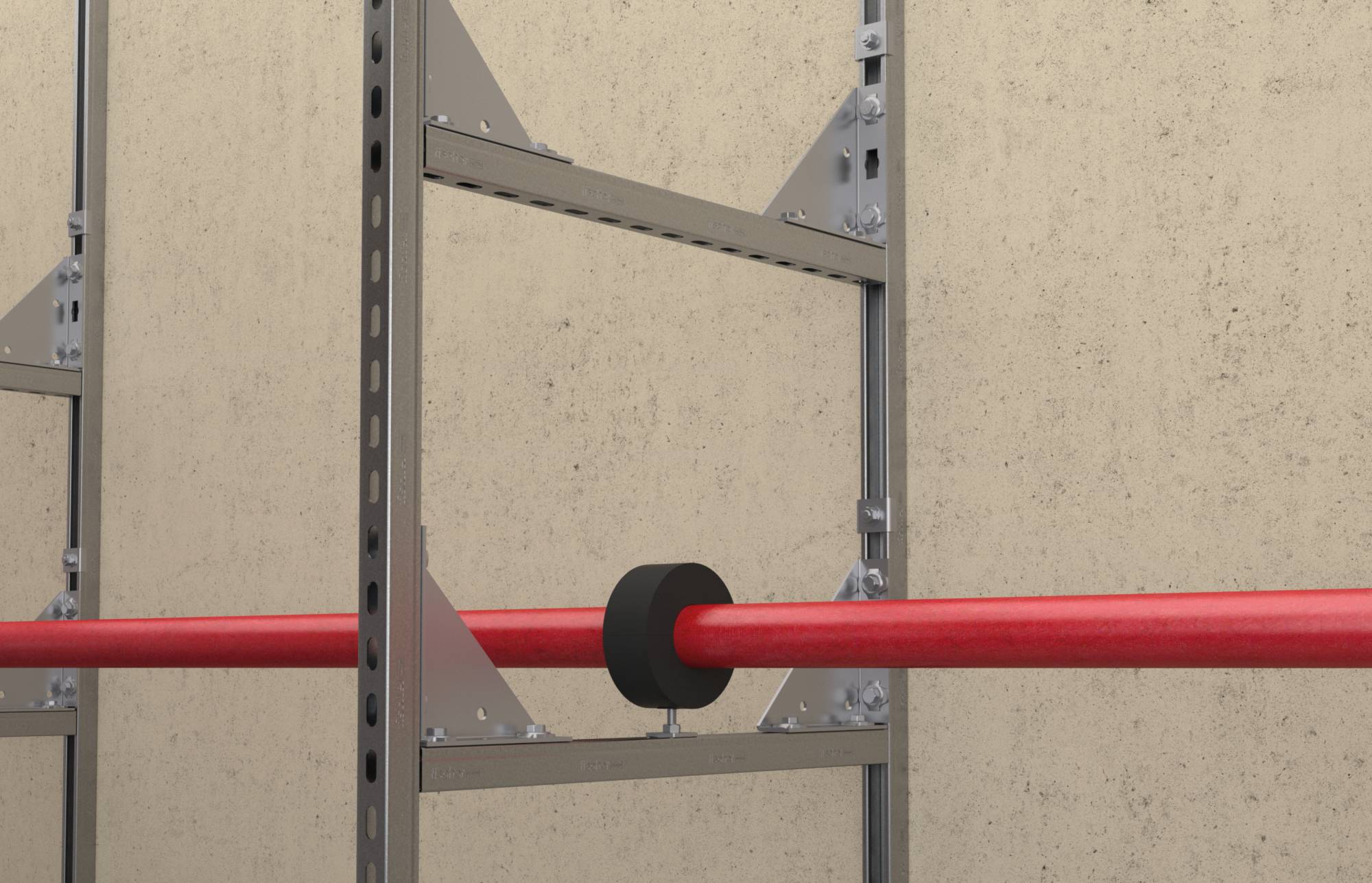

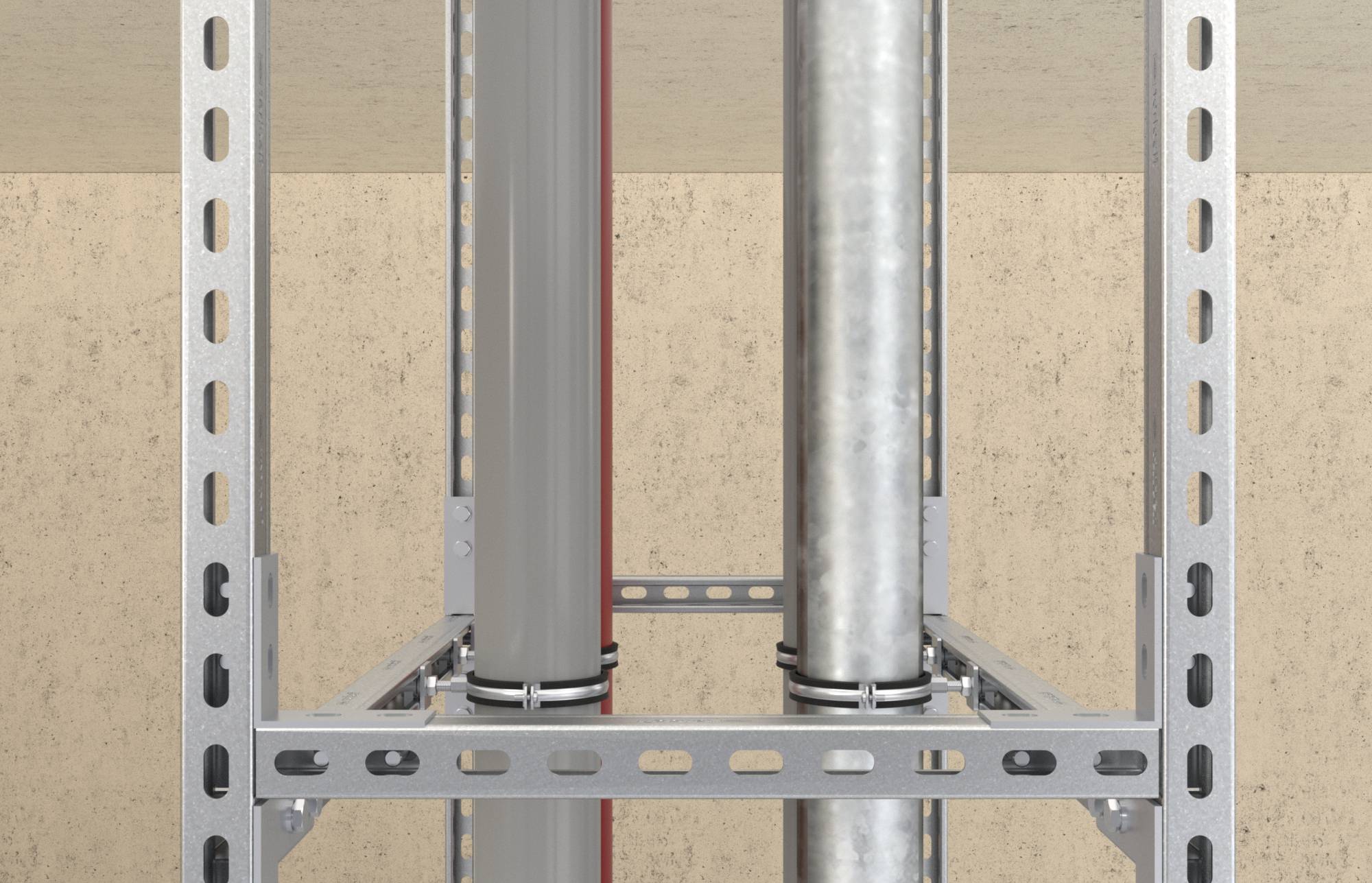

Applications: Safe horizontal and vertical installations, fast and efficient attachment of pipe runs and supporting structures
Load level: Medium
Recommended load/at length max.: 1 m/1.56 kN, 2 m/0.54 kN, 3 m/0.24 kN
Profile weight 1.80 kg/m
Profile cross-section: 1.95 cm²
Profile strength: 1.5 mm

Product type: Rail mount

Material: Steel

Material properties: zinc galvanized

Length: 3000 mm

Weight: 5.4 kg

Content: 1 pc(s)

Type: FUS 41/1,5 - 3 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2157955 Fischer FUS 41/1,5 - 3 m 545126 Rail mount Steel 3000 mm 1 pc(s)

Description

The universal and complete mounting rail system for a wide range of applications. The high-quality Fischer FUS 41/1.5 - 3 m mounting rail is a U-profile mounting rail for producing secure horizontal and vertical installations. Makes possible the fast and efficient attachment of tubes and carrying structures The track geometry ensures the use of the extensive Fischer range of accessories. The pronounced teeth in the rail provide the slide nut with a secure hold at vertical mounting and high transverse loads. Different rail wall thicknesses allow a economical rail construction. The scaling on the mounting rails simplifies the cutting and placing of the components. Slotted holes in the rail allow more flexibility in the assembly of the attachments.

This text is machine translated.

Features

The fire test report in accordance with MLAR/EN13501 guarantees objectively tested functional safety.
The same track basic geometry ensures the use of the extensive range of accessories for all rail dimensions.
The pronounced teeth in the rail provide the slide nut with a secure hold to accept high transverse loads, such as vertical mounting.
Different rail wall thicknesses allow a economical rail construction.
The scaling on the mounting rails simplifies the cutting and placing of the attachment parts during mounting.

Description

The universal and complete mounting rail system for a wide range of applications. The high-quality Fischer FUS 41/1.5 - 3 m mounting rail is a U-profile mounting rail for producing secure horizontal and vertical installations. Makes possible the fast and efficient attachment of tubes and carrying structures The track geometry ensures the use of the extensive Fischer range of accessories. The pronounced teeth in the rail provide the slide nut with a secure hold at vertical mounting and high transverse loads. Different rail wall thicknesses allow a economical rail construction. The scaling on the mounting rails simplifies the cutting and placing of the components. Slotted holes in the rail allow more flexibility in the assembly of the attachments.

This text is machine translated.

Features

The fire test report in accordance with MLAR/EN13501 guarantees objectively tested functional safety.
The same track basic geometry ensures the use of the extensive range of accessories for all rail dimensions.
The pronounced teeth in the rail provide the slide nut with a secure hold to accept high transverse loads, such as vertical mounting.
Different rail wall thicknesses allow a economical rail construction.
The scaling on the mounting rails simplifies the cutting and placing of the attachment parts during mounting.
