Flexa 10233202012 Conduit Black 12.0 mm 50 m
Product type
Conduit
Content
50 m
Conduit features
halogen-free
UV-resistant
oil-resistant
Inside diameter
12.0 mm
Outside Ø
15.8 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Conduit
- Content
50 m
- Factory colour
Black
- Conduit features
halogen-free
UV-resistant
oil-resistant
- Inside diameter
12.0 mm
- Outside Ø
15.8 mm
- Max. temperature
120 °C
- Min. temperature
-40 °C
- Bend radius
flexible;static - 35 mm;dynamic - 55 mm
- Fire protection properties
V0
- Manufacturer part #
10233202012
- Type
10233202012
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818528 Flexa 10233202012 Conduit Black 12.0 mm 50 m
Description

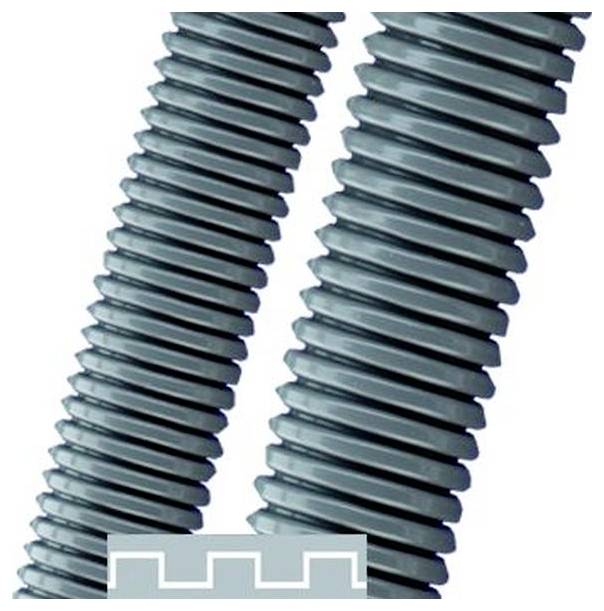

Solid plastic corrugated hose ROHRflex PA 6, V0 (UL 94), rings, standard, for almost all applications, curled inside and outside, narrow profile Material: Plastic (PA), color: Black (also available in gray) Temperature range: -40°C....+120°C ^ ... 150°C Approvals: VDE tested EN/IEC 61386-23 / UL 1696 - CSA 22.2 UR-File-no E86359 / Lloyds Register of Shipping / DNV / EN 45545 (HL3) / NFPA 130 - ASTM E 162-E 662 SMP 800-C / UNI CEI 11170 / GGVSEB / CE Properties: air and fluid tight / oil resistant up to +80°C / petrol resistant / largely acid and solvent resistant / silicone, cadmium, halogen-free / self-extinguishing / flame resistant / UV-resistant
This text is machine translated.
This text is machine translated.
What kind of Conduits are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
