Name: Fluke Networks 4955095 DSX2-ADD-R Remote unit / main unit extension 1 pc(s)
Brand: Fluke Networks
SKU: 3841434
Availability: BackOrder

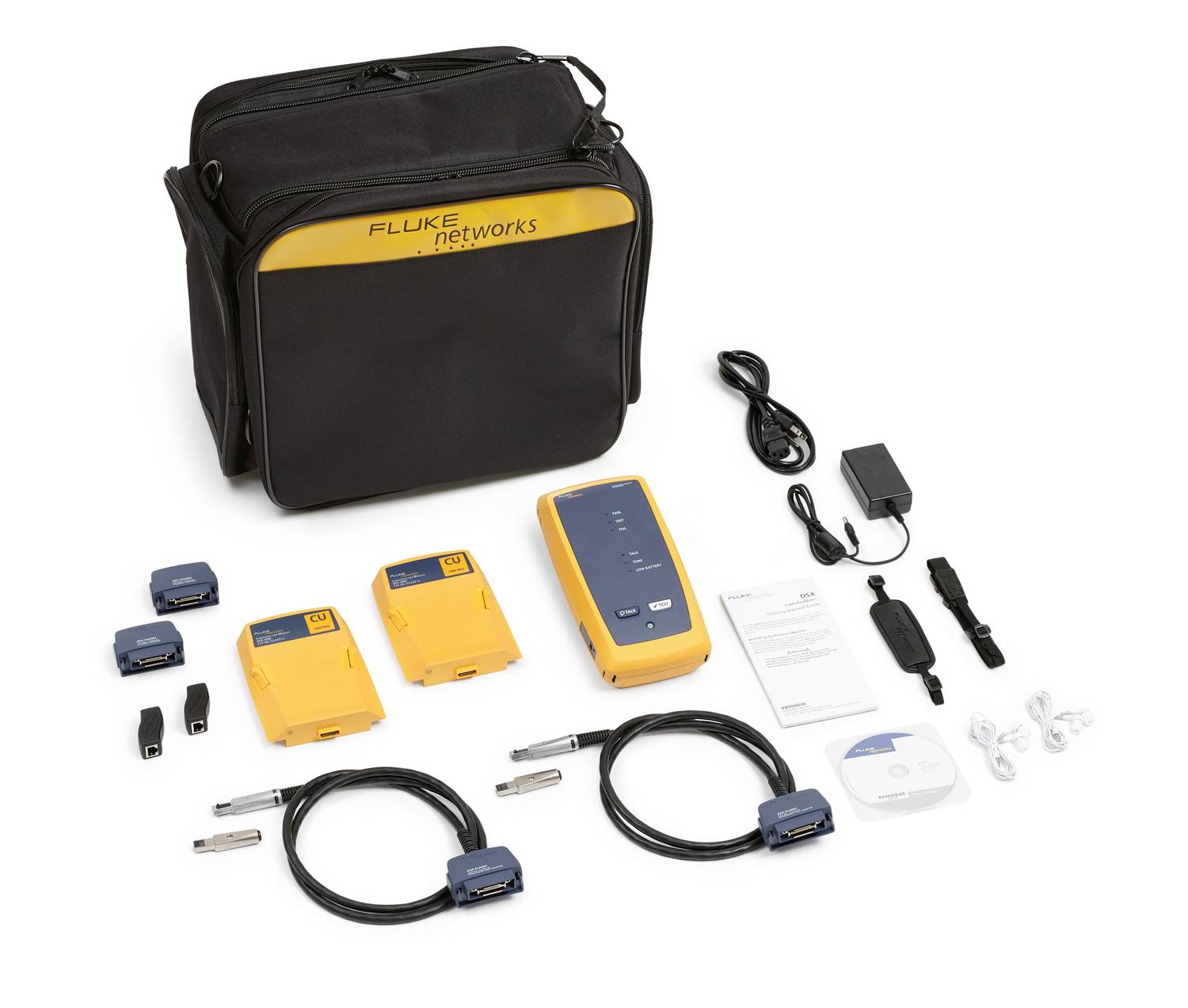

Fluke Networks test kit in a carrying case, with handheld tester, adapters, cables, charger, and accessories laid out on a white background.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26,505.00 / piece)

€ 26,505.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

1 GHz DSX-5000 CableAnalyzer Add-on Kit with Remote Device: (2) DSX-5000 Copper Modules + Remote Versiv2 Device

Extends an existing versive main unit into a complete main and remote copper test set
Certified twisted pair cables up to category 6A / class FA (1000 MHz)
Fast testing time: CAT 6A certification in just 10 seconds
ProjX™ management system for efficient project management and tracking
Graphical error source analysis (HDTDX and HDTDR) for accurate fault location

Technical specifications

Power supply: Li-ion battery pack (7.2 V)
Battery life: Approx. 8 hours
Charging time: 4 hours (from 10% to 90%)
Operating temperature: 0 °C to 45 °C
Display: LED status indicators for connection and test status (operation via main unit)
Interfaces: Module bay, power supply connection, USB

Product type: Remote unit / main unit extension

Type: Versiv2 remote mainframe for measurement/certification

Weight: 1.28 kg

Calibration service: Factory calibration (1 year validity)

Reading category: CAT I

Width: 133 mm

Height: 279.4 mm

Length: 66.7 mm

Type: DSX2-ADD-R

: Manufacturer's standards (with certificate)

Documents & Downloads

Datasheet

Datasheet 3841434 Fluke Networks 4955095 DSX2-ADD-R Remote unit / main unit extension 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3841434 Fluke Networks 4955095 DSX2-ADD-R Remote unit / main unit extension 1 pc(s)

Description

The Fluke Networks DSX2-ADD-R is the ideal complement for users who already have a versive mainframe (mainframe). The add-on kit contains one Versiv2 remote device and two DSX-5000 CableAnalyzer modules. This means you can convert your existing equipment into a fully-fledged measurement system for certification of copper cables of the categories 5, 6, 6A and class FA up to 1000 MHz. The advanced Versiv2 platform accelerates the entire certification process and minimizes configuration and data collection errors.

This text is machine translated.
