Name: Fluke Networks 4963838 DSX-CHA-M12-X-S Channel adapter set / measuring instrument accessories 1 pc(s)
Brand: Fluke Networks
SKU: 3841435
Availability: BackOrder

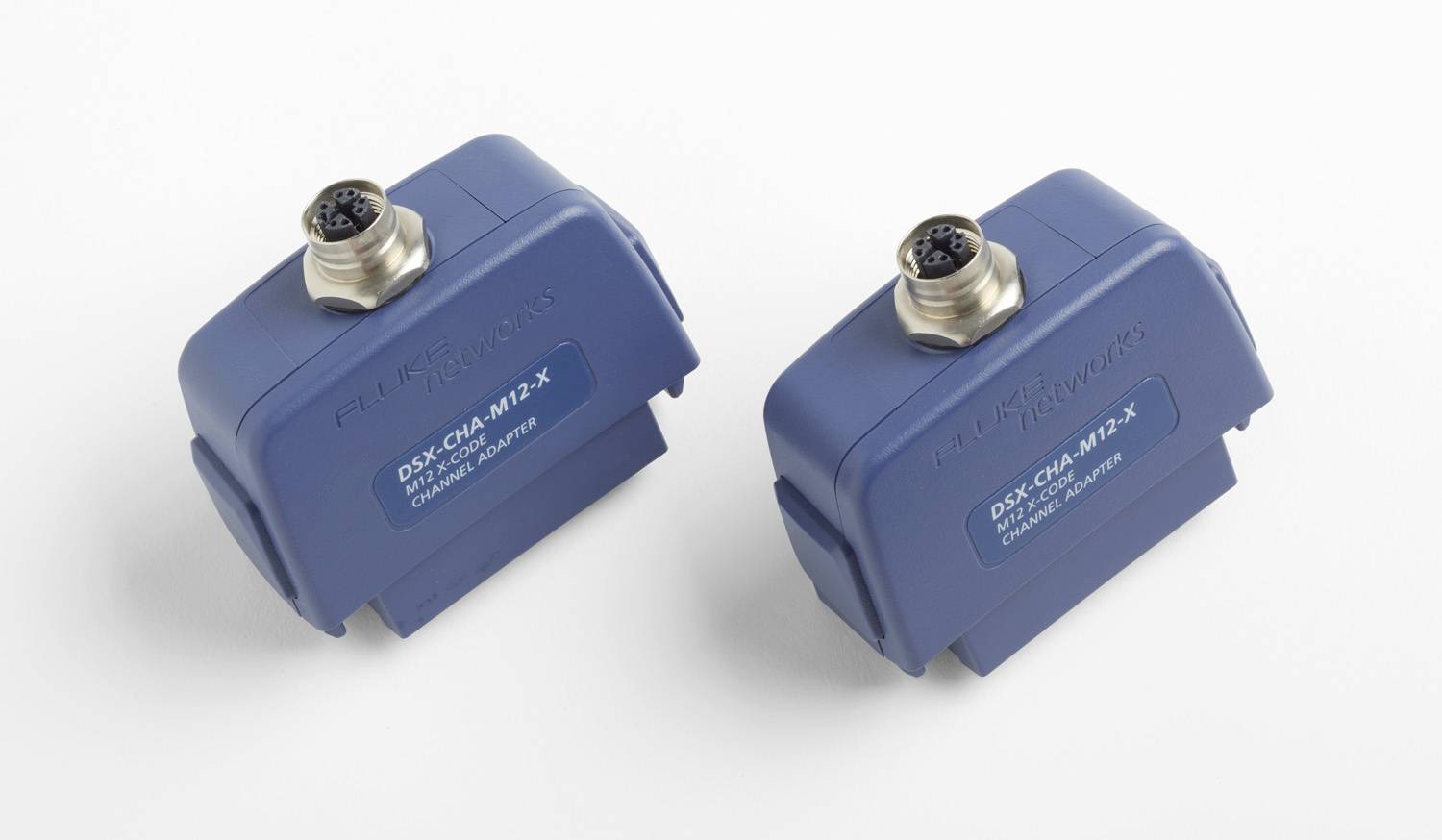

Two blue industrial cable connectors or adapters shown side by side on a white background.

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,735.00 / piece)

€ 1,735.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DSX channel adapter kit for industrial Ethernet networks (M12-X, 8-pin)

Enables measurement and certification of industrial Ethernet connections with M12-X (8-pin) connectors
Supports transmission standards up to category 6A / class EA (up to 10 Gbit/s)
Rugged design especially developed for use in rough industrial environments
Seamless integration with the Fluke Networks Versiv™ / DSX CableAnalyzer™ series (DSX-5000 / DSX-8000)
Precise plug-in face adaptation prevents measurement errors and adapter wear

Technical specifications

Connector Type M12 X-Coding (8-pin)
Performance category CAT 6A / Class EA (ANSI/TIA-568.2-D, ISO/IEC 11801)
Bandwidth up to 500 MHz (DSX-5000 / DSX-8000)
Application area: Industrial Ethernet, factory automation
Housing material: Impact-resistant plastic / metal shielding

Product type: Channel adapter set / measuring instrument accessories

Compatible with: Fluke Networks

Type: Channel adapter (channel adapter) for M12-X (8-pin)

Weight: 0.34 kg

Calibration service: Factory calibration

Reading category: CAT I

Width: 54 mm

Height: 120 mm

Length: 40 mm

Type: DSX-CHA-M12-X-S

: Manufacturer's standards (no certificate)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3841435 Fluke Networks 4963838 DSX-CHA-M12-X-S Channel adapter set / measuring instrument accessories 1 pc(s)

Description

The Fluke Networks DSX-CHA-M12-X-S channel adapter set is the perfect solution for testing and certifying industrial Ethernet networks with shielded 8-pin M12-X connectors. As modern industrial systems are increasingly relying on high-speed CAT 6A infrastructures, these adapters offer a reliable option to test channels (transmission lines) directly according to ANSI/TIA and ISO/IEC standards. The set can be easily attached to the measuring modules of the DSX-5000 or DSX-8000 series and provides for precise, repeatable results of measurement under extreme environmental conditions.
