Fränkische Rohrwerke 19021110 KabuflexS1103m-St sw Conduit Black 94 mm 3 m
Product type
Conduit
Content
3 m
Material
Polyethylene (PE)
Conduit features
halogen-free
smooth inner lining
Flexible
pressure-resistant
high tightness
Inside diameter
94 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Plastic
- Material quality: Polyethylene (PE)
- Surface protection: Untreated
- Polished surface: No.
- Transparent: No.
- Colour, black
- Pipe inner color: Black
- Design: Rigid
- Shape: Corrugated on the outside, smooth on the inside
- 94 mm internal diameter
- Outer diameter: 110 mm
- Product type
Conduit
- Content
3 m
- Factory colour
Black
- Material
Polyethylene (PE)
- Conduit features
halogen-free
smooth inner lining
Flexible
pressure-resistant
high tightness
- Inside diameter
94 mm
- Outside Ø
110 mm
- Max. temperature
90 °C
- Min. temperature
-5 °C
- Length
3 m
- Manufacturer part #
19021110
- Type
KabuflexS1103m-St sw
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407198 Fränkische Rohrwerke 19021110 KabuflexS1103m-St sw Conduit Black 94 mm 3 m
User & Safety Instructions
User & Safety Instructions 3407198 Fränkische Rohrwerke 19021110 KabuflexS1103m-St sw Conduit Black 94 mm 3 m
Description

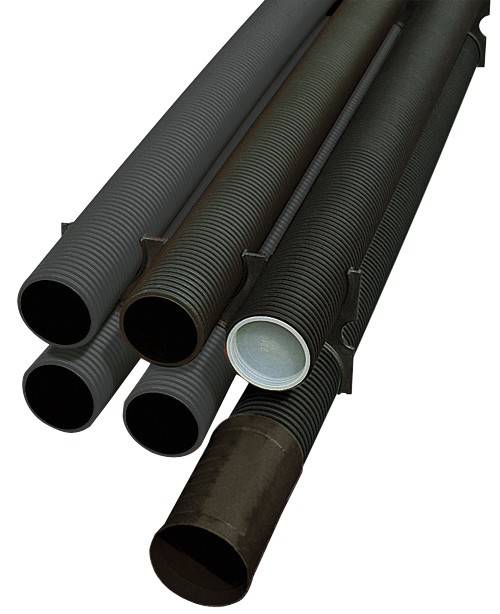

Kabuflex® S is a rigid PE cable protection tube, in black color, halogen-free, in composite design, corrugated on the outside, Smooth and flexible inside, in bars to 3M, double-sided double-insertion sleeve (sand-proof). This cable protection tube is used as a protective or empty pipe for heavy pressure demands, e.g. on roads, places, in the ground, etc. The advantage is the high compressive strength. Special double-clamping sleeves connect the tubes sand-proof (SD). A waterproof connection up to 0.5 bar is achieved with the WD profile sealing ring. DIN EN 61386-24 Minimum pressure resistance 450N Temperature resistance -5°C to 90°C.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m corrugated conduit
