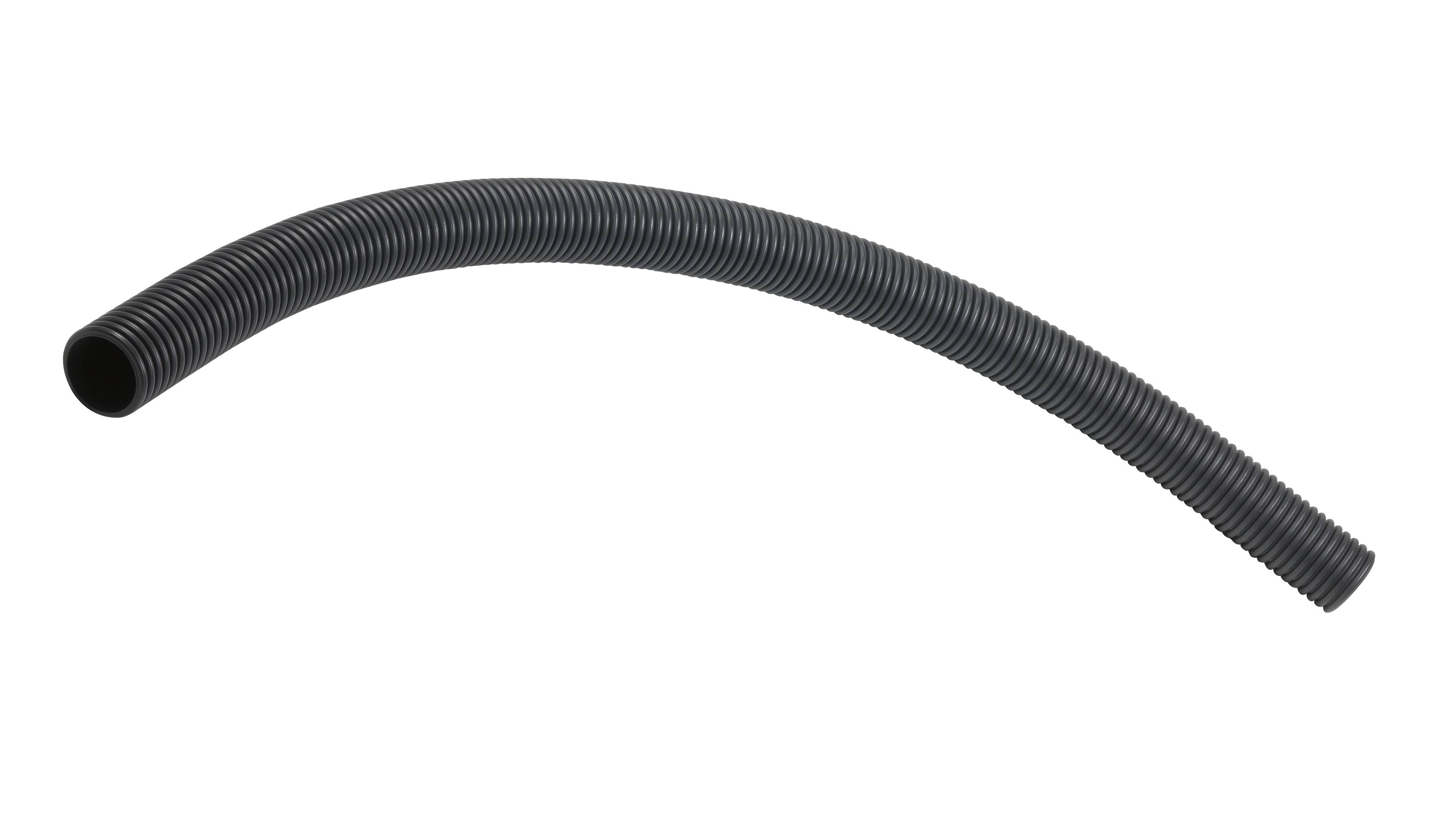

Fränkische Rohrwerke 19080145 19080145 Bend Black 125 mm 90-degree 1 pc(s)
Product type
Bend
Content
1 pc(s)
Material
Polyethylene (PE)
Conduit features
pressure-resistant
Inside diameter
125 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Plastic
- Material quality: Polyethylene (PE)
- Surface protection: Untreated
- Polished surface: No.
- Colour, black
- Pipe inner color: Black
- Design: Rigid
- Shape: Corrugated on the outside, smooth on the inside
- 125 mm internal diameter
- Outer diameter: 145 mm
- Angle of sheet: 90 °
- Inner radius 1100 mm
- Shock resistance according to EN 61386-24: Normal
- Compressive strength according to EN 61386-24: Type 450
- Halogen-free: Yes
- Product type
Bend
- Content
1 pc(s)
- Dim
(Ø) 145 mm
- Factory colour
Black
- Material
Polyethylene (PE)
- Angled
90-degree
- Conduit features
pressure-resistant
- Inside diameter
125 mm
- Outside Ø
145 mm
- Max. temperature
90 °C
- Min. temperature
-5 °C
- Manufacturer part #
19080145
- Type
19080145
- (Ø)
145 mm
- Material (details)
Plastic
- Type
rigid
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3134259 Fränkische Rohrwerke 19080145 19080145 Bend Black 125 mm 90-degree 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3134259 Fränkische Rohrwerke 19080145 19080145 Bend Black 125 mm 90-degree 1 pc(s)
Description
Kabuflex-arm 90° is a connecting sheet in composite construction made of PE, in color black. This arc is used for small bending radii and in tight laying conditions for Kabuflex® S rod tubes. The advantage is the high compressive strength. Special double-clamping sleeves connect the sheets and tubes sand-proof (SD). A waterproof connection up to 0.5 bar is achieved with the WD profile sealing ring. DIN EN 61386-24 Minimum pressure resistance 450N Temperature resistance -5°C to 90°C.
This text is machine translated.
This text is machine translated.
