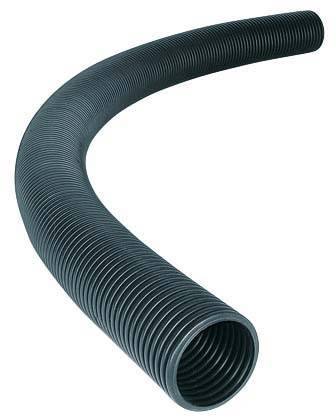

Image similar
Fränkische Rohrwerke 19080160 Kabuflex #19080160 Bend Black 137 mm 90-degree 1 pc(s)
Product type
Bend
Content
1 pc(s)
Material
Plastic
Conduit features
halogen-free
Inside diameter
137 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: Rigid
- Shape: Curled on the outside, smooth on the inside
- Inner radius 1100 mm
- Surface: Untreated
- Material quality: Polyethylene (PE)
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Black
- Material
Plastic
- Angled
90-degree
- Conduit features
halogen-free
- Inside diameter
137 mm
- Outside Ø
160 mm
- Manufacturer part #
19080160
- Type
Kabuflex #19080160
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2297273 Fränkische Rohrwerke 19080160 Kabuflex #19080160 Bend Black 137 mm 90-degree 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2297273 Fränkische Rohrwerke 19080160 Kabuflex #19080160 Bend Black 137 mm 90-degree 1 pc(s)
Description
Kabuflex arc 90° is a composite connection arc made of PE, in black. This sheet is used for small bending radii and in confined installation conditions of Kabuflex S rod tubes. The advantage lies in the high pressure resistance. Special double plug sleeves connect the arches and pipes sandproof (SD). A waterproof connection of up to 0.5 bar is achieved with WD profile seal. DIN EN 61386-24 Minimum pressure strength 450N Temperature resistance -5°C to 90°C.
This text is machine translated.
This text is machine translated.
