Fränkische Rohrwerke 19210090 KabuflexRplus90 sw Conduit Black 75 mm 50 m
EAN:
Part number:
Item no:
Product type
Conduit
Content
50 m
Material
Polyethylene (PE)
Conduit features
Flexible
Inside diameter
75 mm
Datasheet (PDF)
Technical specifications
- Material: Plastic
- Material quality: Polyethylene (PE)
- Surface protection: Untreated
- Polished surface: No.
- Transparent: No.
- Colour, black
- Pipe inner color: Green
- Design: Flexible
- Shape: Corrugated on the outside, smooth on the inside
- 75 mm internal diameter
- Outer diameter: 90 mm
- Shock resistance according to EN 61386-24: Normal
- Compressive strength according to EN 61386-24: Type 450
- Product type
Conduit
- Content
50 m
- Factory colour
Black
- Material
Polyethylene (PE)
- Conduit features
Flexible
- Inside diameter
75 mm
- Outside Ø
90 mm
- Length
50 m
- Manufacturer part #
19210090
- Type
KabuflexRplus90 sw
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407221 Fränkische Rohrwerke 19210090 KabuflexRplus90 sw Conduit Black 75 mm 50 m
User & Safety Instructions
User & Safety Instructions 3407221 Fränkische Rohrwerke 19210090 KabuflexRplus90 sw Conduit Black 75 mm 50 m
Description

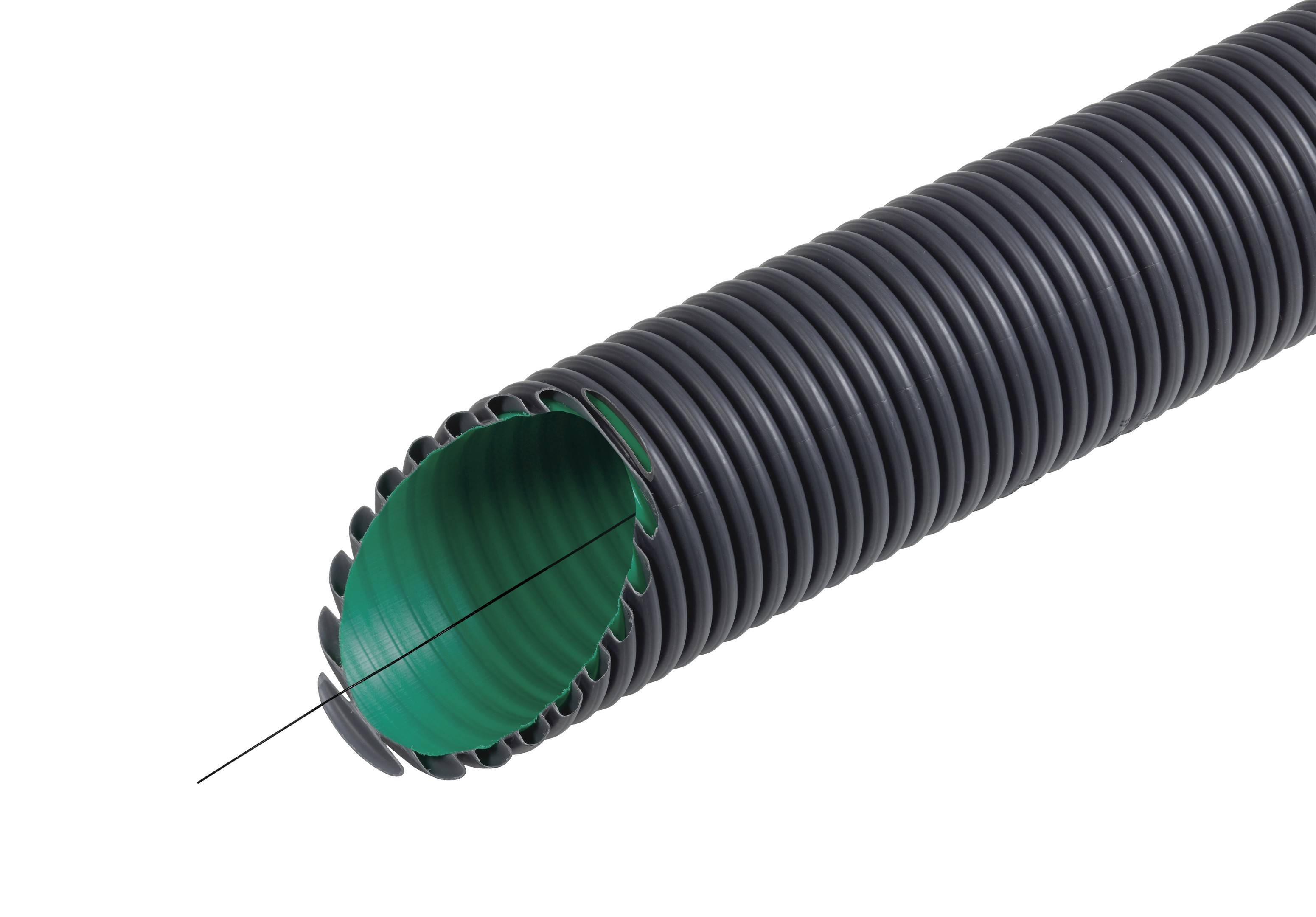

Kabuflex® R plus Type 450 is a flexible PE cable protection tube, in black color, halogen-free, in composite design with an optimized green inner skin for fast cable entry. Another feature is the improved stability through high-quality material usage. It is corrugated on the outside and has a transparent double plug-on on one side (sand-proof).
This cable protection tube is used, e.g. under roads, places, in the ground, etc. Special double-clamping sleeves connect the tubes Sandproof (SD), a waterproof connection (WD) up to 0.5 bar is achieved with profile sealing ring. The Kabuflex® R plus Type 450 is supplied with a feed cord.
The advantage is the high compressive strength. VDE 0605
DIN EN 61386-24
Pressure stress type 450
Normal impact strength
Classification code N450
This text is machine translated.
This cable protection tube is used, e.g. under roads, places, in the ground, etc. Special double-clamping sleeves connect the tubes Sandproof (SD), a waterproof connection (WD) up to 0.5 bar is achieved with profile sealing ring. The Kabuflex® R plus Type 450 is supplied with a feed cord.
The advantage is the high compressive strength. VDE 0605
DIN EN 61386-24
Pressure stress type 450
Normal impact strength
Classification code N450
This text is machine translated.
Scope of delivery
- 1 x 50 m corrugated conduit
